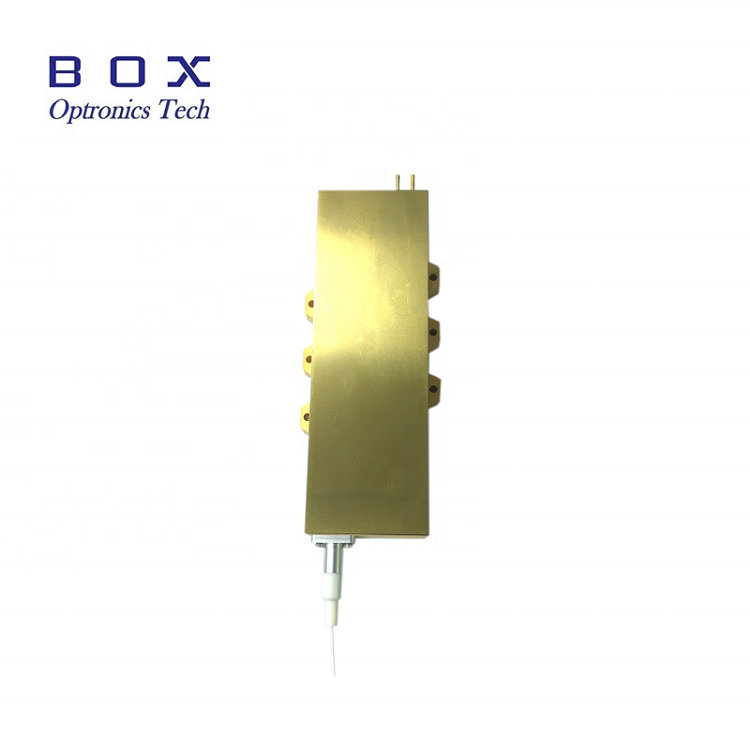

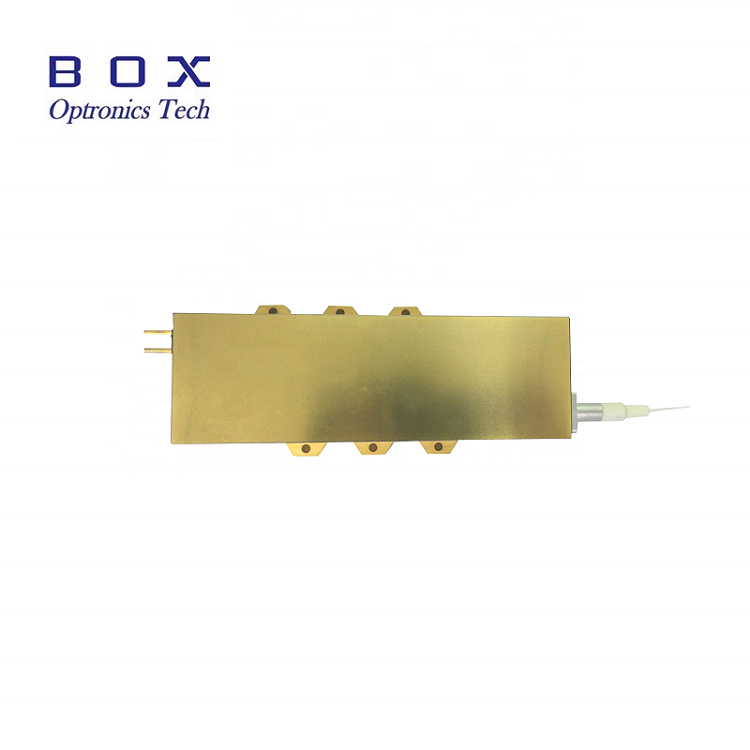

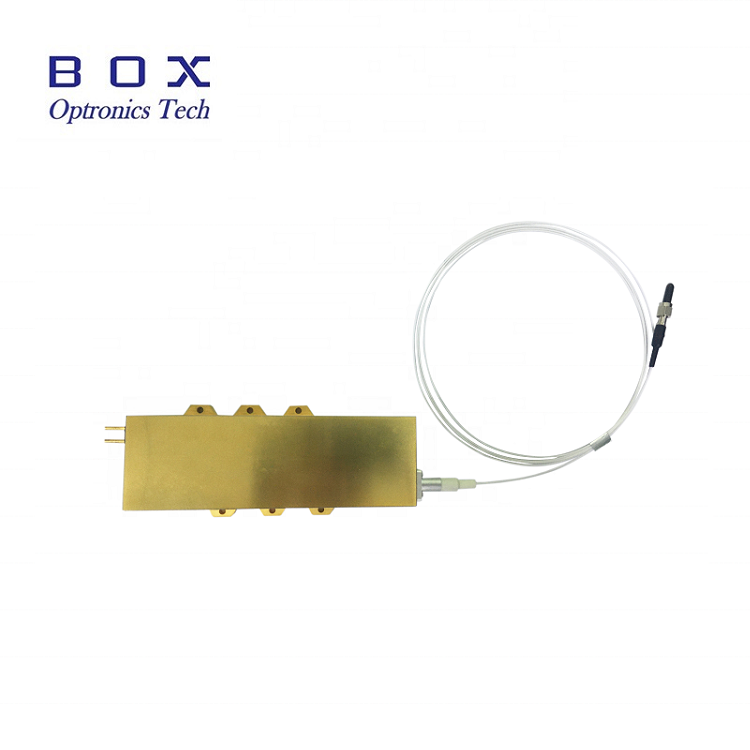

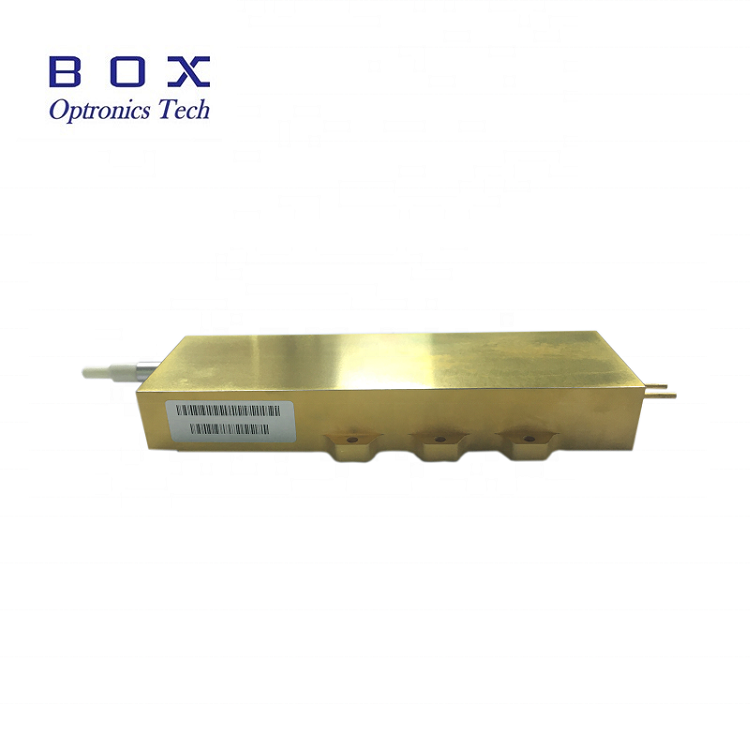

975nm 976nm 130W Fiber Coupled Diode Laser

975nm 976nm 130W Fiber Coupled Diode Laser is Wavelength-Stabilized laser diode, it can stabilize and shape the emission spectrum of high power laser diodes for numerous applications including solid-state laser pumping, fiber laser pumping, high-resolution Raman spectroscopy and other applications requiring high-power temperature-stabilized narrow-linewidth laser source.

Send Inquiry

Product Description

1. Summary of 975nm 976nm 130W Fiber Coupled Diode Laser

975nm 976nm 130W Fiber Coupled Diode Laser is Wavelength-Stabilized laser diode, it can stabilize and shape the emission spectrum of high power laser diodes for numerous applications including solid-state laser pumping, fiber laser pumping, high-resolution Raman spectroscopy and other applications requiring high-power temperature-stabilized narrow-linewidth laser source.

2. Introduction of 975nm 976nm 130W Fiber Coupled Diode Laser

975nm 976nm 130W Fiber Coupled Diode Laser is Wavelength-Stabilized laser diode, it can stabilize and shape the emission spectrum of high power laser diodes for numerous applications including solid-state laser pumping, fiber laser pumping, high-resolution Raman spectroscopy and other applications requiring high-power temperature-stabilized narrow-linewidth laser source.

3. Features of 975nm 976nm 130W Fiber Coupled Diode Laser

975nm Single emitting laser;

130W High output power;

106.5μm 0.22NA Fiber;

RoHS Compliance.

4. Application of 975nm 976nm 130W Fiber Coupled Diode Laser

Medical care;

Printing;

Material processing;

Pump source.

5. Electro-Optical Characteristics(T=25℃) of 975nm 976nm 130W Fiber Coupled Diode Laser

Parameter Symbol Min. Typ. Max. Unit
Operating output power Pout 120.0 130.0 - W
Range of available wavelength λ 971 976 981 nm
Spectral width @ FWHM Δλ - 4.5 - nm
Threshold current Ith - 0.5 - A
Operating current at Pout IOP - 12.0 13.0 A
Operating voltage at Pout VOP - 25.5 - V
Power conversion efficiency - - 45 - %
Wavelength temperature coefficient Δλ/ΔT - 0.3 - nm/℃
Slope efficiency η - 12.0 - W/A
Fiber bend radius r 37.5 - - mm
Fiber core diameter DCOR - 106.5 - µm
1064ISO - - 30 - dB
Fiber numerical aperture NA - 0.22 - -
Beam numerical aperture(95% power) Lf - 0.18 - NA
Fiber length Lf   1.5 - m
Connector type - Null or SMA905 -

6. Package drawing&PIN-OUT Definition(Unit:mm) of 975nm 976nm 130W Fiber Coupled Diode Laser

7. Deliver,Shipping And Serving of 975nm 976nm 130W Fiber Coupled Diode Laser

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What is the wavelength you need?

A: We have 793nm 808nm 915nm 975nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
