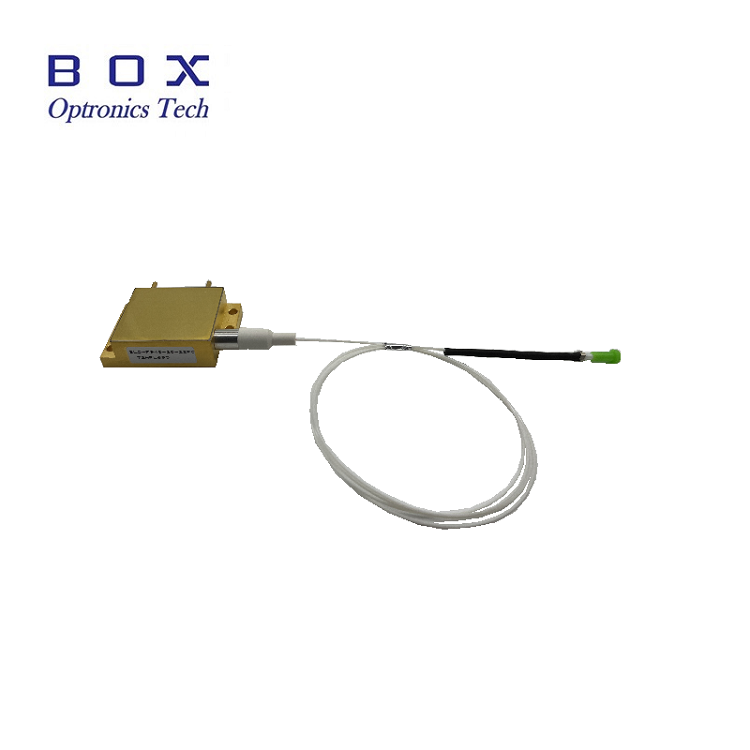

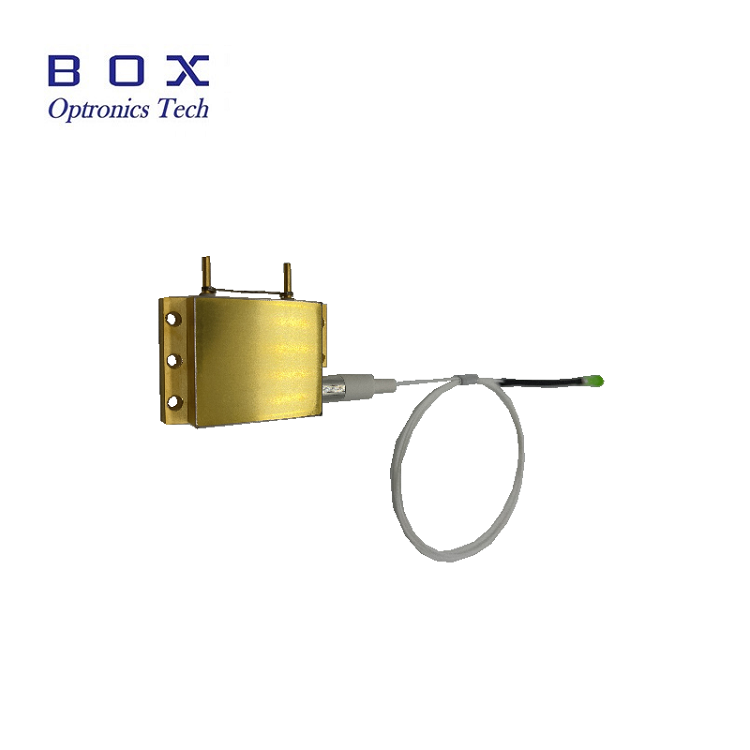

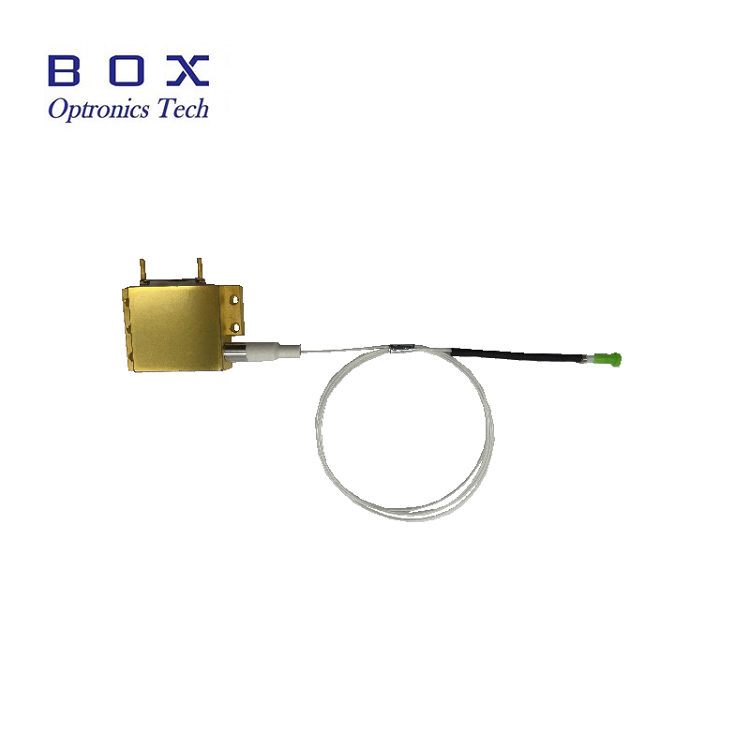

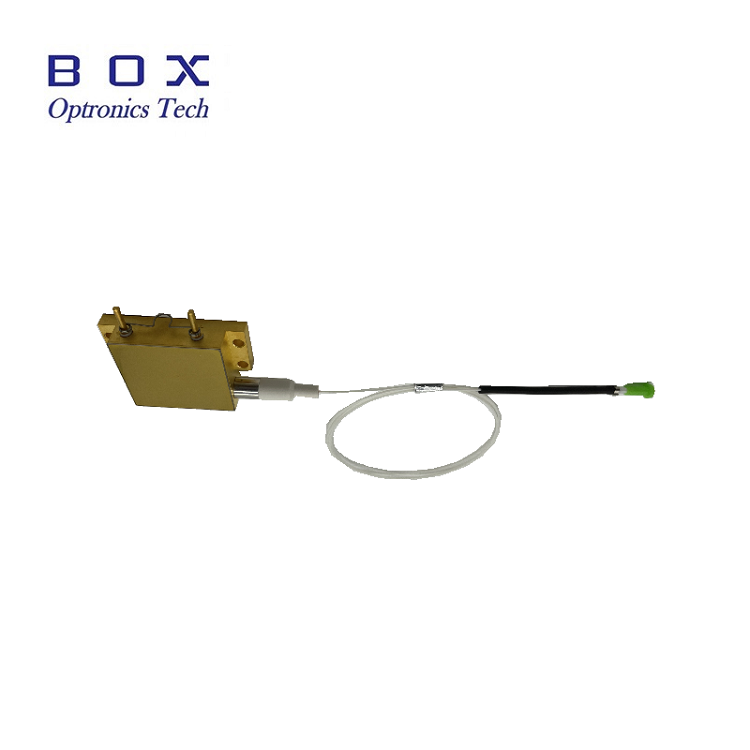

The 808nm 25W Diode Laser Fiber Coupled For Pump Source is widely used in lighting, pumping and material processing. BoxOptronics has particular emitters combining patent and output power of 808nm fiber-coupled diode laser can be up to 20W. We can also customize wavelength and out power according to your requirements.
The 808nm 25W fiber coupled diode laser is widely used in lighting, pumping and material processing. BoxOptronics has particular emitters combining patent and output power of 808nm fiber-coupled diode laser can be up to 25W. We can also customize wavelength and out power according to your requirements.
The 808nm 25W fiber coupled diode laser is widely used in lighting, pumping and material processing. BoxOptronics has particular emitters combining patent and output power of 808nm fiber-coupled diode laser can be up to 25W. We can also customize wavelength and out power according to your requirements.
808nm Single emitting laser;
25W Output power;
200/220μm or 105/125um 0.22NA Fiber;
High brightness;
RoHS Compliance.
Laser pumping;
Medical use;
Material processing.
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Operating output power | Pout | 25.0 | - | - | W |
| Range of available wavelength | λ | 803 | 808 | 813 | nm |
| Spectral width @ FWHM | Δλ | - | 3.5 | - | nm |
| Threshold current | Ith | - | 1.2 | 1.5 | A |
| Operating current at Pout | IOP | - | 11.5 | 12.0 | A |
| Operating voltage at Pout | VOP | - | 5.6 | - | V |
| Power conversion efficiency | - | - | 40 | - | % |
| Wavelength temperature coefficient | Δλ/ΔT | - | 0.3 | - | nm/℃ |
| Slope efficiency | η | - | 2.7 | - | W/A |
| Fiber bend radius | r | 37.5 | - | - | mm |
| Fiber core/cladding diameter | DCOR | - | 200/220 | - | µm/µm |
| Fiber buffer diameter | DBUF | - | 320 | - | µm |
| Fiber numerical aperture | NA | - | 0.22 | - | - |
| Beam numerical aperture(90% power) | NA | - | 0.18 | - | - |
| Fiber length | Lf | - | 1.2 | - | m |
| Connector type | - | Null, SMA905 | - | ||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: We have 793nm 808nm 915nm 975nm laser diode.
Q: What is the requirement for the output power?A: Box optronics can customize according to your requirements.
