975nm 10W Multimode Fiber Coupled Laser Diode

The 975nm 10W Multimode fiber coupled laser diode is the latest solution in our L4 platform for the fiber laser pumping market. The laser diode design, which leverages the L4 footprint, offers a high degree of feedback protection from any fiber laser wavelength. This feature allows end users to operate the fiber laser in an environment virtually free from the risk of feedback to the diode laser, resulting in a less costly solution than a traditional isolation system. The 975nm 10W Multimode fiber coupled laser diode offer 10 W of power from a 105 µm fiber. In addition, the 975nm 10W Multimode fiber coupled laser diode offer both high brightness and a small footprint, with consistent high reliability in a cost-effective solution.

Send Inquiry

Product Description

1. Summary of 975nm 10W Multimode fiber coupled laser diode

The 975nm 10W Multimode fiber coupled laser diode is the latest solution in our L4 platform for the fiber laser pumping market. The laser diode design, which leverages the L4 footprint, offers a high degree of feedback protection from any fiber laser wavelength. This feature allows end users to operate the fiber laser in an environment virtually free from the risk of feedback to the diode laser, resulting in a less costly solution than a traditional isolation system. The 975nm 10W Multimode fiber coupled laser diode offer 10 W of power from a 105 µm fiber. In addition, the 975nm 10W Multimode fiber coupled laser diode offer both high brightness and a small footprint, with consistent high reliability in a cost-effective solution.

2. Introduction of 975nm 10W Multimode fiber coupled laser diode

The 975nm 10W Multimode fiber coupled laser diode is the latest solution in our L4 platform for the fiber laser pumping market. The laser diode design, which leverages the L4 footprint, offers a high degree of feedback protection from any fiber laser wavelength. This feature allows end users to operate the fiber laser in an environment virtually free from the risk of feedback to the diode laser, resulting in a less costly solution than a traditional isolation system. The 975nm 10W Multimode fiber coupled laser diode offer 10 W of power from a 105 µm fiber. In addition, the 975nm 10W Multimode fiber coupled laser diode offer both high brightness and a small footprint, with consistent high reliability in a cost-effective solution.

3. Features of 975nm 10W Multimode fiber coupled laser diode

Based on single fire spot laser module;

High output power 10W;

High stability;

0.22NA 105μmcore multimode fiber;

Parallel weld 2-Pin sealed package;

Standard central wavelength 915nm/940nm/975nm.

4. Application of 975nm 10W Multimode fiber coupled laser diode

Medical care;

Pump source;

Material processing.

5. Electro-Optical Characteristics(T=25℃) of 975nm 10W Multimode fiber coupled laser diode

Parameter Symbol Min. Typ. Max. Unit
Operating output power Pout 10.0 - - W
Range of available wavelength λ 965 975 985 nm
Spectral width @ FWHM Δλ - 3.5 7.0 nm
Threshold current Ith - 0.55 0.9 A
Operating current at Pout IOP - 11.7 12.5 A
Operating voltage at Pout VOP - 1.75 2.2 V
Power conversion efficiency - - 48 - %
Wavelength temperature coefficient Δλ/ΔT - 0.3 - nm/℃
Slope efficiency η - 0.9 - W/A
Fiber bend radius r 37.5 - - mm
Fiber core diameter DCOR - 105/125 - µm/µm
Fiber buffer diameter DBUF - 250 - µm
Fiber numerical aperture NA - 0.22 - -
Beam numerical aperture(95% power) Lf - 0.15 - NA
Fiber length Lf - 1.5 - m
Connector type - Null, FC/PC, SMA905 -

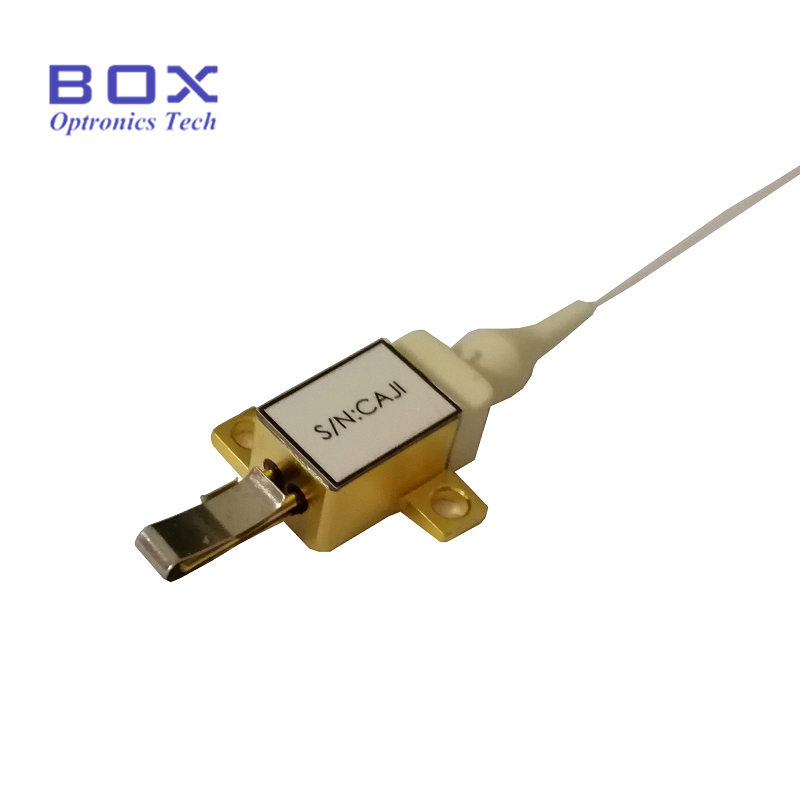

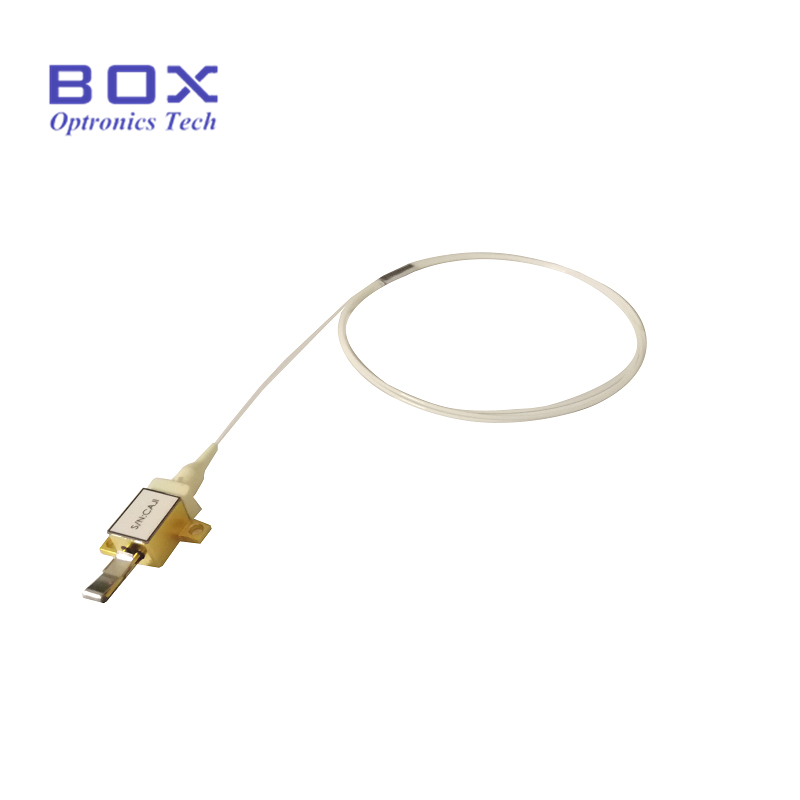

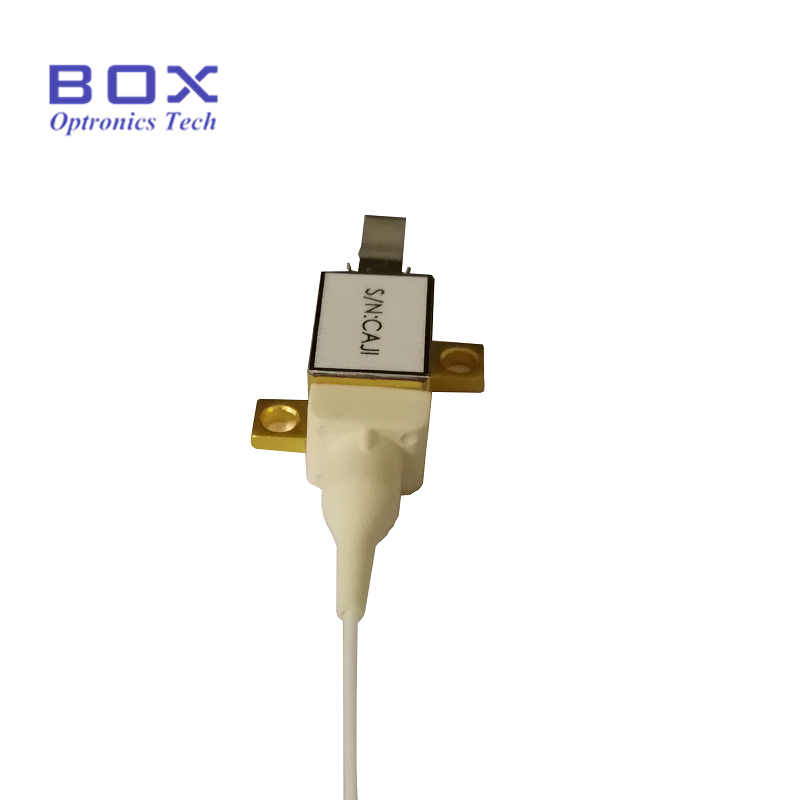

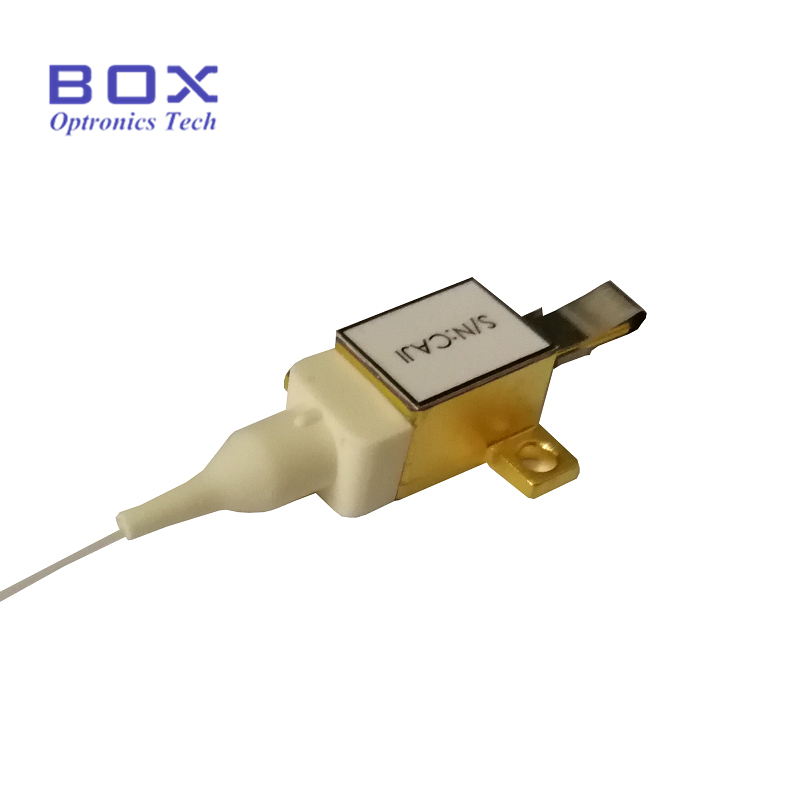

6. Product Details of 975nm 10W Multimode fiber coupled laser diode

  • PIN DESIGNATIONS
    1 LD+
    2 LD-

7. Deliver,Shipping And Serving of 975nm 10W Multimode fiber coupled laser diode

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What is the wavelength you need?

A: We have 793nm 808nm 915nm 975nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
