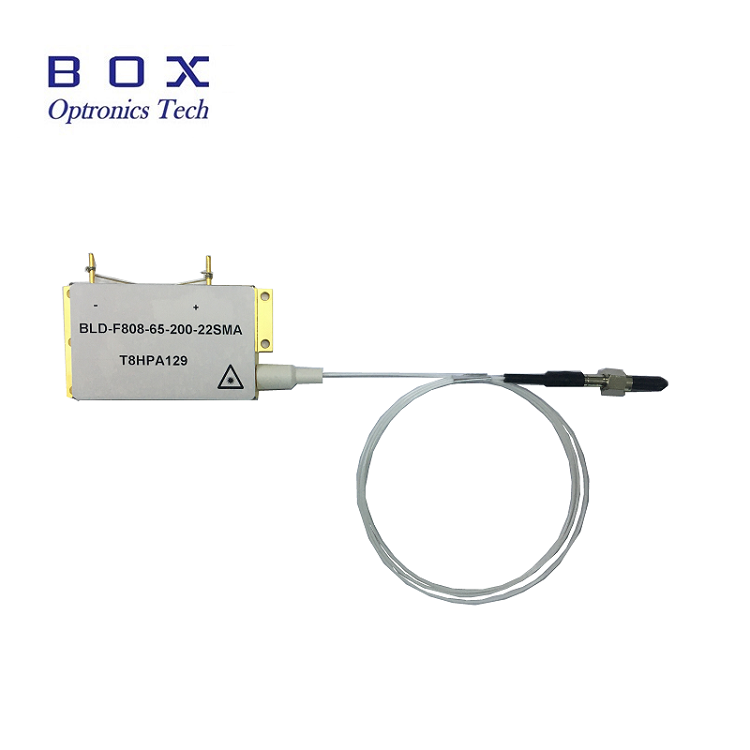

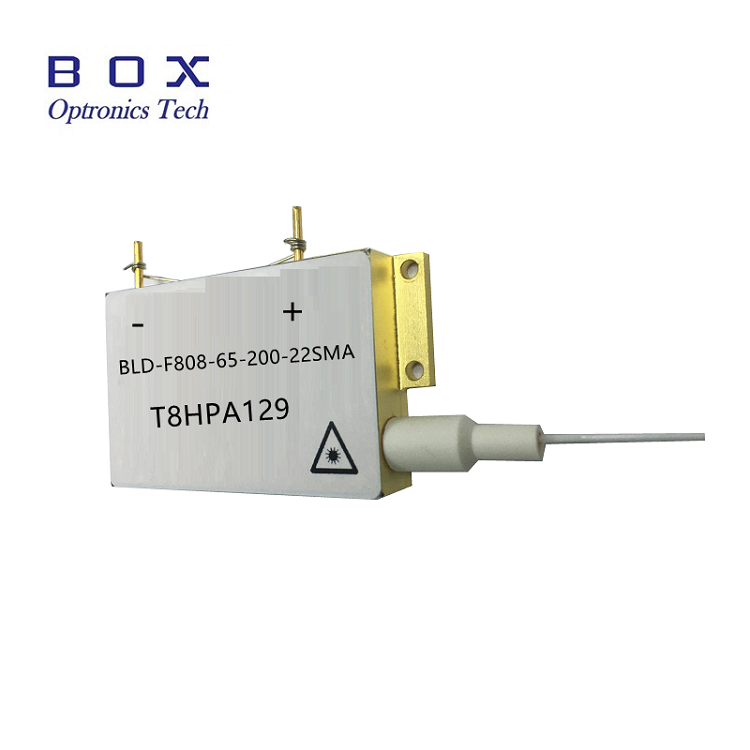

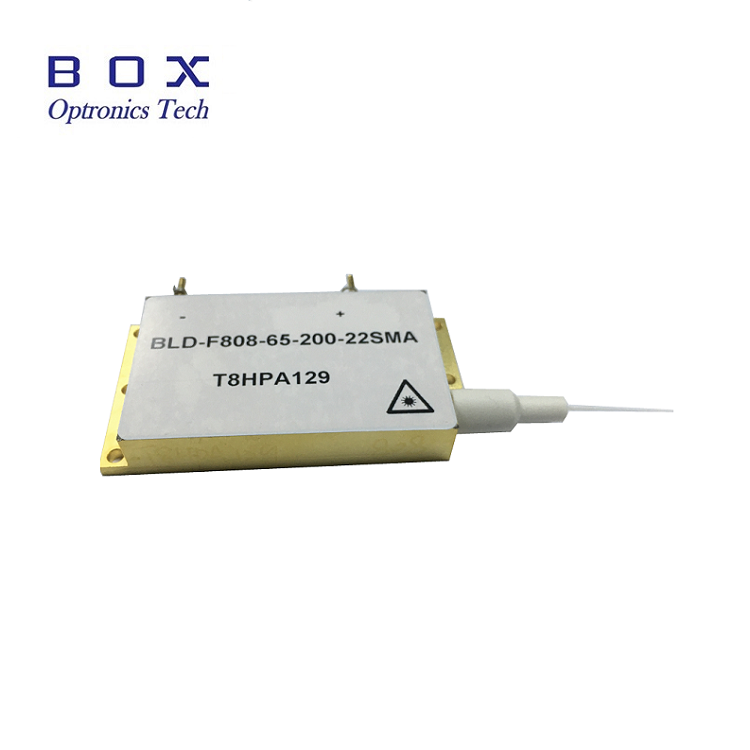

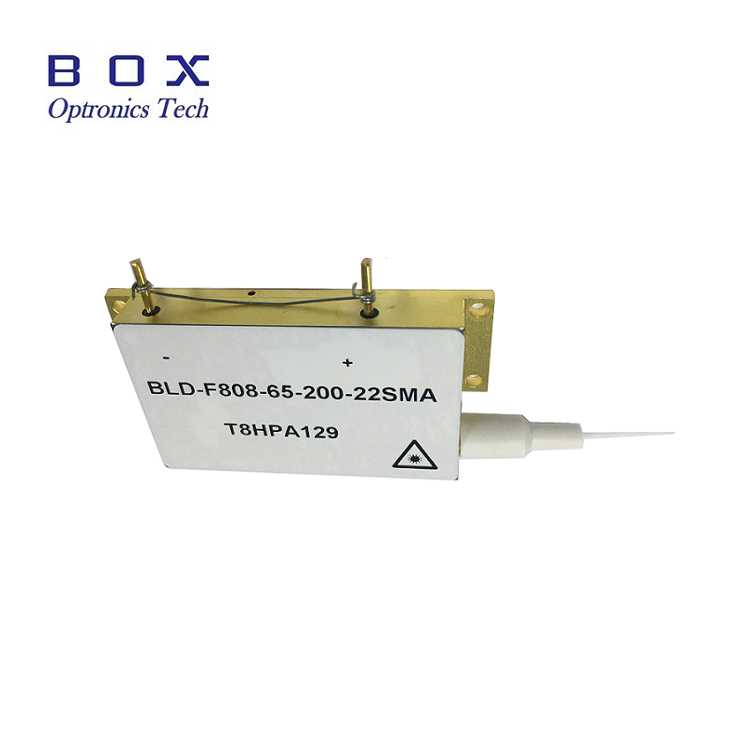

The 915nm 50W Diode Laser For Printing Or Pumping is designed and manufactured by BoxOptronics, It has high-performance and high-reliability requirements for fiber and solid-state laser pumping.
The 915nm 50W Diode Laser is designed and manufactured by BoxOptronics, It has high-performance and high-reliability requirements for fiber and solid-state laser pumping.
The 915nm 50W Diode Laser is designed and manufactured by BoxOptronics, It has high-performance and high-reliability requirements for fiber and solid-state laser pumping.
915nm wavelength;
50W output power;
105µm fiber core diameter;
0.22NA.
Laser pumping;
Medical use;
Material processing.
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Operating output power | Pout | - | 50.0 | - | W |
| Range of available wavelength | λ | 905 | 915 | 925 | nm |
| Spectral width @ FWHM | Δλ | - | 4.0 | 7.0 | nm |
| Threshold current | Ith | - | 0.5 | 0.9 | A |
| Operating current at Pout | IOP | - | 11.5 | 12.5 | A |
| Operating voltage at Pout | VOP | - | 8.5 | 12.0 | V |
| Power conversion efficiency | - | - | 45 | - | % |
| Wavelength temperature coefficient | Δλ/ΔT | - | 0.3 | - | nm/℃ |
| Slope efficiency | η | - | 4.5 | - | W/A |
| Fiber bend radius | r | 37.5 | - | - | mm |
| Fiber core diameter | DCOR | - | 105/125 | - | µm/µm |
| Fiber buffer diameter | DBUF | - | 250 | - | µm |
| Fiber numerical aperture | NA | - | 0.22 | - | - |
| Beam numerical aperture(95% power) | Lf | - | 0.18 | - | NA |
| Fiber length | Lf | - | 1.5 | - | m |
| Connector type | - | Null or SMA905 | - | ||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: We have 793nm 808nm 915nm 975nm laser diode.
Q: What is the requirement for the output power?A: Box optronics can customize according to your requirements.
