915nm 130W Laser Diode 106um Fiber Coupled Module

The 915nm 130W Laser Diode 106um Fiber Coupled Module offer up to 130W output power from a 106um fiber. The diode laser maintains its unparalleled reliability and efficiency by coupling high-brightness, high-power single-emitter diodes with a proprietary optical design for efficient fiber coupling.

Send Inquiry

Product Description

1. Summary of 915nm 130W Laser Diode 106um Fiber Coupled Module

The 915nm 130W Laser Diode 106um Fiber Coupled Module offer up to 130W output power from a 106um fiber. The diode laser maintains its unparalleled reliability and efficiency by coupling high-brightness, high-power single-emitter diodes with a proprietary optical design for efficient fiber coupling.

2. Introduction of 915nm 130W Laser Diode 106um Fiber Coupled Module

The 915nm 130W Laser Diode 106um Fiber Coupled Module offer up to 130W output power from a 106um fiber. The diode laser maintains its unparalleled reliability and efficiency by coupling high-brightness, high-power single-emitter diodes with a proprietary optical design for efficient fiber coupling.

3. Features of 915nm 130W Laser Diode 106um Fiber Coupled Module

915nm Single emitting laser;

130W High output power;

106.5μm 0.22NA Fiber;

RoHS Compliance.

4. Application of 915nm 130W Laser Diode 106um Fiber Coupled Module

Medical care;

Printing;

Material processing;

Pump source.

5. Electro-Optical Characteristics(T=25℃) of 915nm 130W Laser Diode 106um Fiber Coupled Module

Parameter Symbol Min. Typ. Max. Unit
Operating output power Pout - 130.0 - W
Range of available wavelength λ 905 915 925 nm
Spectral width @ FWHM Δλ - 4.5 - nm
Threshold current Ith - 0.5 - A
Operating current at Pout IOP - 12.0 13.0 A
Operating voltage at Pout VOP - 22.0 - V
Power conversion efficiency - - 48 - %
Wavelength temperature coefficient Δλ/ΔT - 0.3 - nm/℃
Slope efficiency η - 8.0 - W/A
Fiber bend radius r 37.5 - - mm
Fiber core diameter DCOR - 106.5 - µm
1064ISO - - 30 - dB
Fiber numerical aperture NA - 0.22 - -
Beam numerical aperture(95% power) Lf - 0.18 - NA
Fiber length Lf - 1.5 - m
Connector type - Null, SMA905 -

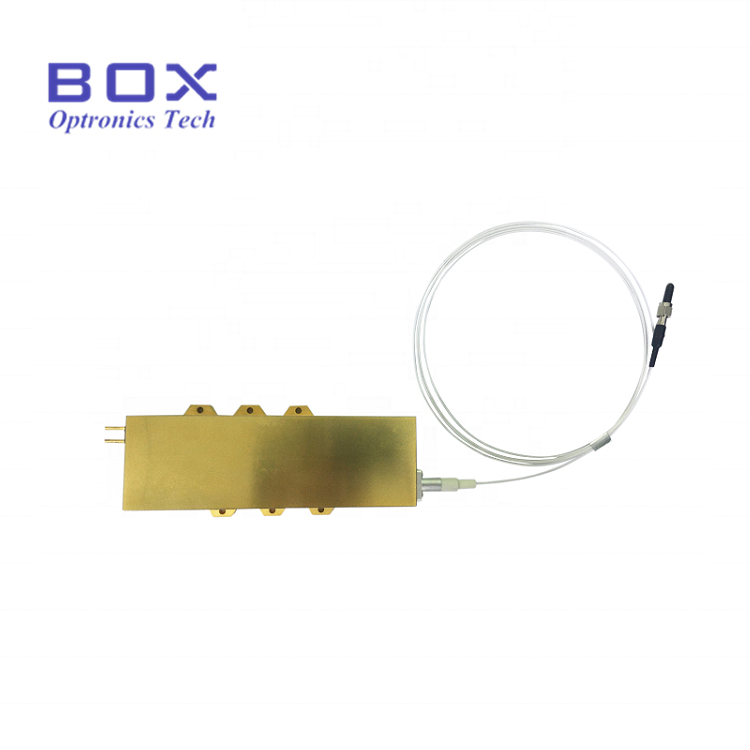

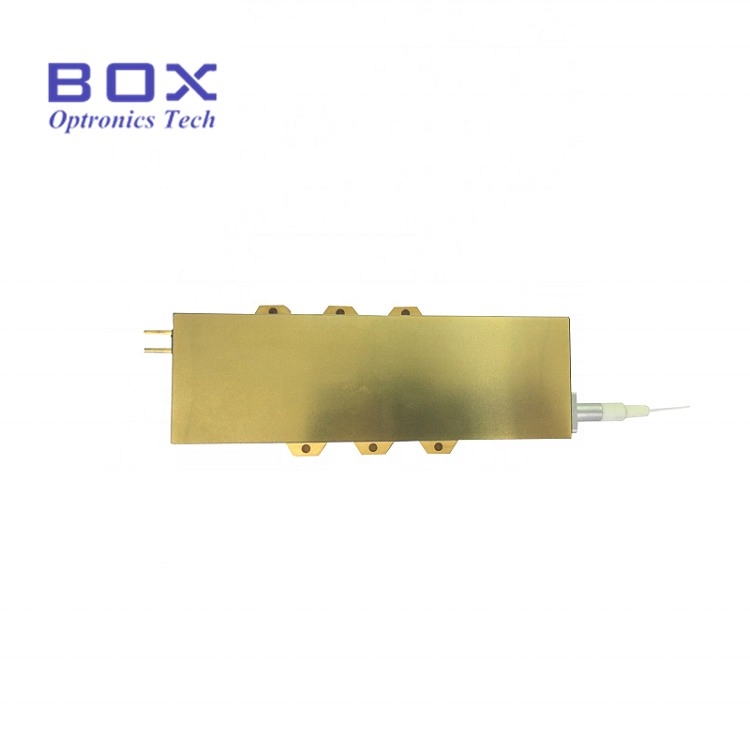

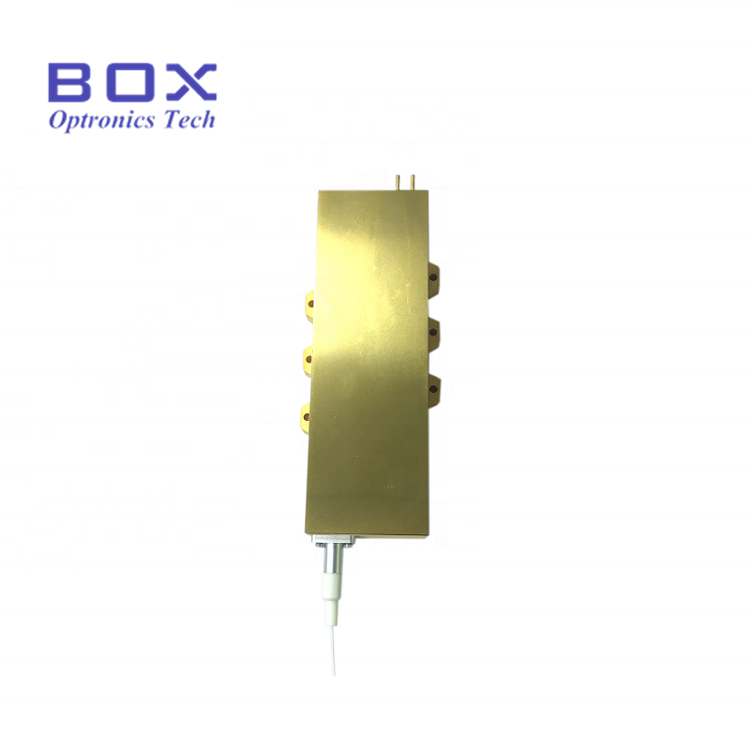

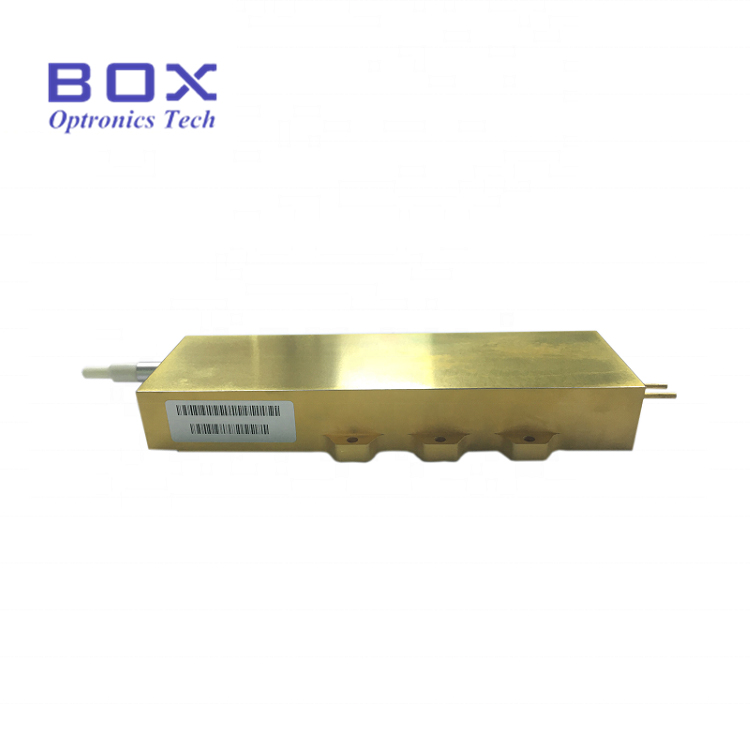

6. Product Details of 915nm 130W Laser Diode 106um Fiber Coupled Module

7. Deliver,Shipping And Serving of 915nm 130W Laser Diode 106um Fiber Coupled Module

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What is the wavelength you need?

A: We have 793nm 808nm 915nm 975nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
