808nm 170W High Power Fiber Coupled Diode Laser

808nm 170W High Power Fiber Coupled Diode Laser is high output power and high coupling efficiency in the industry. With high output power of 170W, 808nm laser diode provides super intense and CW laser light source in laser pumping source, medical, material processing and printing etc. Customized version and systems designed for different fibers are available.

Send Inquiry

Product Description

1. Summary of 808nm 170W High Power Fiber Coupled Diode Laser

808nm 170W High Power Fiber Coupled Diode Laser is high output power and high coupling efficiency in the industry. With high output power of 170W, 808nm laser diode provides super intense and CW laser light source in laser pumping source, medical, material processing and printing etc. Customized version and systems designed for different fibers are available.

2. Introduction of 808nm 170W High Power Fiber Coupled Diode Laser

808nm 170W High Power Fiber Coupled Diode Laser is high output power and high coupling efficiency in the industry. With high output power of 170W, 808nm laser diode provides super intense and CW laser light source in laser pumping source, medical, material processing and printing etc. Customized version and systems designed for different fibers are available.

3. Features of 808nm 170W High Power Fiber Coupled Diode Laser

808nm wavelength;

170W output power;

200/220μm 0.22NA Fiber;

High brightness;

RoHS Compliance.

4. Application of 808nm 170W High Power Fiber Coupled Diode Laser

Medical care;

Printing;

Material processing;

Pump source.

5. Electro-Optical Characteristics(T=25℃) of 808nm 170W High Power Fiber Coupled Diode Laser

Parameter Symbol Min. Typ. Max. Unit
Operating output power Pout - 170 - W
Range of available wavelength λ 803 808 813 nm
Spectral width @ FWHM Δλ - 4.0 - nm
Threshold current Ith - 1.0 1.5 A
Operating current at Pout IOP - 11.0 12.0 A
Operating voltage at Pout VOP - 34.5 - V
Power conversion efficiency - - 45 - %
Wavelength temperature coefficient Δλ/ΔT - 0.35 - nm/℃
Slope efficiency η - 16.0 - W/A
Fiber bend radius r 37.5 - - mm
Fiber core/cladding diameter DCOR - 200/220 - µm/µm
Fiber buffer diameter DBUF - 320 - µm
Fiber numerical aperture NA - 0.22 - -
Beam numerical aperture(90% power) NA - 0.18 - -
Fiber length Lf - 1.5 - m
Connector type - Null or SMA905 -

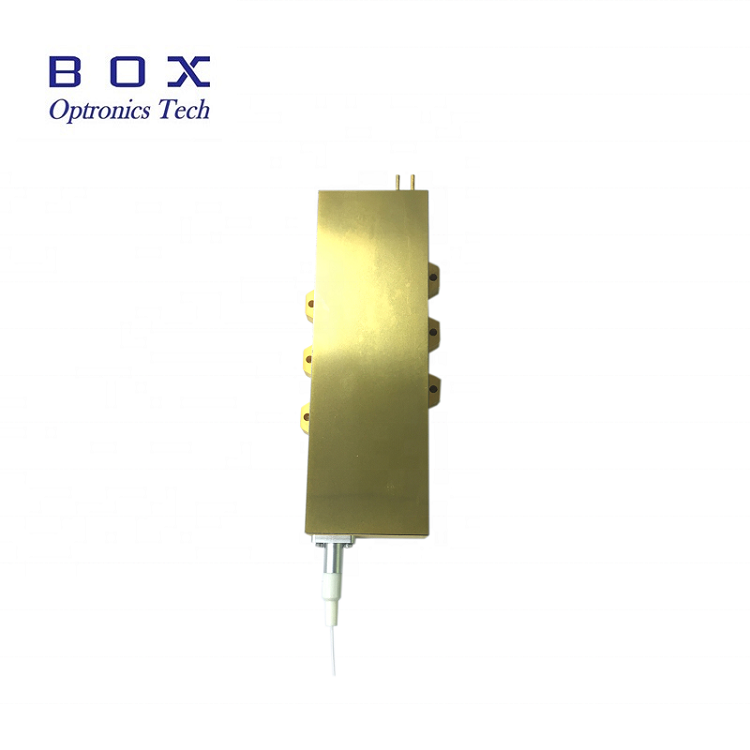

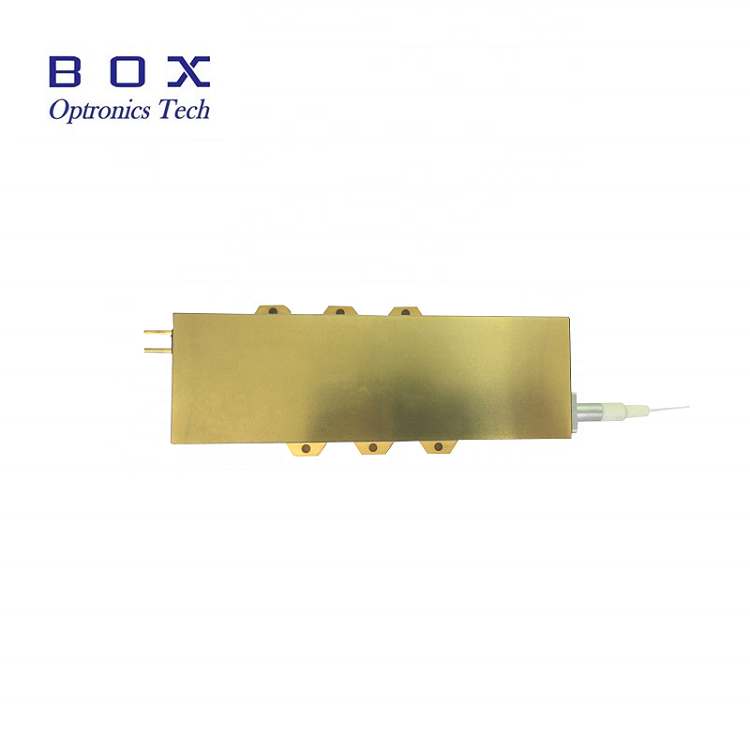

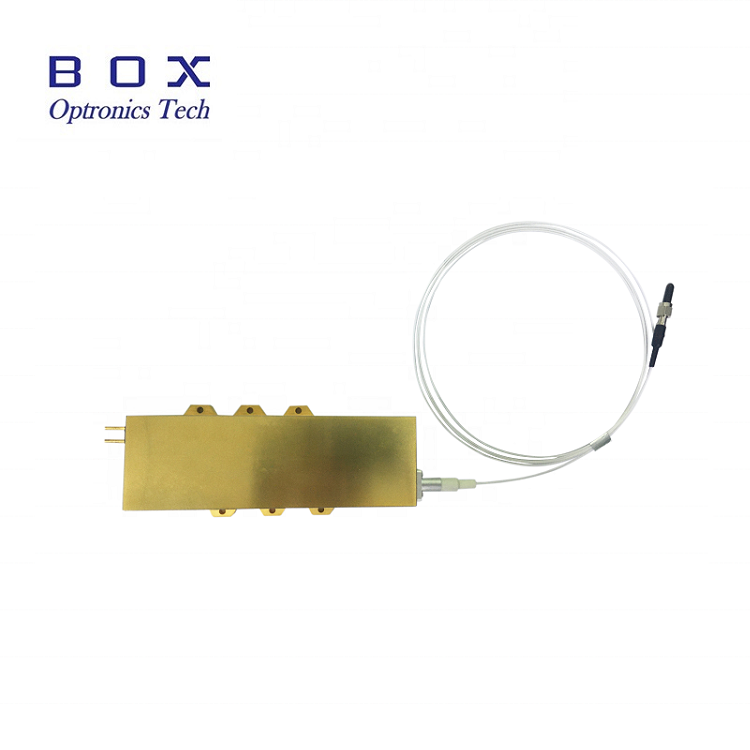

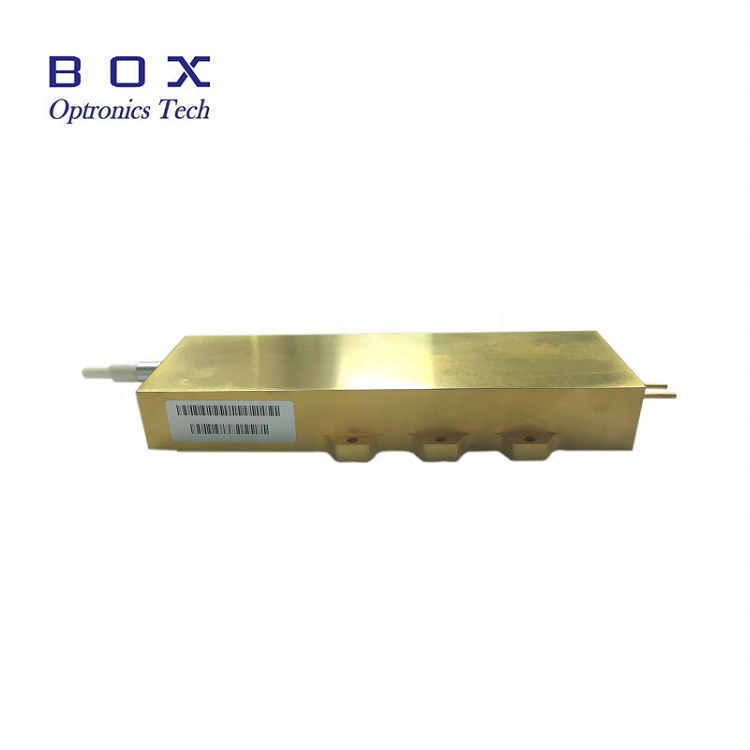

6. Product Details of 808nm 170W High Power Fiber Coupled Diode Laser

7. Deliver,Shipping And Serving of 808nm 170W High Power Fiber Coupled Diode Laser

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What is the wavelength you need?

A: We have 793nm 808nm 915nm 975nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
