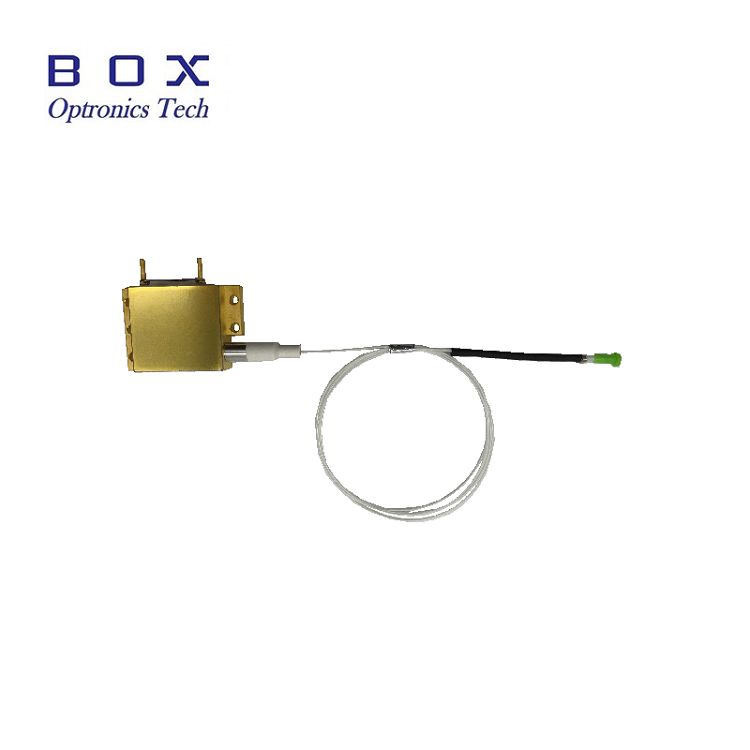

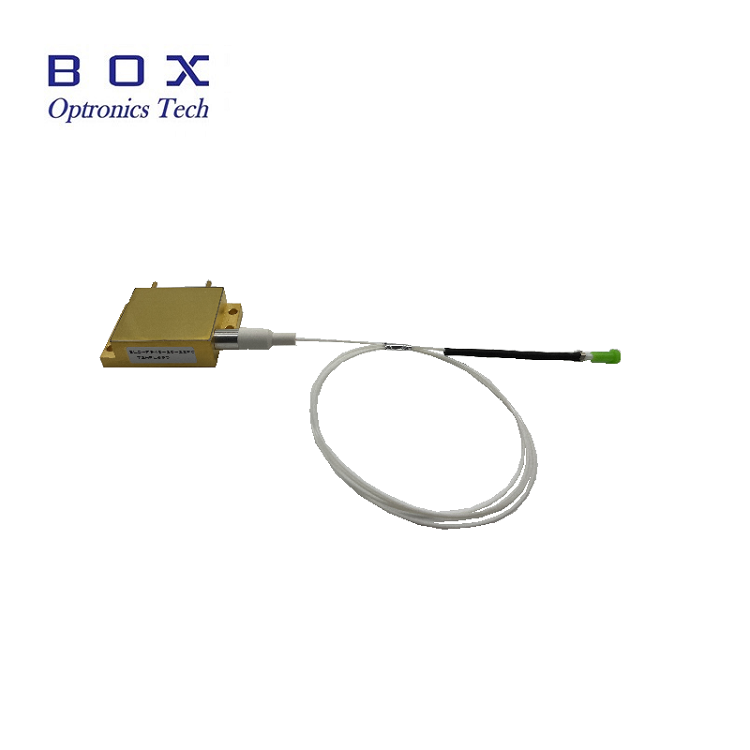

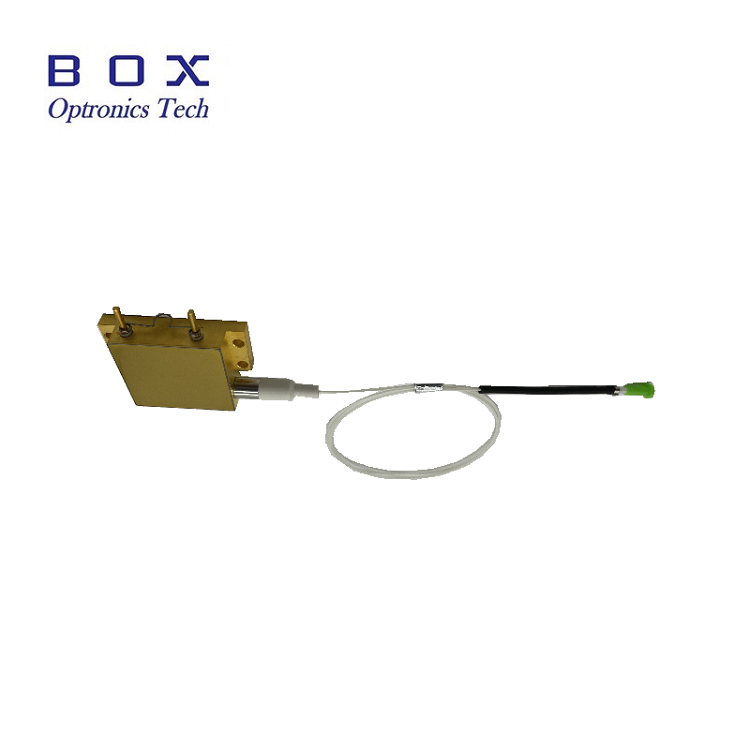

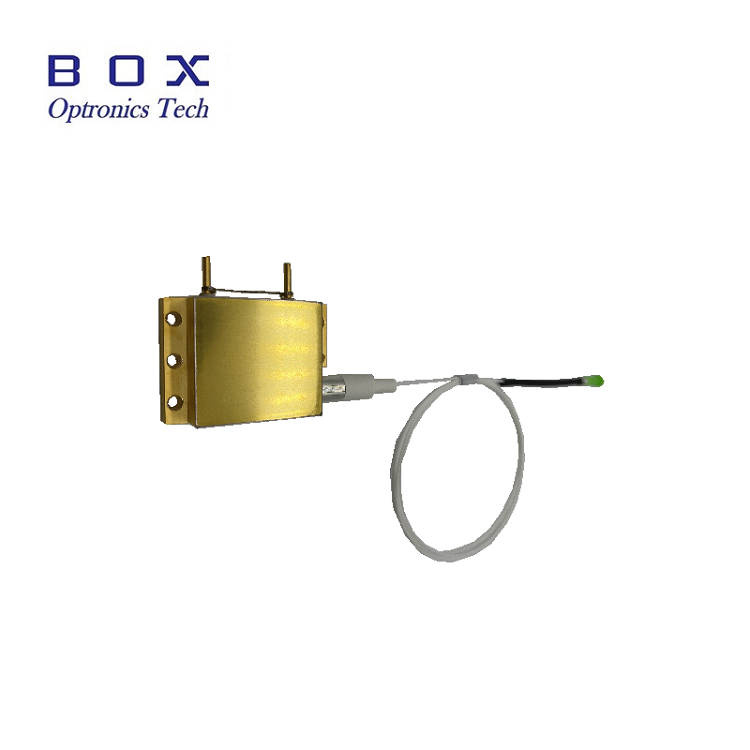

The 793nm 10W MM fiber Pigtail laser diode introduces a new high brightness single-emitter based, fiber-coupled diode laser pump module that delivers 10W output power into a 105um fiber core at a wavelength of 793nm, with a numerical aperture of 0.22NA.
The 793nm 10W MM fiber Pigtail laser diode introduces a new high brightness single-emitter based, fiber-coupled diode laser pump module that delivers 10W output power into a 105um fiber core at a wavelength of 793nm, with a numerical aperture of 0.22NA.
The 793nm 10W MM fiber Pigtail laser diode introduces a new high brightness single-emitter based, fiber-coupled diode laser pump module that delivers 10W output power into a 105um fiber core at a wavelength of 793nm, with a numerical aperture of 0.22NA.
793nm center wavelength;
10W Output power;
105/125μm 0.22NA Fiber;
High brightness;
RoHS Compliance.
Laser pumping;
Medical use;
Material processing.
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Operating output power | Pout | 10.0 | - | - | W |
| Range of available wavelength | λ | 790 | 793 | 796 | nm |
| Spectral width @ FWHM | Δλ | - | 3.5 | - | nm |
| Threshold current | Ith | - | 0.2 | 0.5 | A |
| Operating current at Pout | IOP | - | 3.5 | 4.0 | A |
| Operating voltage at Pout | VOP | - | 5.5 | - | V |
| Power conversion efficiency | - | - | 45 | - | % |
| Wavelength temperature coefficient | Δλ/ΔT | - | 0.3 | - | nm/℃ |
| Slope efficiency | η | - | 2.7 | - | W/A |
| Fiber bend radius | r | 37.5 | - | - | mm |
| Fiber core/cladding diameter | DCOR | - | 105/125 | - | µm/µm |
| Fiber buffer diameter | DBUF | - | 250 | - | µm |
| Fiber numerical aperture | NA | - | 0.22 | - | - |
| Beam numerical aperture(90% power) | NA | - | 0.17 | - | - |
| Fiber length | Lf | - | 1.2 | - | m |
| Connector type | - | Null, FC/PC, SMA905 | - | ||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: We have 793nm 808nm 915nm 975nm laser diode.
Q: What is the requirement for the output power?A: Box optronics can customize according to your requirements.
