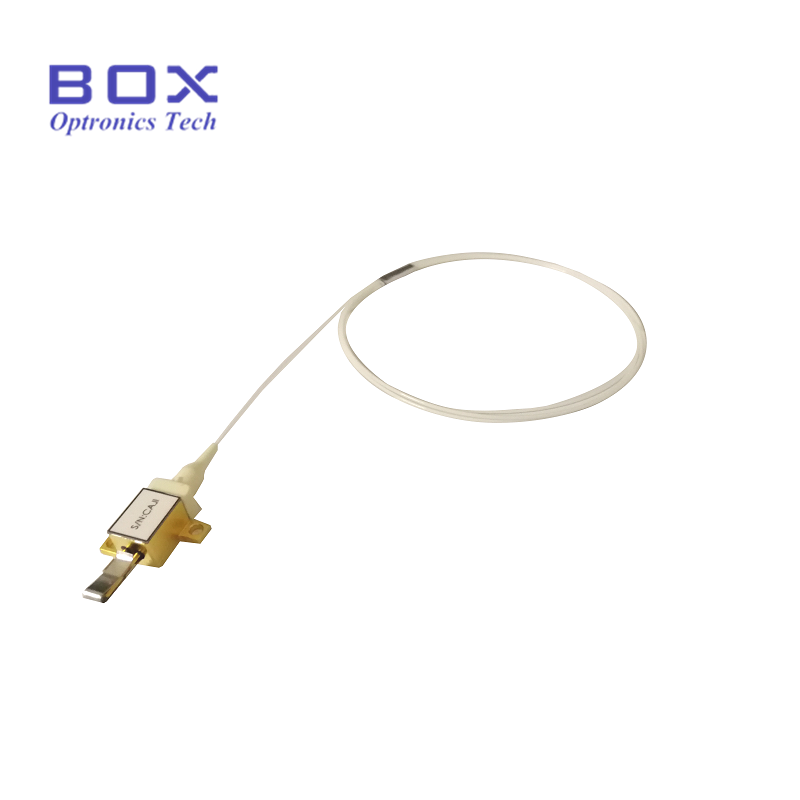

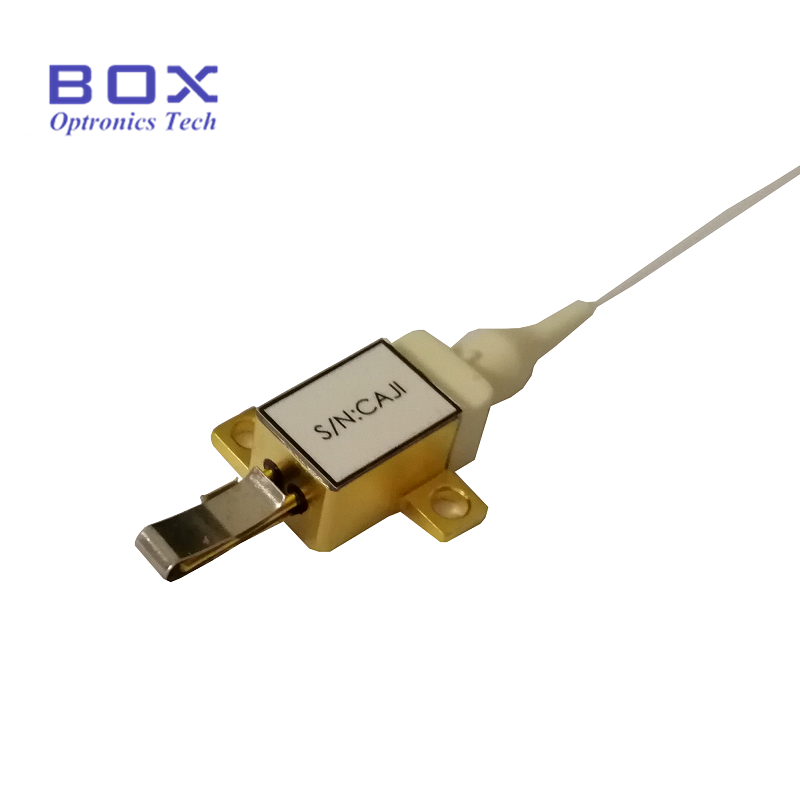

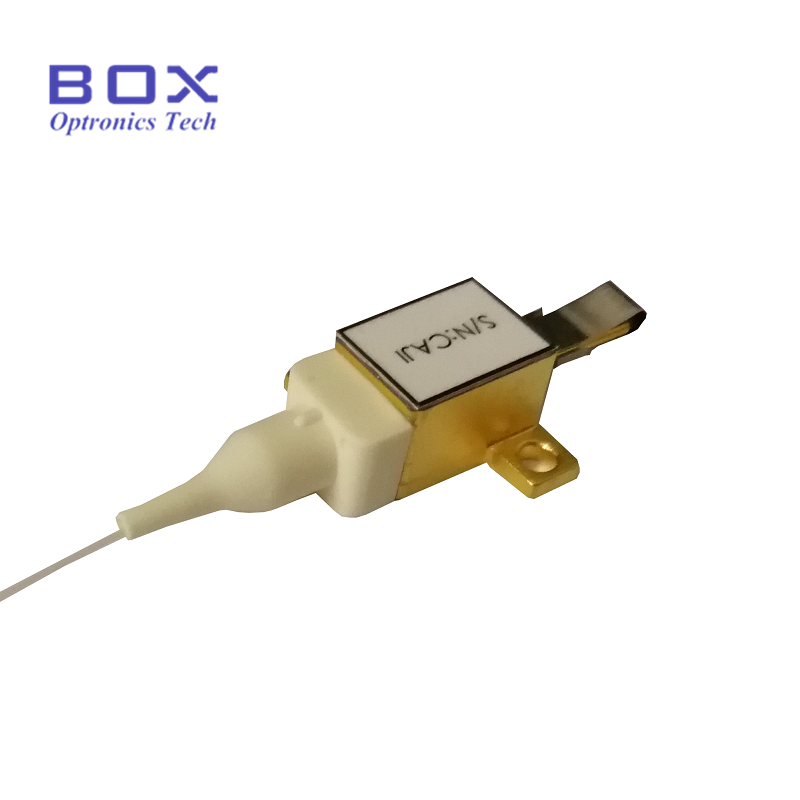

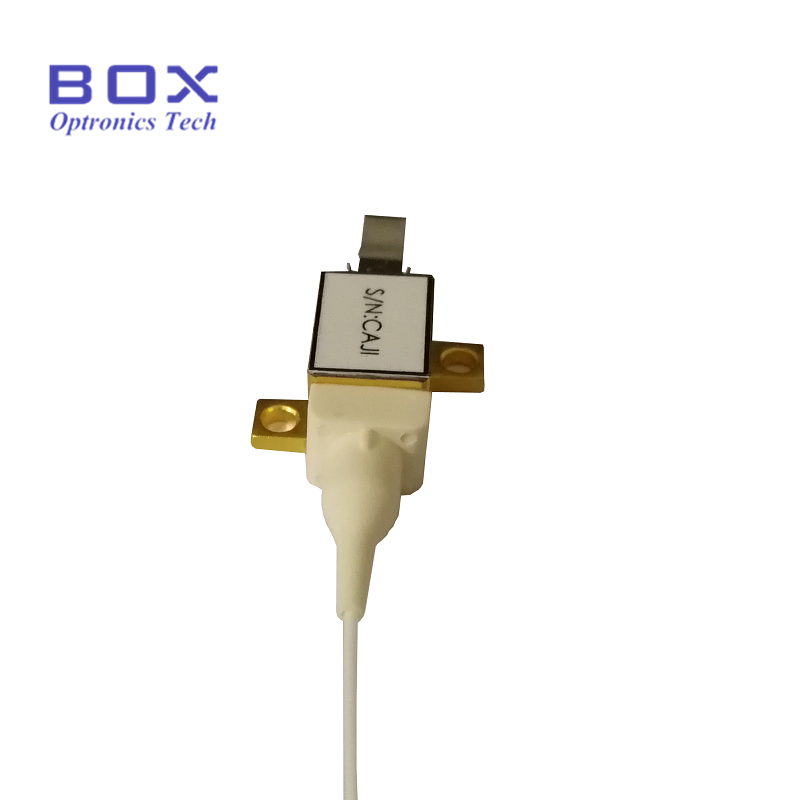

450nm 3W High Power Fiber Coupled Laser SMA905

The 450nm 3W High Power Fiber Coupled Laser SMA905 is widely used in Lab Research Testing, laser pumping, medical, printing, material processing.

Send Inquiry

Product Description

1. Summary of 450nm 3W High Power Fiber Coupled Laser SMA905

The 450nm 3W High Power Fiber Coupled Laser SMA905 is widely used in Lab Research Testing, laser pumping, medical, printing, material processing.

2. Introduction of 450nm 3W High Power Fiber Coupled Laser SMA905

The 450nm 3W High Power Fiber Coupled Laser SMA905 is widely used in Lab Research Testing, laser pumping, medical, printing, material processing.

3. Features of 450nm 3W High Power Fiber Coupled Laser SMA905

Wavelength:450nm

Power Output: 3W

Spectrum Width:4

Fiber Core: 105/125

Numerical Aperture NA:0.22

4. Application of 450nm 3W High Power Fiber Coupled Laser SMA905

Laser pumping;

Medical use;

Printing;

Marking;

Material processing.

5. Electro-Optical Characteristics(T=25℃) of 450nm 3W High Power Fiber Coupled Laser SMA905

Parameter Symbol Min. Typ. Max. Unit
Operating output power Pout - 3.0 - W
Range of available wavelength λ 445 450 455 nm
Spectral width @ FWHM Δλ - 3.0 7.0 nm
Threshold current Ith - 0.25 - A
Operating current at Pout IOP - 2.65 3.0 A
Operating voltage at Pout VOP - 4.6 5.5 V
Power conversion efficiency - - 20 - %
Wavelength temperature coefficient Δλ/ΔT - 0.1 - nm/℃
Slope efficiency η - 1.0 - W/A
Fiber bend radius r 37.5 - - mm
Fiber core/cladding diameter DCOR - 105/125 - µm/µm
Fiber buffer diameter DBUF - 250 - µm
Fiber numerical aperture NA - 0.15 - -
Beam numerical aperture(90% power) NA - 0.13 - -
Fiber length Lf - 1.2 - m
Connector type - Null, FC/PC, SMA905 -

6. Package drawing&PIN-OUT Definition(Unit:mm) of 450nm 3W High Power Fiber Coupled Laser SMA905

  • PIN Description
    1 LD+
    2 LD-

7. Deliver,Shipping And Serving of 450nm 3W High Power Fiber Coupled Laser SMA905

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What is the wavelength you need?

A: We have 793nm 808nm 915nm 975nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
