This 1550nm 200mW CW DFB Fiber Laser module adopts DFB laser chip and high-power gain optical path module to realize the high-power output of single-mode fiber. The professionally designed laser driving and temperature control circuit ensures the safe and stable operation of the laser.
This 1550nm 200mW CW DFB Fiber Laser module adopts DFB laser chip and high-power gain optical path module to realize the high-power output of single-mode fiber. The professionally designed laser driving and temperature control circuit ensures the safe and stable operation of the laser.
200mW/400mW/500mW/1W/5W/10W multiple power options;
Power and spectral stability;
Benchtop or Module package.
Optical sensor;
Fiber laser;
Research on nonlinear optics.
| Parameters | Unit | Values | Notes |
| Operating wavelength | nm | 1550±0.5 | 1540~1570 |
| Output power | mW | 200/500/1000/2000/5000/10W | Customizable |
| dBm | 23/27/30/33/37/40 | Customizable | |
| Spectral linewidth | nm | ≤ 0.1 | |
| Side mode suppression ratio | dB | > 50 | |
|
Power instability (Short-term 15mins) |
dB | ≤±0.02 | |
|
Power instability (Long-term 8hours) |
dB | ≤±0.05 | |
| Connector | - | FC/APC | |
| Fiber type | - | SMF-28e/ PM1550 fiber | |
| Dimensions | mm | 125(W)x150(D)x30(H)mm | 30dBm/33dBm |
| 139(W)x235(D)x70(H) | 37dBm/40dBm | ||
| Power supply | V | AC 110~240V | |
| DC12V6A, ≤80W | |||
| Communication interface | - | DB9 Female(RS232) | |
| Operating temperature | ℃ | -20 ~ +65 | |
| Storage temperature | ℃ | -40 ~ +85 |

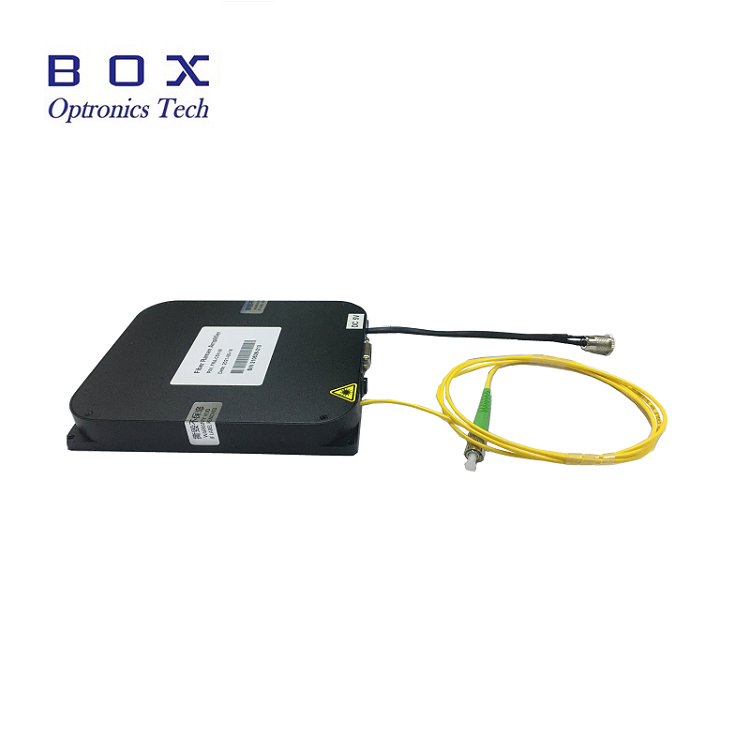

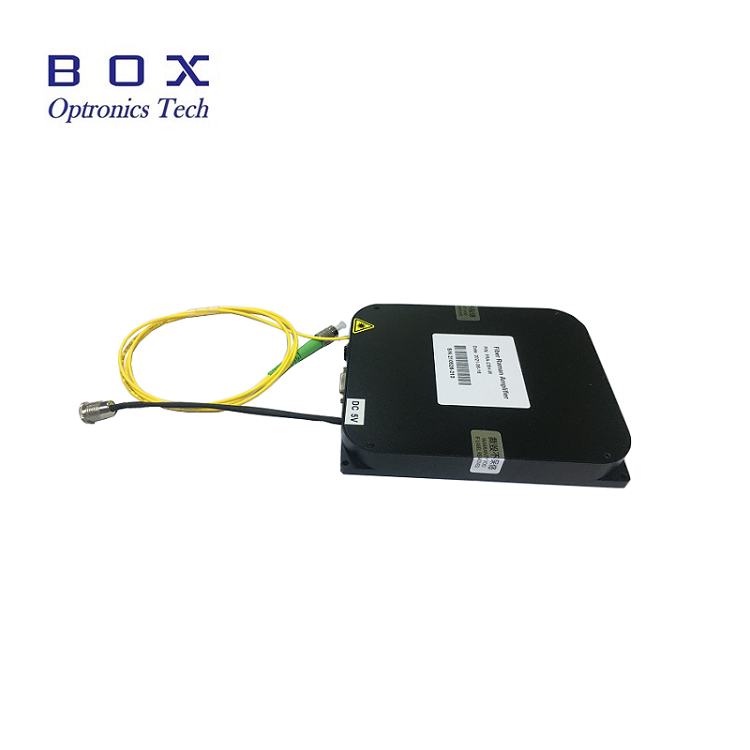

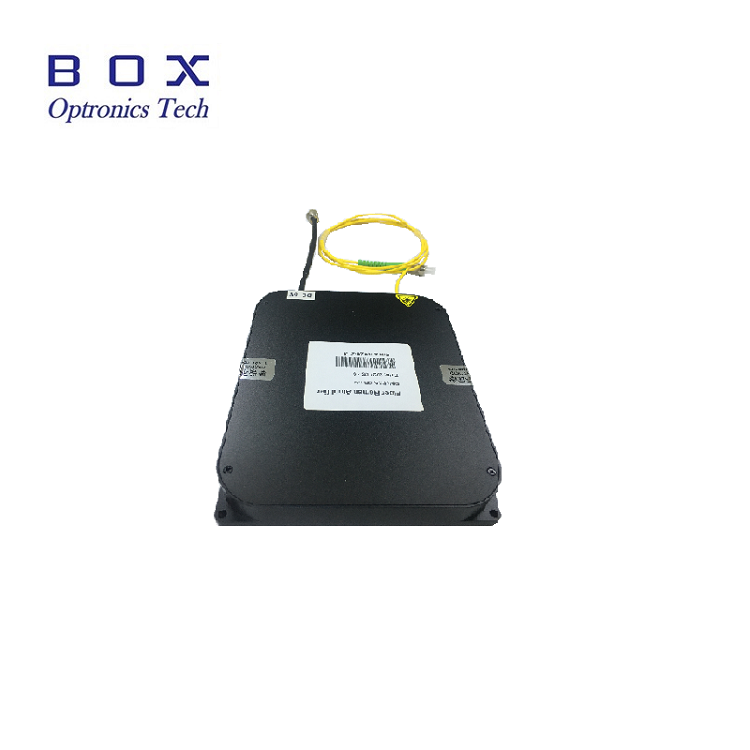

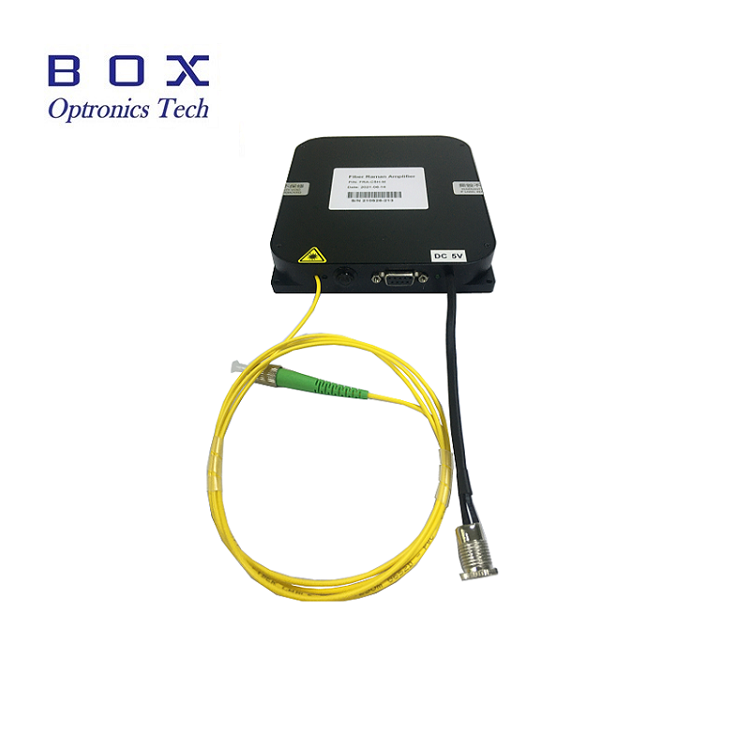

30dBm/33dBm Module Package
37dBm/40dBm Module Package
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: We have 1530nm 1550nm 1560nm options.
Q: What is the requirement for the output power?A: We have 1W/2W/10W, we can also customize according to your requirement.
Q: About the package dimension, do you have any requirement?A: We have the module type and benchtop for choice.
