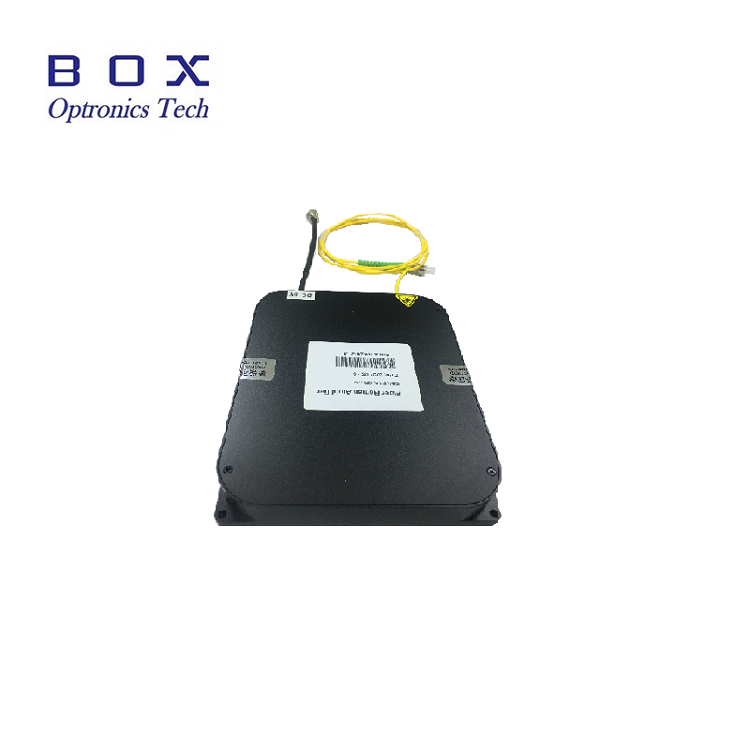

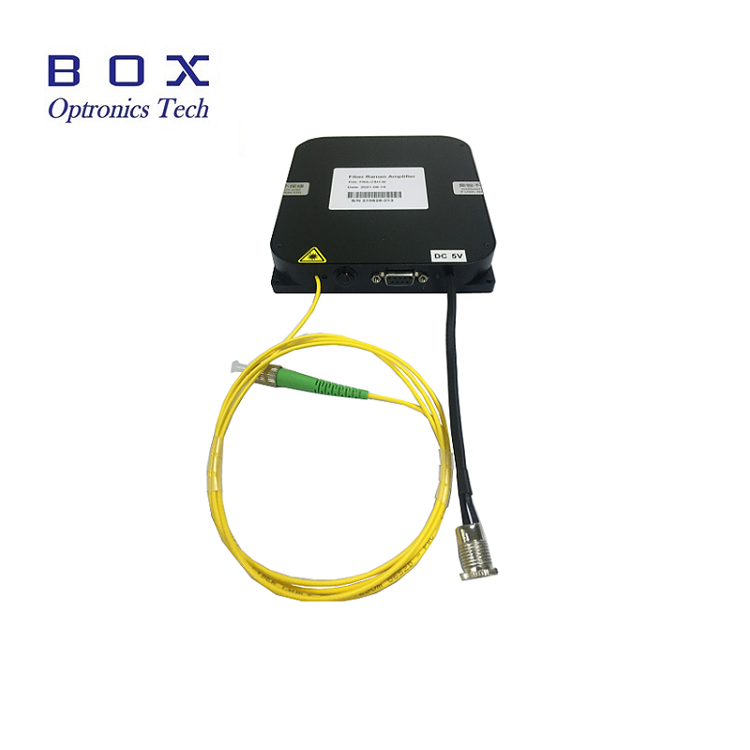

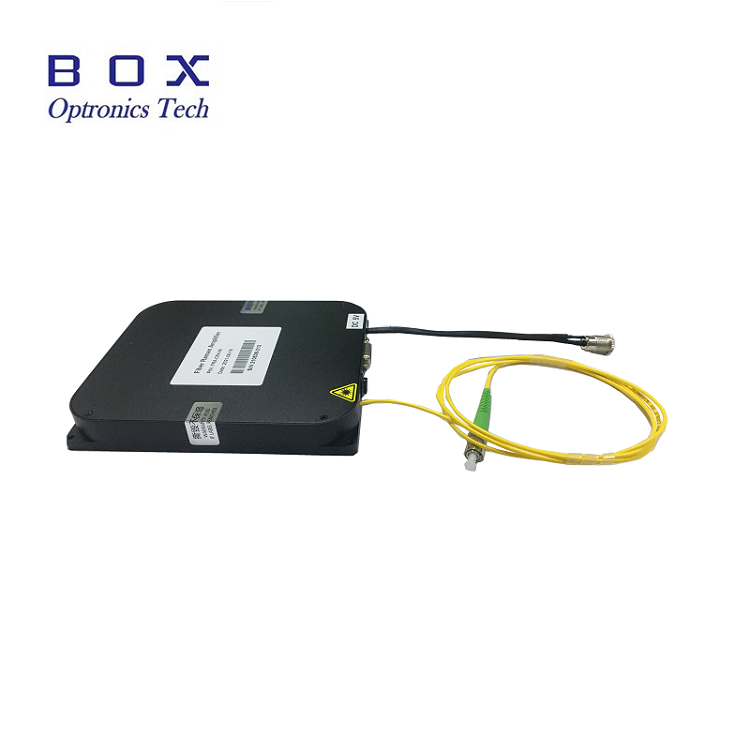

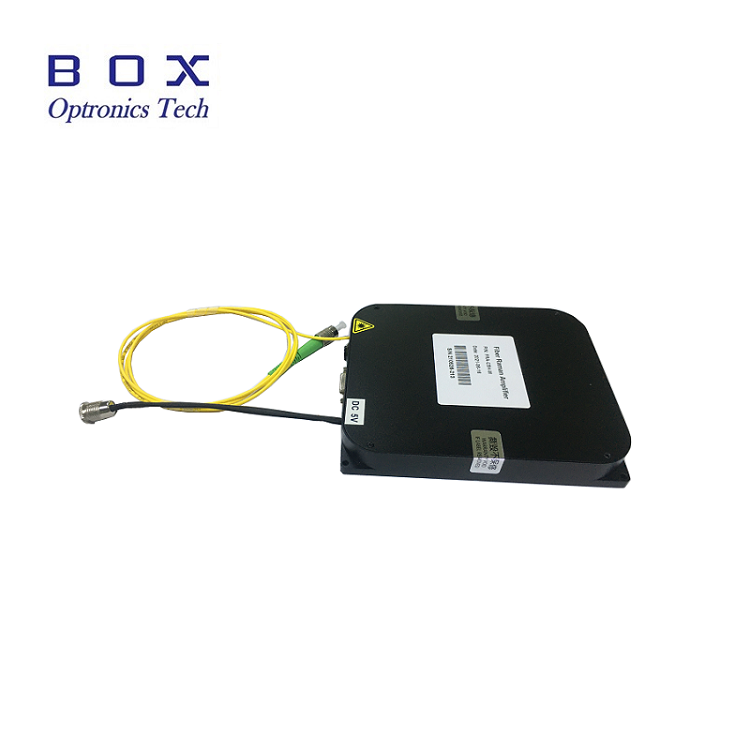

1450nm 500mw Raman Amplifier Pump Laser With TEC Cooler can be used in scientific research, experiment and production test, and pump optical source of fiber Raman amplifier.
The 1450nm band semiconductor laser source output by single-mode fiber adopts high-performance butterfly laser, and uses professional designed driving circuit and TEC control to ensure the safe and stable operation of laser. This laser can be used in scientific research, experiment and production test, and pump optical source of fiber Raman amplifier.
High output power;
Power and spectral stability;
Benchtop or Module package.
Seed light source;
Fiber laser;
Research on nonlinear optics.
Parameters | Unit | Values | Notes |
Operating wavelength | nm | 1457 | |
Output power | mW | 200~500 | Customizable |
Power instability (Short-term 15mins) |
dB | ≤±0.02 | |
Power instability (Long-term 8hours) |
dB | ≤±0.05 | |
Connector | - | FC/APC | |
Fiber type | - | SMF-28e | |
Dimensions | mm | 260(W)×280(D)×120(H) | Benchtop |
90(W)×70(D)×15(H) | Module | ||
Power supply | V | AC 110~240V | Benchtop |
DC 5V/4A | Module | ||
Communication interface | - | DB9 Female(RS232) | |
Operating temperature | ℃ | -20 ~ +65 | |
Storage temperature | ℃ | -40 ~ +85 |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: We have 1450nm and 1457nm options.
Q: What is the requirement for the output power?A: We have 200mW 400mW and 500mW, we can also customize according to your requirement.
Q: About the package dimension, do you have any requirement?A: We have the module type and benchtop for choice.
