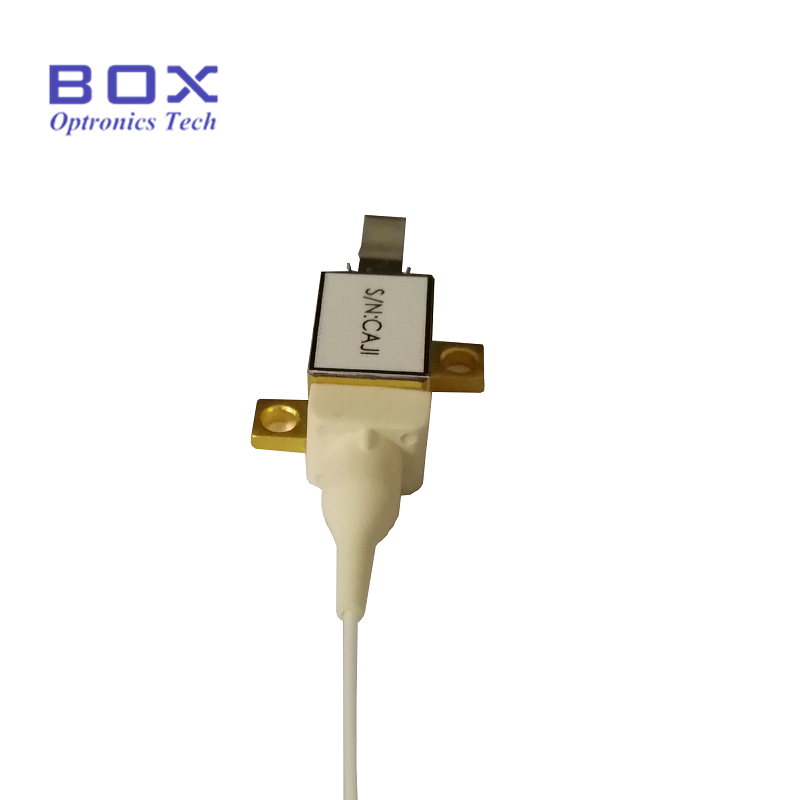

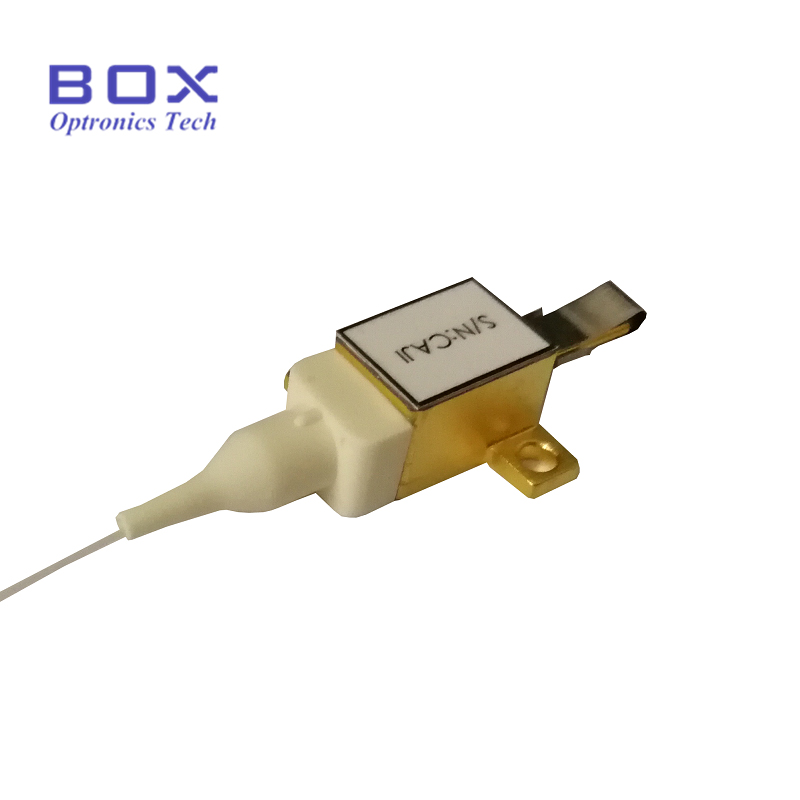

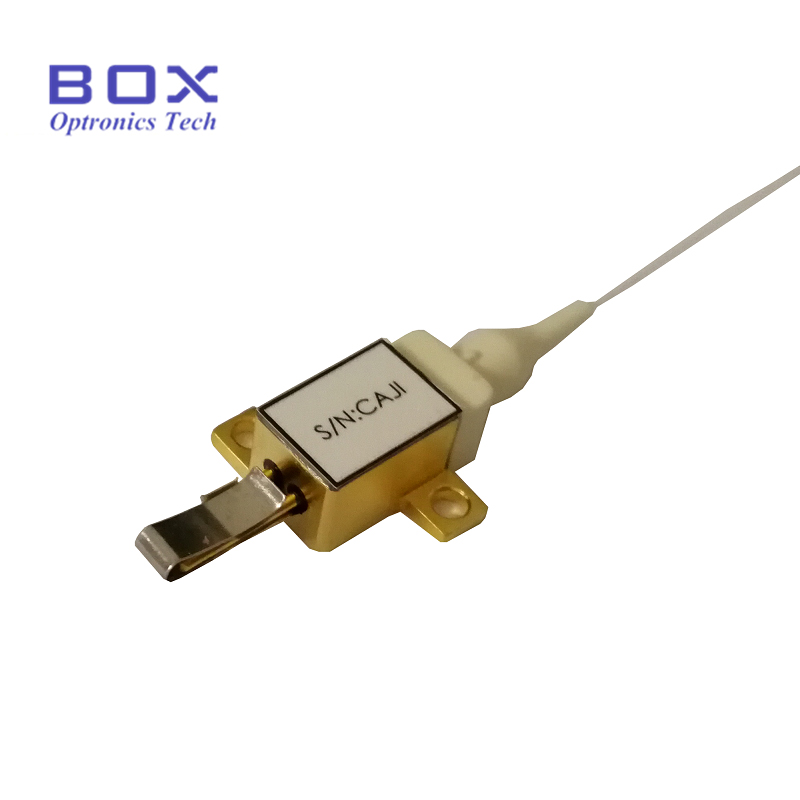

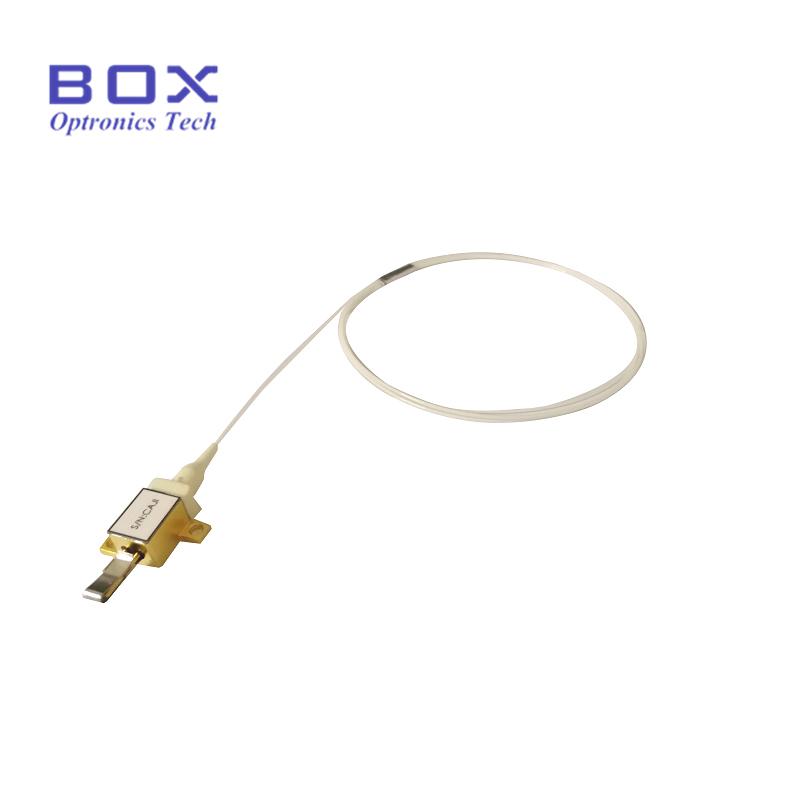

1064nm 9W Multimode Fiber Pigtailed 2 PIN Laser Diode Modules

The 1064nm 9W Multimode fiber pigtailed 2 PIN laser diode modules have a high efficiency, stability and superior beam quality. The modules are achieved by transforming the asymmetric radiation from the laser diode chip into an output fiber with small core diameter by using special micro optics. Inpection and burn-in procedures guarantee reliability, stability and long lifetime of each modules.

The 1064nm 9W Multimode fiber pigtailed 2 PIN laser diode modules have a high efficiency, stability and superior beam quality. The modules are achieved by transforming the asymmetric radiation from the laser diode chip into an output fiber with small core diameter by using special micro optics. Inpection and burn-in procedures guarantee reliability, stability and long lifetime of each modules.

Output Power c.w. Pop (c.w.): 9 Watts;

Peak Wavelength at Pop: 1064 nm (+/-10nm);

Spectral Width (FWHM): 5 nm;

Parallel weld 2-Pin sealed package;

Standard central wavelength 915nm/940nm/975nm/1064nm.

Medical care;

Illumination;

Solid State Pumping;

Scientific Research;

Material processing.

•

•

•

• PIN	DESIGNATIONS
  1	LD+
  2	LD-

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

A: We have 793nm 808nm 915nm 975nm laser diode.

A: Box optronics can customize according to your requirements.
