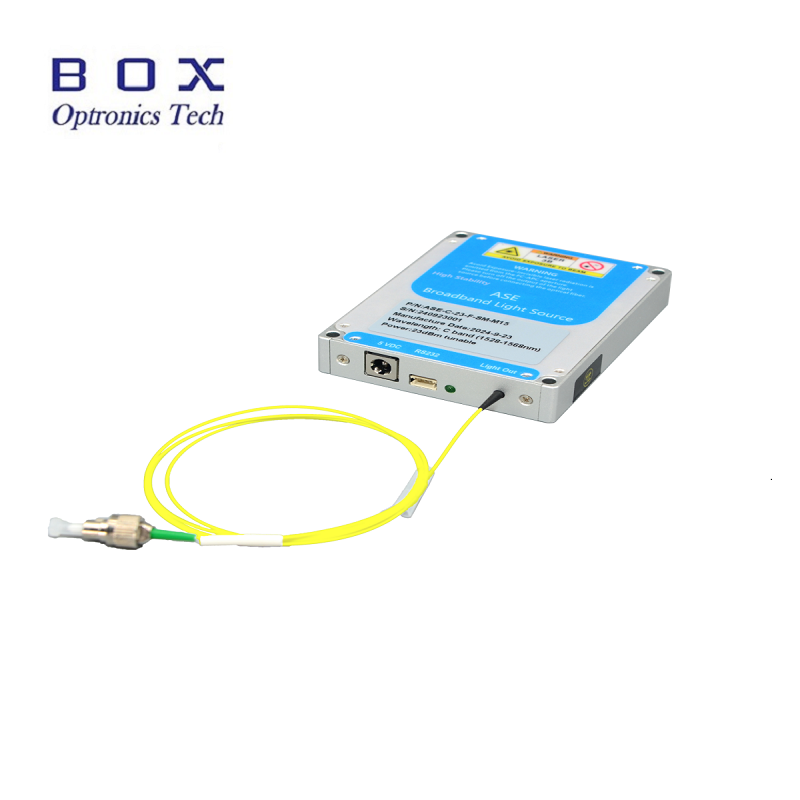

This Low cost C-band ASE Broadband Light Source has C-band wavelength, with 5~7dB spectral flatness and SM fiber and for fiber sensing applications.
This Low cost C-band ASE Broadband Light Source has C-band wavelength, with 5~7dB spectral flatness and SM fiber and for fiber sensing applications.
Power stability;
Flat spectrum;
Remote monitoring.
Fiber optic sensing;
Medical imaging;
Fiber optic device testing.
| Parameters | Unit | Values | Notes |
| Operating wavelength | nm | 1526~1566 | C Band |
| Output power | mW | 20 | Constant Power |
| Power Spectral Density | dBm/nm | -3 | mean value |
| Spectral flatness | dB | ≤7 | |
| Output isolation | dB | >35 | |
|
Power instability (Short-term 15mins) |
dB | ≤±0.02 | |
|
Power instability (Long-term 8hours) |
dB | ≤±0.05 | |
| Degree of polarization | dB | ≤0.2 | |
| Connector | - | FC/APC | |
| Fiber type | - | SMF-28e | |
| Dimensions | mm | 70(W)×90(D)×15(H) | Module |
| Power supply | V | DC 5V1.2A | Module |
| Communication interface | - | ZH1.5-3Pin | |
| Operating temperature | ℃ | -5 ~ +55 | |
| Storage temperature | ℃ | -40 ~ +85 |

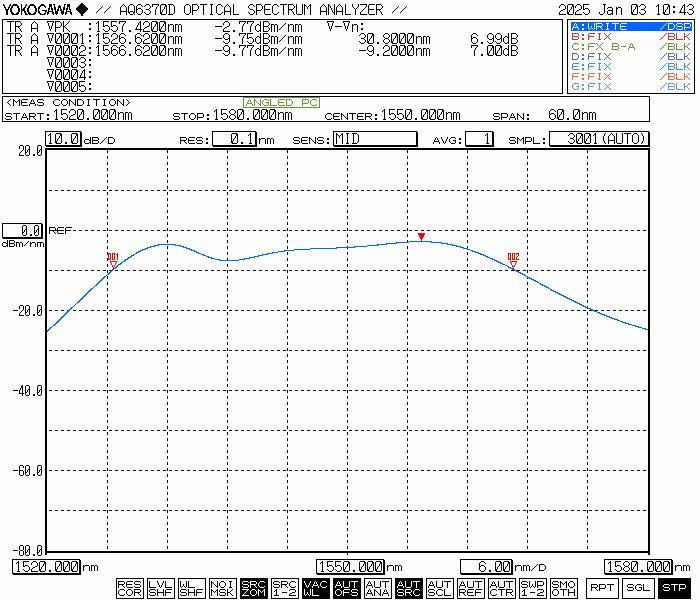

C-band ASE spectrum.
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: C-band or L band wavelength.
Q: What is the requirement for the output power?A: Box optronics can customize according to your requirements.
Q: About the package dimension, do you haveany requirement?A: We have the module type and benchtop for choice.
