Long Wavelength 2.0μm-band 1850~2000nm ASE Broadband Light Source is based on thulium fiber laser technology and with high output power.
The 2.0μm band ASE broadband light source is based on thulium fiber laser technology and with high output power. The spectrum covers 1850~2000nm and is suitable for laser biology, spectrum measurement and other applications. Communication interface and host computer software can be provided to facilitate the monitoring of light source status.
Power stability;
Flat spectrum;
Mid-infrared light source.
Laser Bio;
Spectral measurement;
Fiber optic device testing.
Parameters | Unit | Values | Notes |
Operating wavelength | nm | 1850-2000 | |
Output power | mW | 10 | Constant power |
Operating mode | - | Continuous light | |
Spectral width | nm | 100 | @10dB |
Spectral flatness | dB | ≤15 | |
Output isolation | dB | 30 | |
Power instability (Short-term 15mins) |
dB | ≤±0.02 | |
Power instability (Long-term 8hours) |
dB | ≤±0.05 | |
Degree of polarization | dB | ≤0.2 | |
Connector | - | FC/APC | |
Fiber type | - | SMF-28e | |

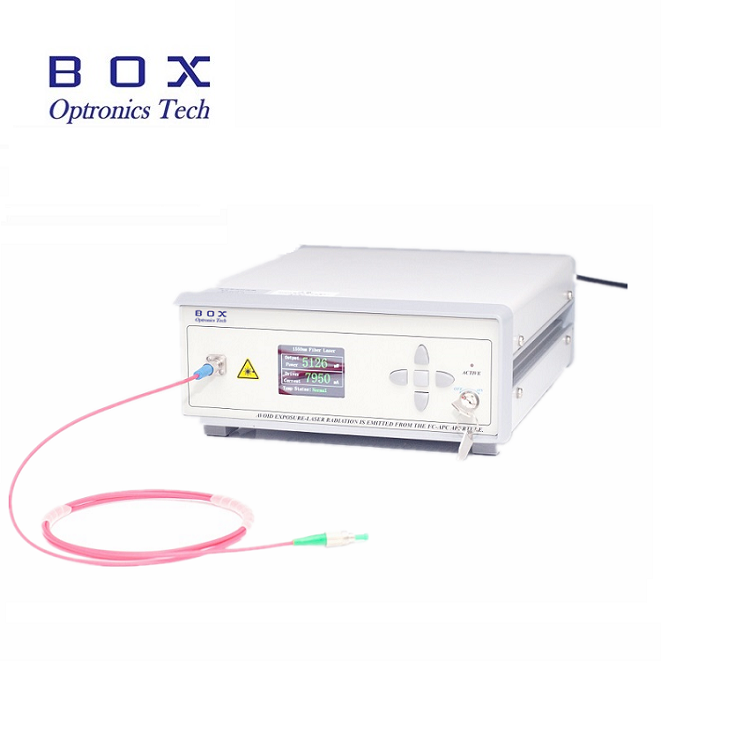

Dimensions | mm | 260(W)×280(D)×120(H) | Benchtop |
Power supply | V | AC 110~240V, <20W@25℃ | Benchtop |
Communication interface | - | DB9 Female(RS232) | |
Operating temperature | ℃ | -20 ~ +65 | |
Storage temperature | ℃ | -40 ~ +85 |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: We have 10mW 20mW, we can also customize according to your requirement.
Q: About the package dimension, do you have any requirement?A: We have the module type and benchtop for choice.
