Fiber Grating Hygrometer Humidity Sensor
  • Fiber Grating Hygrometer Humidity SensorFiber Grating Hygrometer Humidity Sensor
  • Fiber Grating Hygrometer Humidity SensorFiber Grating Hygrometer Humidity Sensor
  • Fiber Grating Hygrometer Humidity SensorFiber Grating Hygrometer Humidity Sensor
  • Fiber Grating Hygrometer Humidity SensorFiber Grating Hygrometer Humidity Sensor

Fiber Grating Hygrometer Humidity Sensor

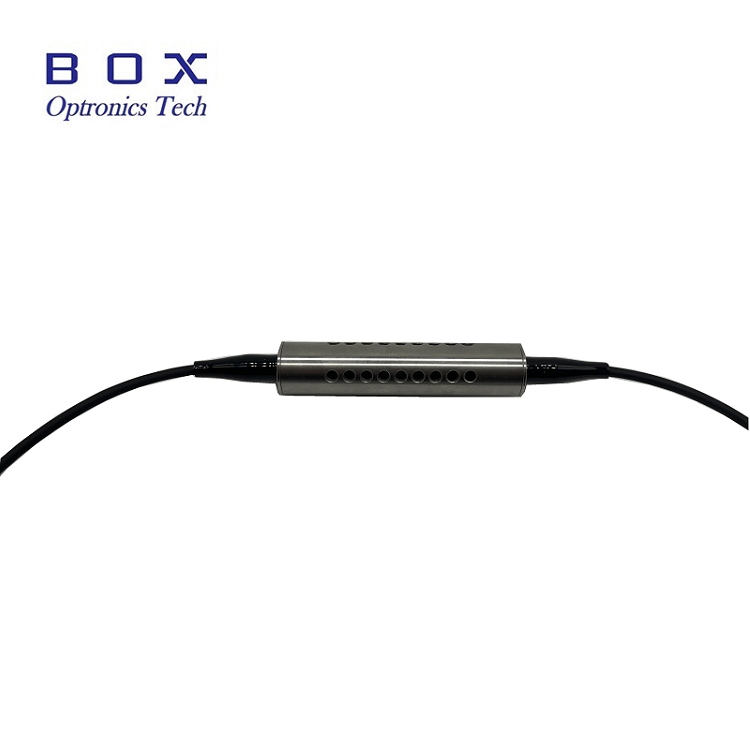

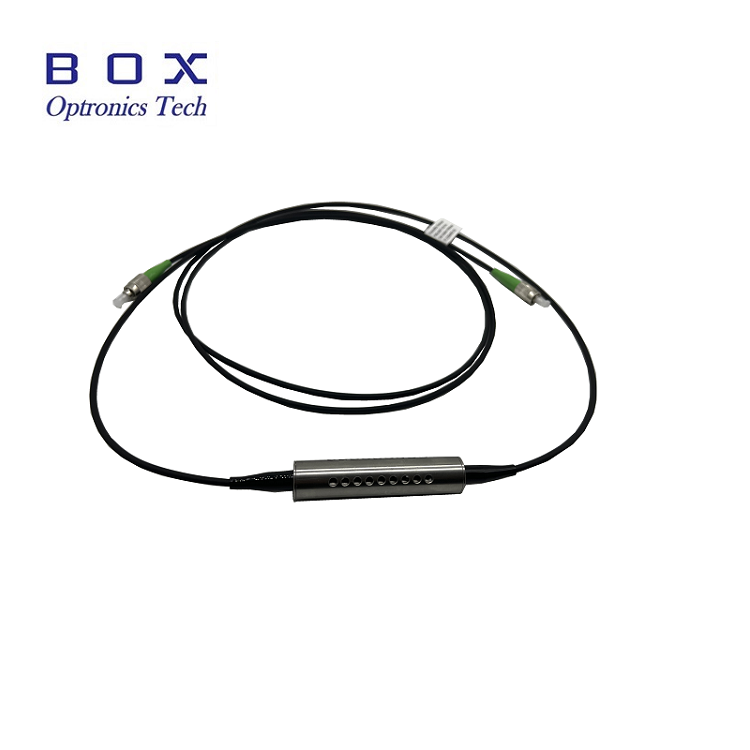

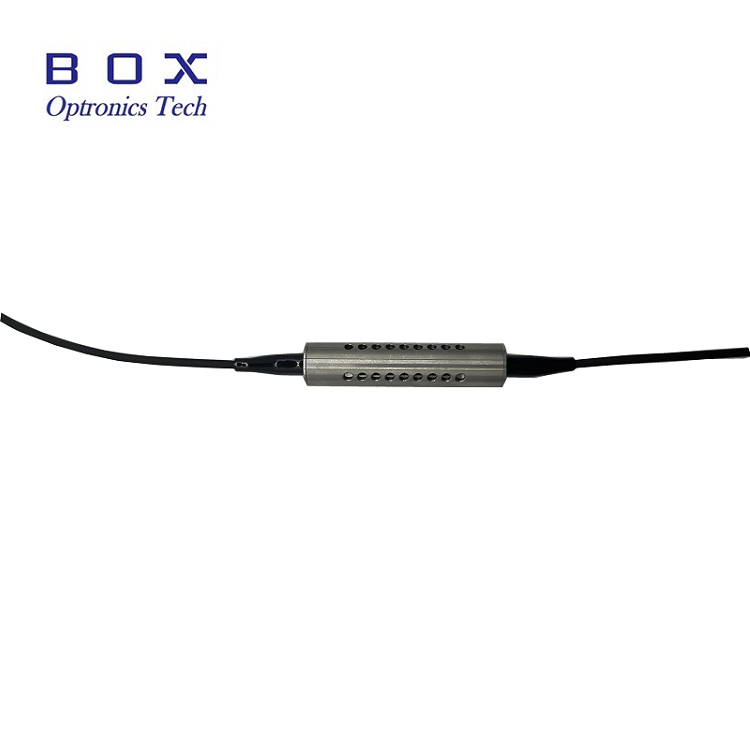

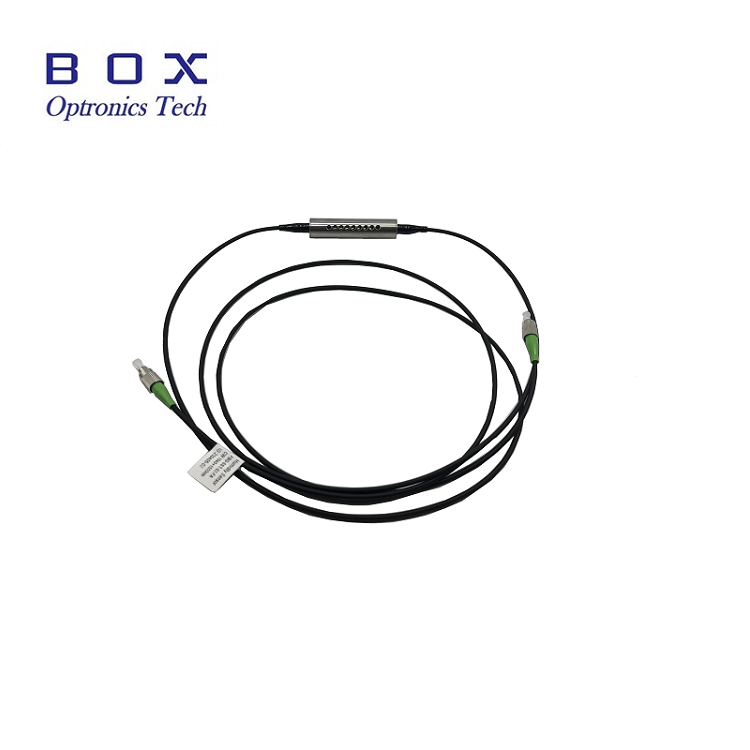

The Fiber Grating Hygrometer Humidity Sensor is packaged with stainless steel metal tube, and its humidity sensitivity is used to monitor humidity. The sensor is intrinsically safe, free from electromagnetic interference for temperature and humidity testing.

Send Inquiry

Product Description

1. Introduction of Fiber Grating Hygrometer Humidity Sensor

The Fiber Grating Hygrometer Humidity Sensor is packaged with stainless steel metal tube, and its humidity sensitivity is used to monitor humidity. The sensor is intrinsically safe, free from electromagnetic interference for temperature and humidity testing.

2. Features of Fiber Grating Hygrometer Humidity Sensor

Fast response time;

High stability and reliability;

High humidity sensitivity;

Temperature compensation seal, small error;

Network monitoring with other sensors.

3. Application of Fiber Grating Hygrometer Humidity Sensor

The strain sensors can be applied to buildings, warehouses, cable channels, power towers and other occasions.

4. Characteristics(T=25℃) of Fiber Grating Hygrometer Humidity Sensor

Parameter Typical specification Units
Wavelength range 1510~1590 nm
Humidity range 5~95 %RH
Humidity resolution 0.25 %RH
Humidity measurement accuracy 4 %RH
Temperature resolution 0.1
Temperature measurement accuracy +/-0.5
Connector Customized -
Dimensions Ф16*72 mm
Pigtail type 3mm Armored optical cable -

5. Humidity characteristics of Fiber Grating Hygrometer Humidity Sensor

6. Deliver,Shipping And Serving of Fiber Grating Hygrometer Humidity Sensor

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

6. FAQ

Q: what is the applications and wavelength accuracy?

A: Box optronics can provide many kinds of 1270nm to 1610nm or 1550nm Fiber Bragg Grating FBGs.

Q: What is the optical connector you requirement?

A: Box optronics can customize the optical connector according the requirement for free.
