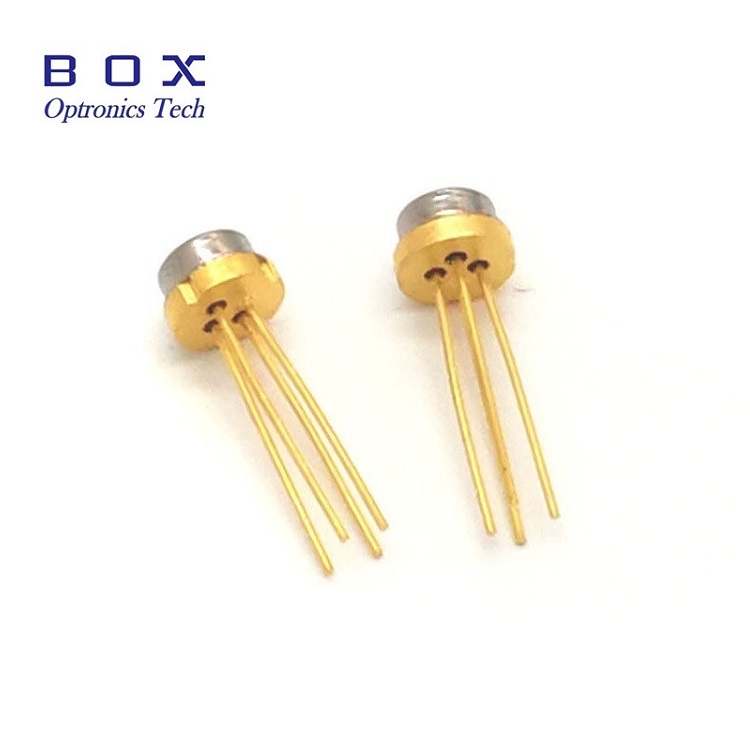

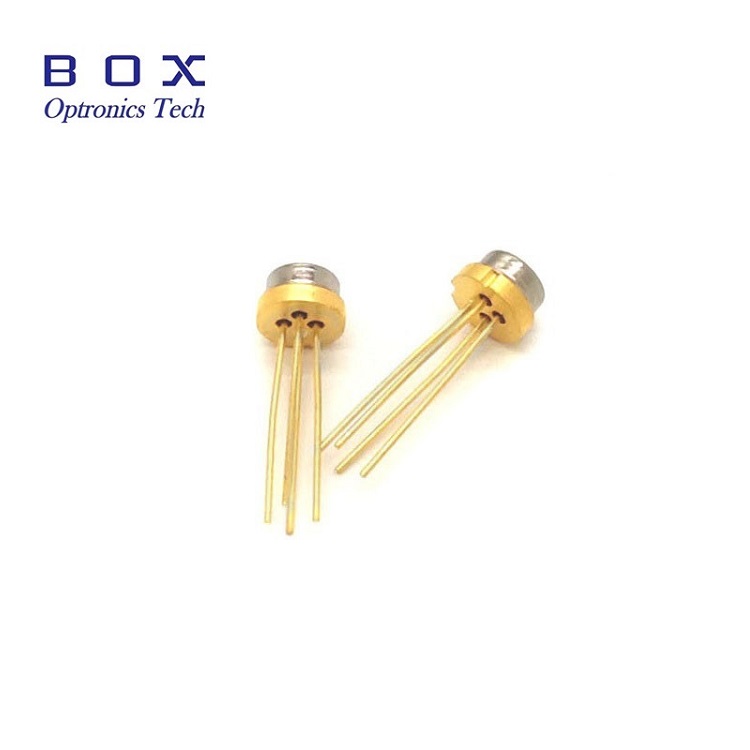

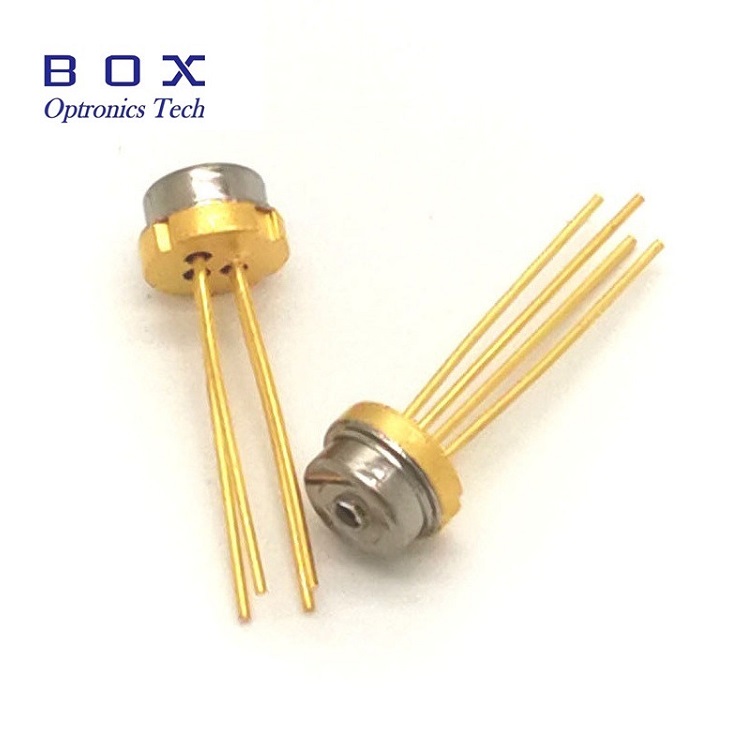

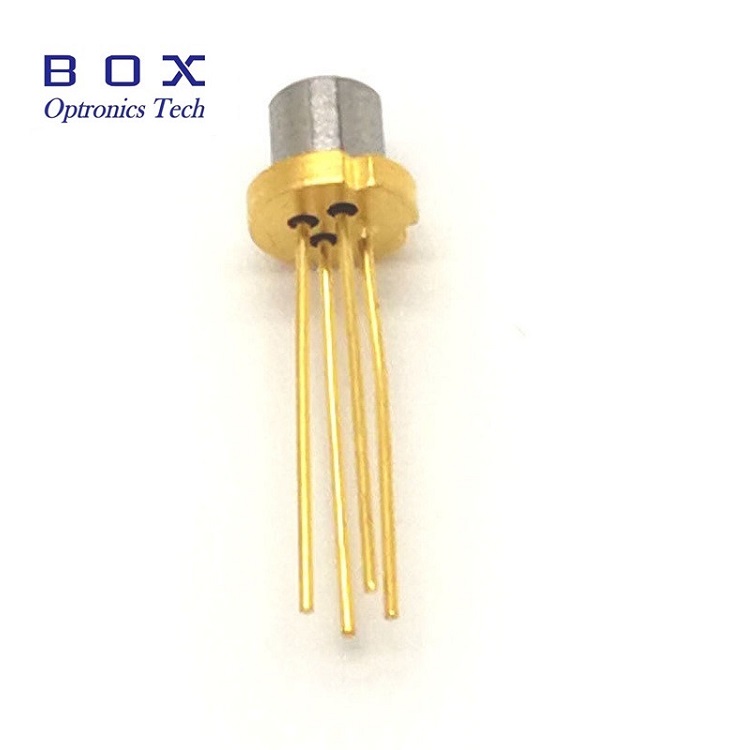

The 940nm 10mW TO CAN VCSEL Laser Diode is a standard Vertical Cavity Surface Emitting Lasers (VCSELs) in ready to use fiber coupled packages. it is in a small package TO56, Modulation and width >2GHz. We offer the 940nm 10mW VCSEL Laser Diode with multi-mode optical fiber 50um or 62.5um core optical fiber.
The 940nm 10mW VCSEL Laser Diode is a standard Vertical Cavity Surface Emitting Lasers (VCSELs) in ready to use fiber coupled packages. it is in a small package TO56, Modulation and width >2GHz. We offer the 940nm 10mW VCSEL Laser Diode with multi-mode optical fiber 50um or 62.5um core optical fiber.
940nm single longitudinal mode;
Output power 10mW;
Small emission area;
Modulation and width >2GHz.
Vehicle applications;
IR indicator;
Range finder sensors.
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Center wavelength | λC | IF = 11mA | 930 | 940 | 950 | nm |
| Optical output power | Po | IF = 11mA | - | 10 | - | mW |
| Threshold current | Ith | IF = 11mA | - | 0.5 | - | mA |
| Slope efficiency | - | - | - | 0.94 | - | W/A |
| Power conversion efficiency | PCE | IF = 11mA | - | 35 | 40 | % |
| Laser forward voltage | VF | IF = 11mA | - | 2.5 | - | V |
| Series resistance | Rs | IF = 11mA | - | 60 | - | Ω |
| Beam divergence | (1/e^2) | θ,IF = 11mA | - | 20 | - | Deg. |
| FWHM | - | 16 | - | |||
| Wavelength shift | - | IF = 11mA | - | - | 0.07 | nm/℃ |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: We have 1270nm~1610nm laser diode.
Q: What is the requirement for the output power?A: Box optronics can customize according to your requirements.
