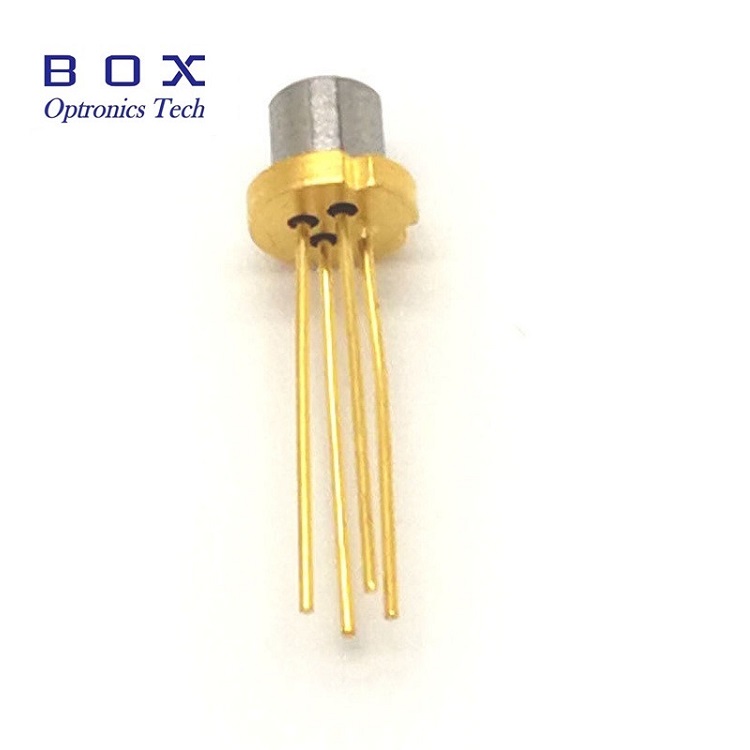

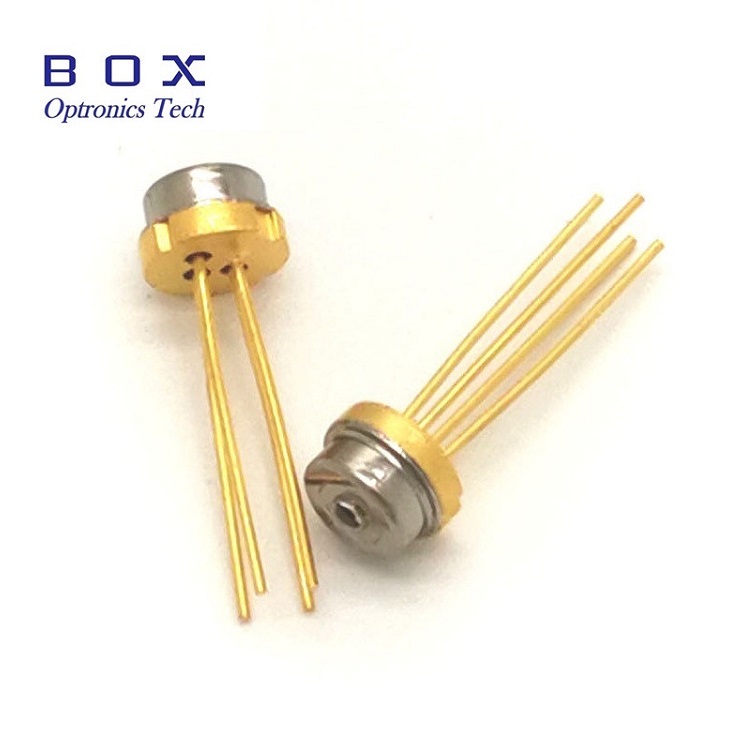

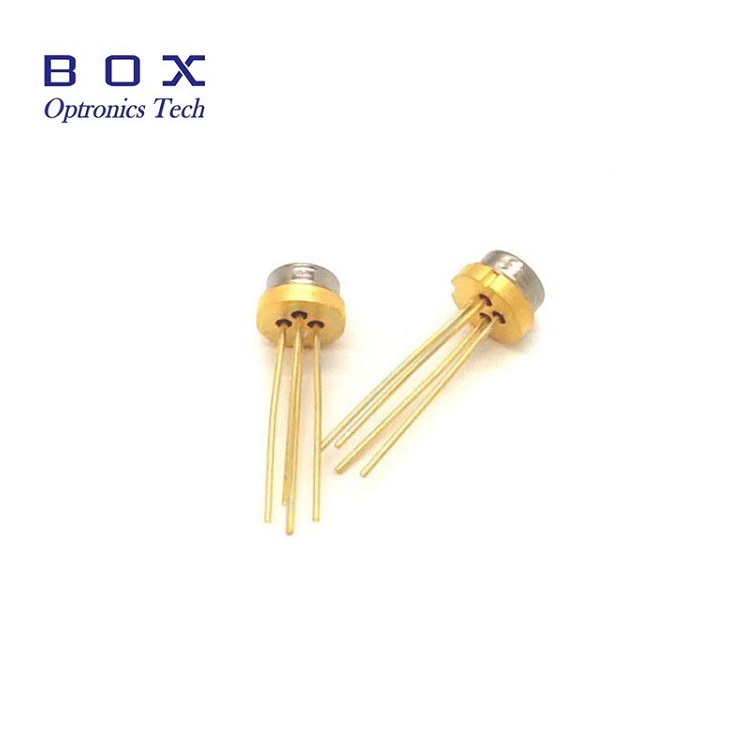

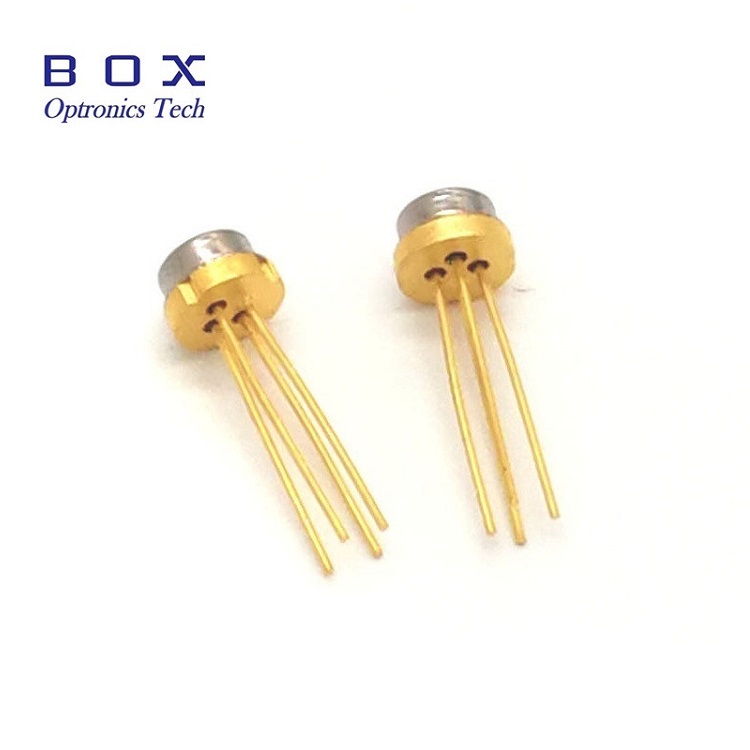

This 1610nm 5mW TO-CAN DFB Laser Diode is a product operable over a broad temperature range with a low temperature-wavelength coefficient. It is well suited for applications such as communications research, interferometry, and optical reflectometry for distance measurement in fiber or free space. Each device undergoes testing and burn-in. This laser comes packaged in a 5.6 mm TO Can. It contains an integrated aspheric focusing lens in the cap, allowing the focus spot and numerical aperture (NA) to be matched to SMF-28e+ fiber.
This 1610nm 5mW TO-CAN DFB Laser Diode is a product operable over a broad temperature range with a low temperature-wavelength coefficient. It is well suited for applications such as communications research, interferometry, and optical reflectometry for distance measurement in fiber or free space. Each device undergoes testing and burn-in. This laser comes packaged in a 5.6 mm TO Can. It contains an integrated aspheric focusing lens in the cap, allowing the focus spot and numerical aperture (NA) to be matched to SMF-28e+ fiber.
Wavelength 1610nm;
Output power >5mW;
High power over wide temperature range;
High reliability, Long operation life.
CDMA/GSM transmission system;
WDM system;
Telecommunication;
Other analog transmission system.
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Center wavelength | λC | CW, IF=ITH+20mA | 1600 | 1610 | 1620 | nm |
| Optical output power | PF | IF=ITH+20mA | 5 | 6 | - | mW |
| Threshold current | ITH | CW | 8 | 15 | mA | |
| CW, T=85℃ | 30 | 50 | ||||
| Operating voltage | VF | CW, IF=ITH+20mA | - | 1.2 | 1.5 | V |
| Side-mode suppression ratio | SMSR | CW, IF=ITH+20mA | 30 | 35 | - | dB |
| Rise time/Fall time | TR/TF | PO=PF, 50Ohm | - | 0.2 | 0.5 | ns |
| Monitor current | IM | CW, IF=ITH+20mA | 100 | - | 1000 | uA |
| PD Capacitance | C | - | - | 10 | 20 | PF |
| Dark current | - | VRD = 5V | - | - | 100 | nA |
| Spectral width(-3dB) | Δλ | 0.3 | 1 | nm | ||
| Slope Efficiency | SE | - | 0.26 | 0.3 | - | W/A |
| Focal length | - | - | - | 7.5 | - | mm |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: We have 1270nm~1610nm laser diode.
Q: What is the requirement for the output power?A: Box optronics can customize according to your requirements.
