50um InGaAs Avalanche Photodiode Chip is photodiode with internal gain produced by the application of a reverse voltage. They have a higher signal-to-noise ratio (SNR) than photodiodes, as well as fast time response, low dark current, and high sensitivity. Spectral response range is typically within 900 - 1650nm.
50um InGaAs Avalanche Photodiode Chip is photodiode with internal gain produced by the application of a reverse voltage. They have a higher signal-to-noise ratio (SNR) than photodiodes, as well as fast time response, low dark current, and high sensitivity. Spectral response range is typically within 900 - 1650nm.
50um InGaAs Avalanche Photodiode Chip is photodiode with internal gain produced by the application of a reverse voltage. They have a higher signal-to-noise ratio (SNR) than photodiodes, as well as fast time response, low dark current, and high sensitivity. Spectral response range is typically within 900 - 1650nm.
Detect range 900nm-1650nm;
High speed;
High responsivity;
Low capacitance;
Low dark current;
Top illuminated planar structure.
Monitoring;
Fiber-optic Instruments;
Data Communications.
| Parameter | Symbol | Value | Unit |
| Maximum forward current | - | 10 | mA |
| Maximum voltage Supply | - | VBR | V |
| Operating temperature | Topr | -40 to +85 | ℃ |
| Storage temperature | Tstg | -55 to +125 | ℃ |
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Wavelength range | λ | 900 | - | 1650 | nm | |
| Breakdown Voltage | VBR | Id =10uA | 40 | - | 52 | V |
| Temperature coefficient of VBR | - | - | - | 0.12 | - | V/℃ |
| Responsivity | R | VR =VBR -3V | 10 | 13 | - | A/W |
| Dark current | ID | VBR -3V | - | 0.4 | 10.0 | nA |
| Capacitance | C | VR =38V, f=1MHz | - | 8 | - | pF |
| Bandwith | Bw | - | - | 2.0 | - | GHz |

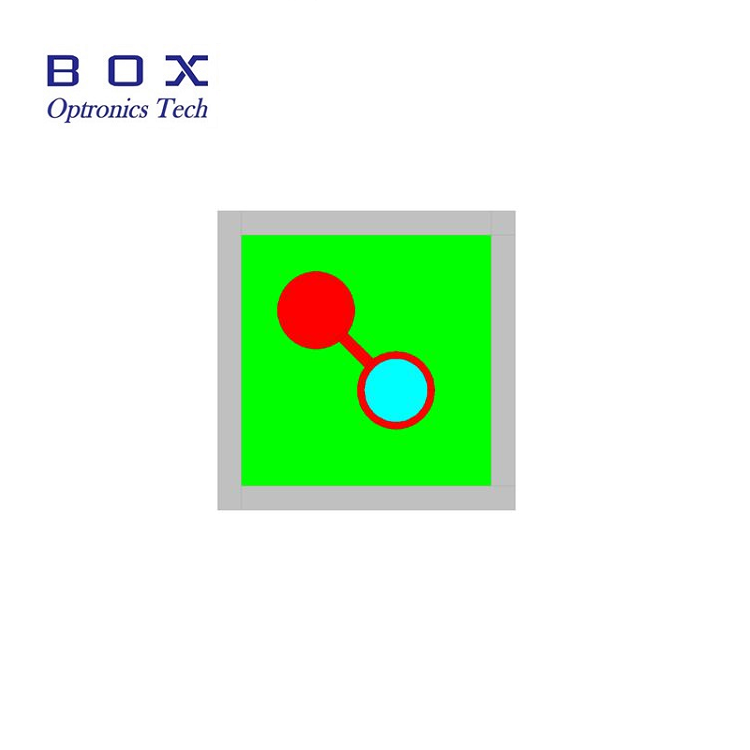

| Parameter | Symbol | Value | Unit |
| Active area diameter | D | 53 | um |
| Bond pad diameter | - | 65 | um |
| Die size | - | 250x250 | um |
| Die thickness | t | 150±20 | um |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: we have 50um 200um 500um active area InGaAs Avalanche Photodiode Chip.
Q: What is the requirement for the connector?A: Box Optronics can customize according to your requirements.
