The 300um InGaAs Photodiode Chip offer superb response from 900nm to 1700nm, perfect for telecom and near IR detection. The photodiode is perfect for high bandwidth and active alignment applications.
The 300um InGaAs Photodiode Chip offer superb response from 900nm to 1700nm, perfect for telecom and near IR detection. The photodiode is perfect for high bandwidth and active alignment applications.
The 300um InGaAs Photodiode Chip offer superb response from 900nm to 1700nm, perfect for telecom and near IR detection. The photodiode is perfect for high bandwidth and active alignment applications.
Detect range 900nm-1650nm;
High speed;
High responsivity;
Low capacitance;
Low dark current;
Top illuminated planar structure.
Monitoring;
Fiber-optic Instruments;
Data Communications.
| Parameter | Symbol | Value | Unit |
| Reverse voltage | VRmax | 20 | V |
| Forward Current | - | 10 | mA |
| Operating temperature | Topr | -40 to +85 | ℃ |
| Storage temperature | Tstg | -55 to +125 | ℃ |
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Wavelength range | λ | 900 | - | 1650 | nm | |
| Responsivity | R | λ =1310nm | 0.85 | 0.90 | - | A/W |
| λ =1550nm | - | 0.95 | - | |||
| λ =850nm | - | 0.20 | - | |||
| Dark current | ID | Vr=5V | - | 1.0 | 5.0 | nA |
| Capacitance | C | VR=5V, f=1MHz | - | 4.2 | 6.0 | pF |
| Bandwith | Bw | 3dB down, RL=50Ω | - | 1.8 | - | GHz |

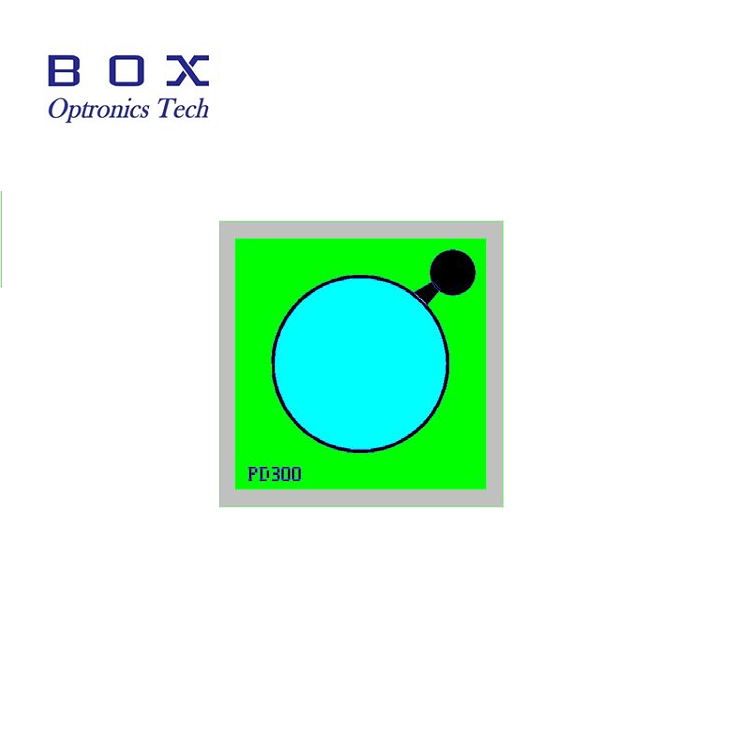

| Parameter | Symbol | Value | Unit |
| Active area diameter | D | 300 | um |
| Bond pad diameter | - | 80 | um |
| Die size | - | 420x420 | um |
| Die thickness | t | 180±20 | um |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: we have 0.3mm 0.5mm 1mm 2mm active area InGaAs Photodiode Chip.
Q: What is the requirement for the connector?A: Box Optronics can customize according to your requirements.
