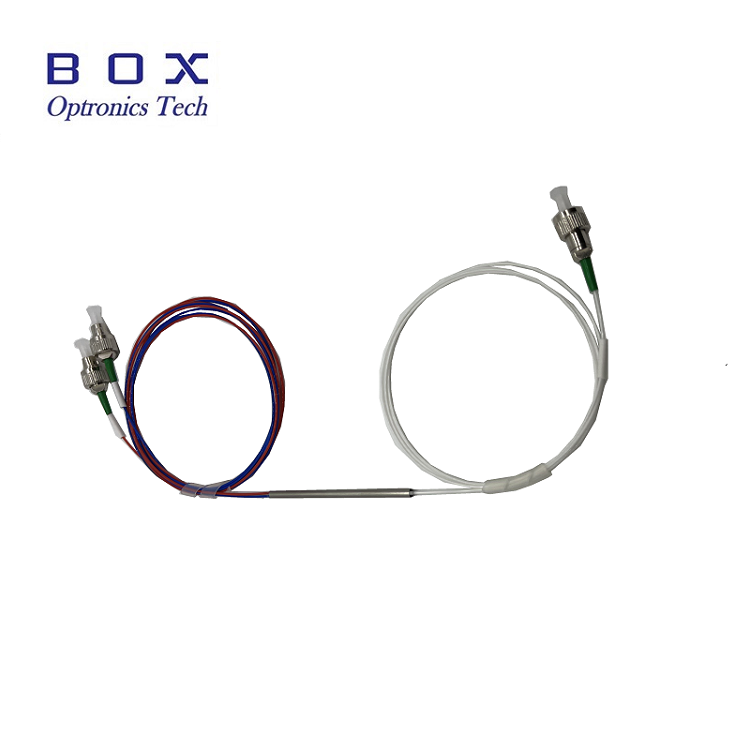

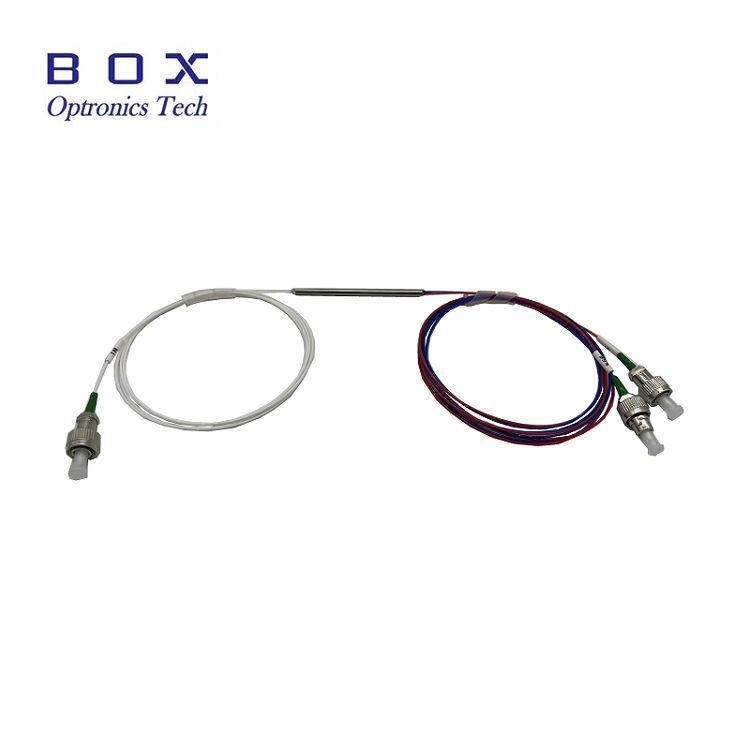

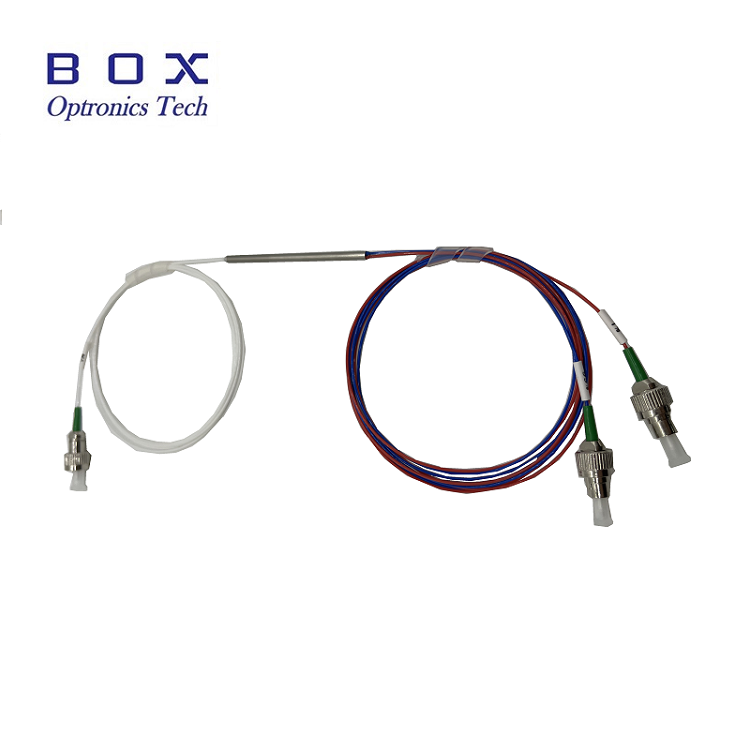

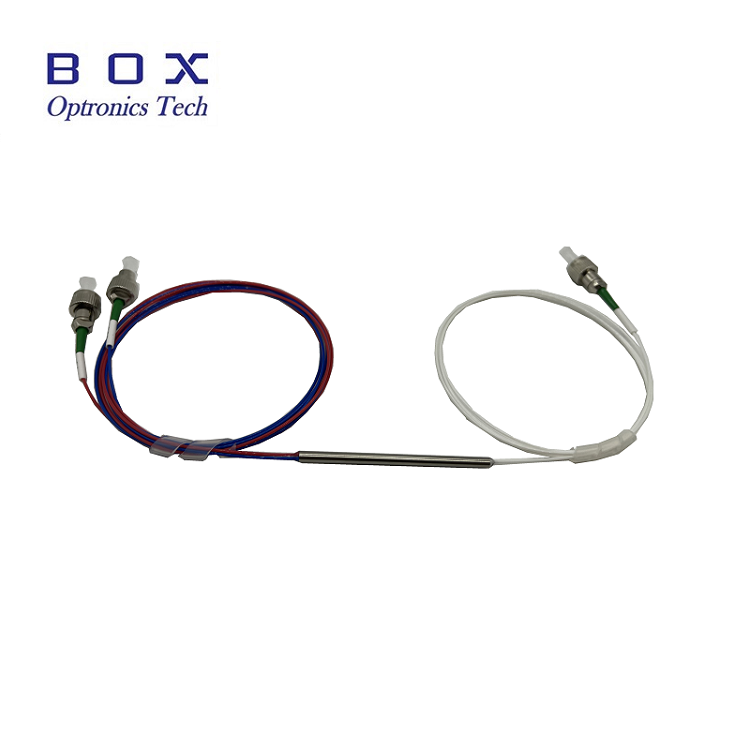

The 1X2 1310/1550nm CWDM wavelength WDM Wavelength Division Multiplexer is designed to combine light from two inputs into a single fiber. This WDM is designed for 1310 nm and 1550 nm wavelengths. Like all fused fiber devices, it is bidirectional: it can be used to split two wavelengths from a single input into two outputs. we can also provide other CWDM(1270nm to 1610nm) wavelengths WDM.
The 1X2 1310/1550nm CWDM wavelength WDM Wavelength Division Multiplexer is designed to combine light from two inputs into a single fiber. This WDM is designed for 1310 nm and 1550 nm wavelengths. Like all fused fiber devices, it is
bidirectional: it can be used to split two wavelengths from a single input into two outputs. we can also provide other CWDM(1270nm to 1610nm) wavelengths WDM.
Low insertion loss;
Small size;
High isolation;
High stability and reliability.
WDM system;
CATV system.
| Parameter | WA | WB | WC |
| Grade | P | P | P |
| Channel insertion loss(dB) | 0.3 | 0.7 | 1.2 |
| Isolation (dB) | ≥17 | ≥34 | ≥45 |
| Polarization dependent loss(dB) | ≤0.05 | ≤0.10 | ≤0.15 |
| Operating wavelength(nm) | 1295~1325/1528~1565 | ||
| Return Loss (dB) | ≥50 | ||
| Directivity | ≥55 | ||
| Return Loss(dB) | ≥35 | ||
| Operating temperature range(0C) | -10 to +70 0C | ||
| Storage temperature range(0C) | -40 to +85 0C | ||
| Fiber type | SMF-28e | ||
| Fiber length | 1.0 meter | ||
| Port | 1x2 or 2x2 | ||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: Box optronics can provide many kinds of WDM.
Q: What is the optical connector you requirement?A: Box optronics can customize the optical connector according the requirement for free.
