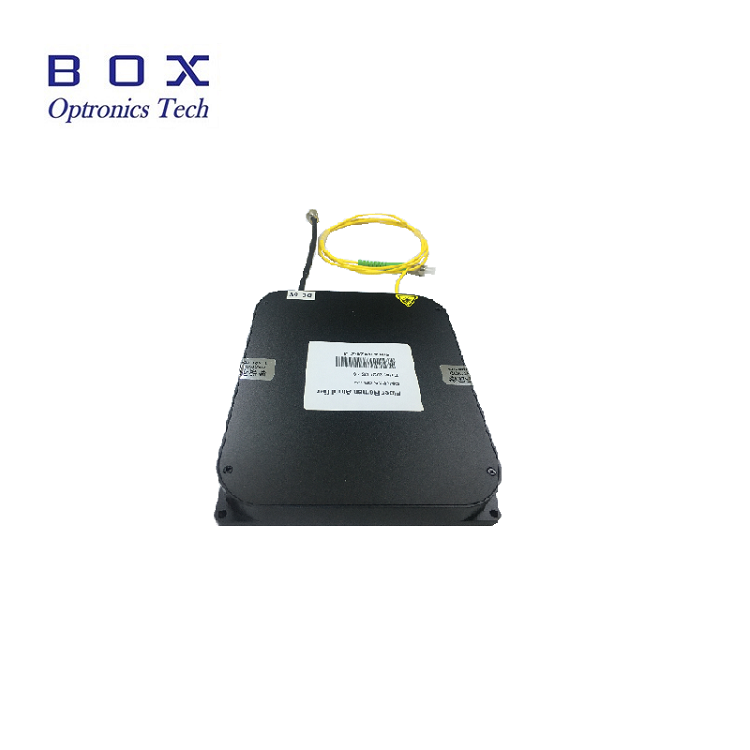

The 1524-1572nm C-band ASE broadband light source is an extension of the wavelength range of the C band ASE broadband light source, covering the wavelength range of 1524-1572nm (frequency 190.65~196.675THz), with a spectral flatness better than 2.5dB.
The 1524-1572nm C-band ASE broadband light source is an extension of the wavelength range of the C band ASE broadband light source, covering the wavelength range of 1524-1572nm (frequency 190.65~196.675THz), with a spectral flatness better than 2.5dB.
Power stability;
Flat spectrum;
Wider spectral range.
Fiber optic sensing;
Medical imaging;
Fiber optic device testing.
| Parameters | Unit | Values | Notes | |
| Operating wavelength | nm | 1524~1572 | C++ Band | |
| Output power | mW | 10/20/50/100/200 | ||
| Power adjustable(optional) | - | Adjustment range 10% ~ 100% | Constant spectral flatness | |
| Spectral flatness | dB | 2.5(Max.) | ||
|
Power instability (Short-term 15mins) |
dB | ≤±0.02 | ||
|
Power instability (Long-term 8hours) |
dB | ≤±0.05 | ||
| Degree of polarization | dB | ≤0.2 | ≤23 | |
| Fiber type | - | SMF-28e | PM1550 | |
| Connector | - | FC/APC | ||
| Dimensions | mm | 260(W)×280(D)×120(H) | Benchtop | |
| 150(W)×125(D)×20(H) | Module | |||
| Power supply | V | AC 110~240V, <30W | Benchtop | |
| DC 5V, <15W | Module | |||
| Communication interface | - | DB9 Female(RS232) | ||
| Operating temperature | ℃ | -5 ~ +55 | ||
| Storage temperature | ℃ | -40 ~ +85 | ||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: We have 10mW 20mW 50mW 100mW 200mW, we can also customize according to your requirement.
Q: About the package dimension, do you have any requirement?A: We have the module type and benchtop for choice.
