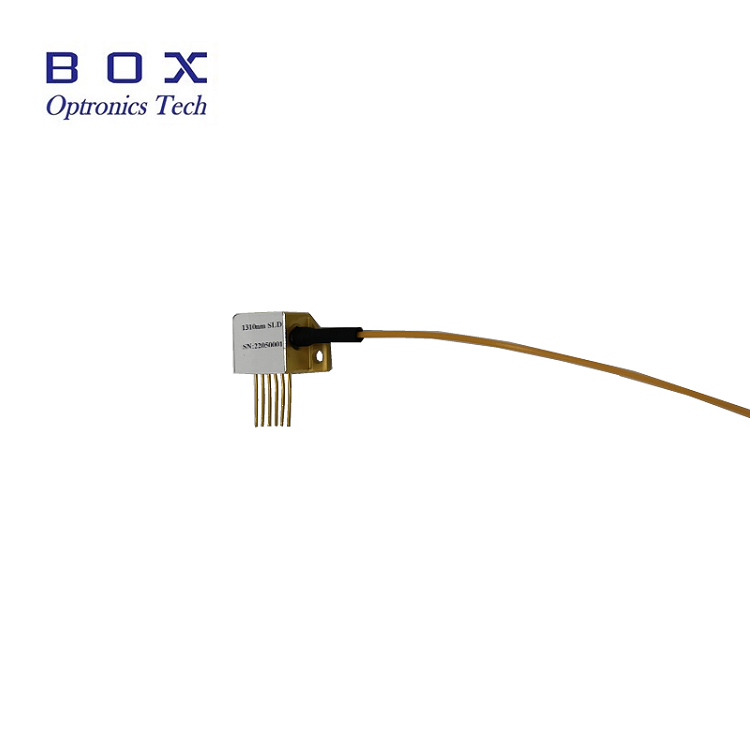

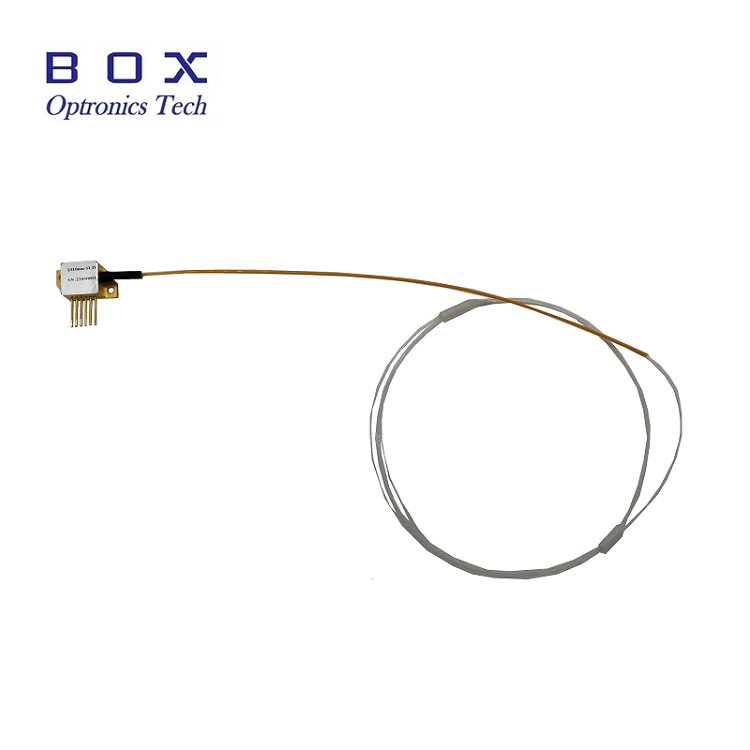

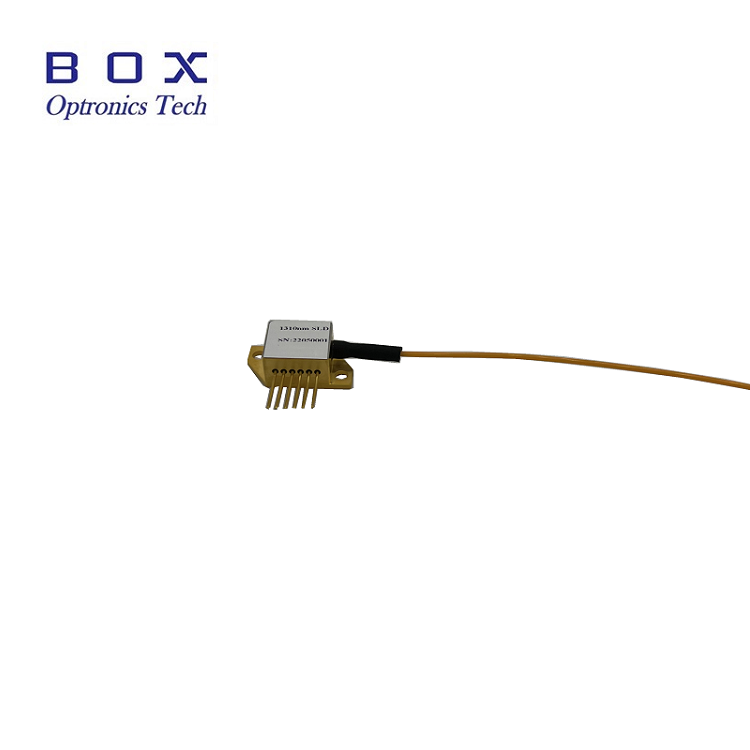

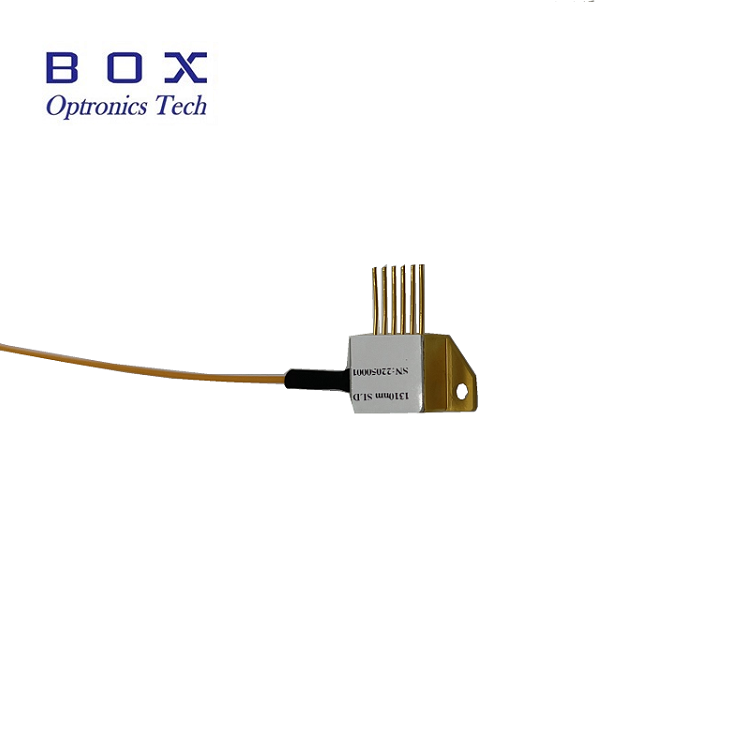

BoxOptronics provide 1310nm 1mW superluminescent diodes SLD mini package, This SLD is built into a 6-pin small package with an integrated thermoelectric cooler (TEC) and thermistor to ensure output stability. The output is coupled into an SM or PM fiber. SLDs are applied in situations where a smooth and broadband optical spectrum (i.e. low temporal coherence), combined with high spatial coherence and relatively high intensity, is required.
BoxOptronics provide 1310nm 1mW superluminescent diodes SLD mini package, This SLD is built into a 6-pin small package with an integrated thermoelectric cooler (TEC) and thermistor to ensure output stability. The output is coupled into an SM or PM fiber.
SLDs are applied in situations where a smooth and broadband optical spectrum (i.e. low temporal coherence), combined with high spatial coherence and relatively high intensity, is required.
BoxOptronics provide 1310nm 1mW superluminescent diodes SLD mini package, This SLD is built into a 6-pin small package with an integrated thermoelectric cooler (TEC) and thermistor to ensure output stability. The output is coupled into an SM or PM fiber.
SLDs are applied in situations where a smooth and broadband optical spectrum (i.e. low temporal coherence), combined with high spatial coherence and relatively high intensity, is required.
6pin Butterfly Package;
With Thermoelectricity Cooler (TEC);
SMF or PMF Coupling;
3dB bandwidth of ＞35nm;
Excellent Reliability.
Optical Fiber Gyroscope;
Optical Fiber Sensor;
Optic Passive Module Test;
Optical Coherence Topography OCT;
Fiber communication.
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
| Center wavelength | λc | 1290 | 1310 | 1330 | nm | CW |
| Operating Current | ITH | - | 100 | 150 | mA | CW |
| Power in Fiber | PO | - | 1.0 | - | mW | CW, ITH=100mA |
| 3dB bandwidth | Δλ | 30 | 35 | - | nm | CW |
| Storage temperature | Ts | -55 | - | +85 | ℃ | |
| Operating case temperature | Top | -45 | - | +70 | ℃ | |
| Reverse Voltage | VCC | - | - | 2.0 | V | |
| Forward current | IF | - | - | 200 | mA | |
| Thermoelectric cooler voltage | V | - | - | 3.2 | V | |
| Thermoelectric cooler current | I | - | - | 1.2 | A | |
| Storage humidity | - | 5 | - | 85 | %RH | |
| Lead solder temperature | - | - | - | 260 | ℃ | |
| Lead solder time | - | - | - | 10 | S | |
| Tensile strength of pigtail | - | 1 | - | - | kgf | |
| Fiber bend radius | - | 30 | - | - | mm | |
| Spectrum modulation | - | - | 0.1 | 0.2 | dB | - |
| Extinction | ER | - | - | 1 | dB | CW |
| TEC Current | IC | - | - | 0.7 | A | TC =-45~+70℃ |
| TEC Voltage | VC | - | - | 3.0 | V | TC =-45~+70℃ |
| Thermistor resistance | Rth | 9.5 | 10 | 10.5 | KΩ | TC =25℃ |
| Thermistor B constant | B | - | 3950 | - | K | - |
| PIN | DESIGNATIONS |
| 1 | SLD Anode(+) |
| 2 | SLD Anode(-) |
| 3 | Thermistor |
| 4 | Thermistor |
| 5 | TEC Cooler(-) |
| 6 | TEC Cooler(+) |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: Box optronics can provide 1mW to 15mW versions for choice.
Q: What is the optical connector you requirement?A: Box optronics can customize the optical connector according the requirement for free.
