830nm Broadband SLED Superluminescent Diodes

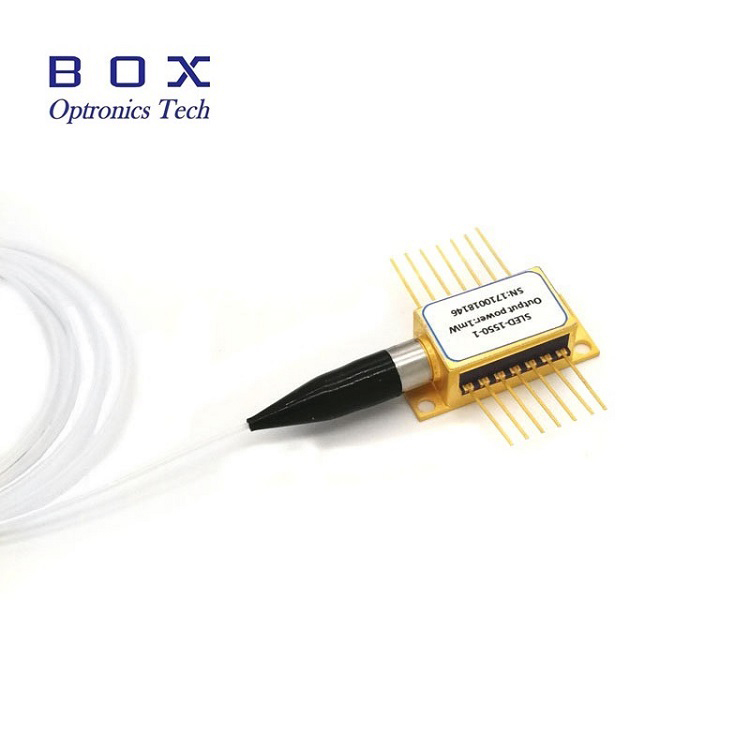

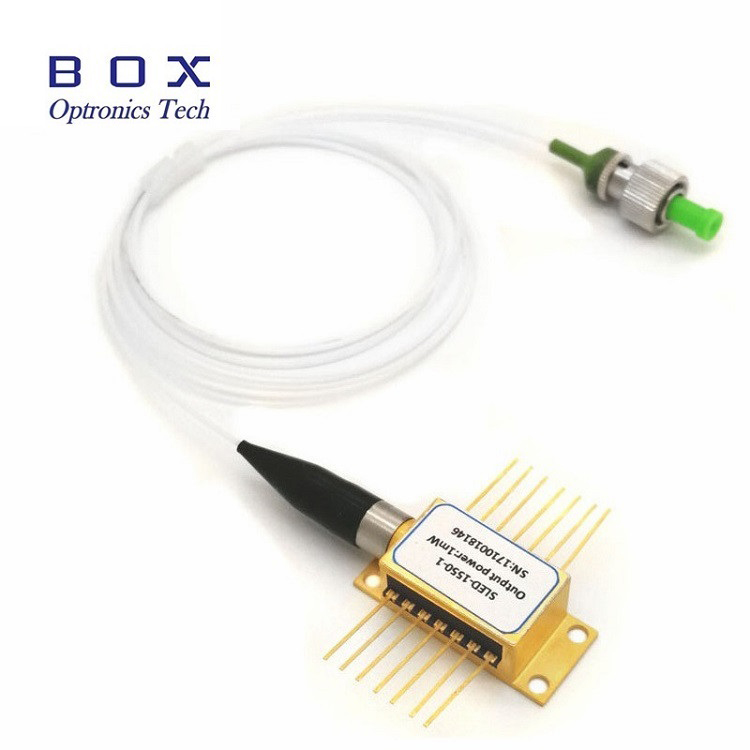

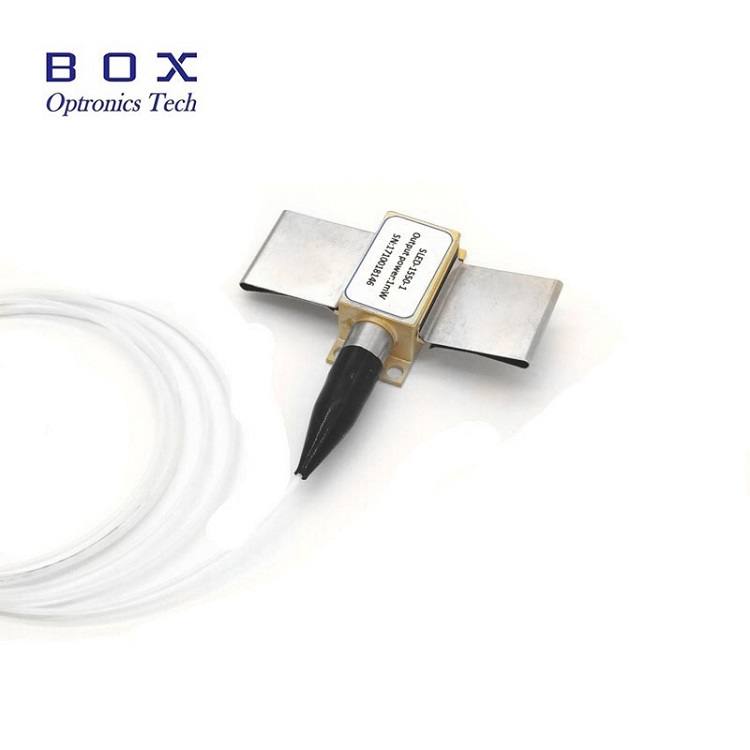

The 830nm Broadband SLED Superluminescent Diodes that operates in a true inherent superluminescent mode. This superluminescent property generates broader band at higher drive currents in contrast to other conventional SLED which are ASE-based, here high drive tends to give narrower band. Its low coherence reduces Rayleigh backscattering noise. Coupled with high power and large spectral width, it offsets photoreceiver noise and improves spatial resolution (in OCT) and measurand sensitivity (in sensors). The SLED is available in 14-pin butterfly package. It is compliance with the requirements of Bellcore Document GR-468-CORE.

The 830nm Broadband SLED Superluminescent Diodes that operates in a true inherent superluminescent mode. This superluminescent property generates broader band at higher drive currents in contrast to other conventional SLED which are ASE-based, here high drive tends to give narrower band. Its low coherence reduces Rayleigh backscattering noise. Coupled with high power and large spectral width, it offsets photoreceiver noise and improves spatial resolution (in OCT) and measurand sensitivity (in sensors). The SLED is available in 14-pin butterfly package. It is compliance with the requirements of Bellcore Document GR-468-CORE.

Center wavelength 830nm;

Output power 3mW or 5mW;

Cooled 14PIN Dual-In-Line (DIL) and Butterfly package;

Bandwith FWHM 26nm;

With external monitor photodiode;

FC/APC Connector.

Fiber Optic Gyroscope;

Optical Test Instrument;

Fiber Optic Sensors;

Fiber Optic Communications;

Optical Coherence Tomography;

Biomedical Imaging Device.

•

• PIN	DESIGNATIONS	PIN	DESIGNATIONS
  1	TEC（+）	14	TEC（-）
  2	Thermistor	13	Case Ground
  3	PD Anode	12	NC
  4	PD Cathode	11	SLD Cathode
  5	Thermistor	10	SLD Anode
  6	NC	9	NC
  7	NC	8	NC

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

A: Box optronics can customize the package according to your needs.

A: Box optronics can customize according to your requirements.
