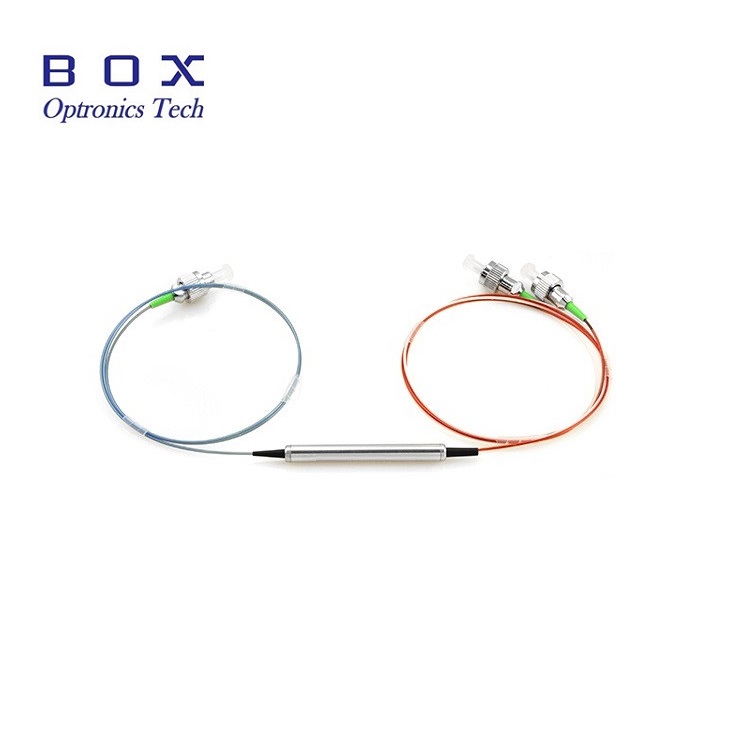

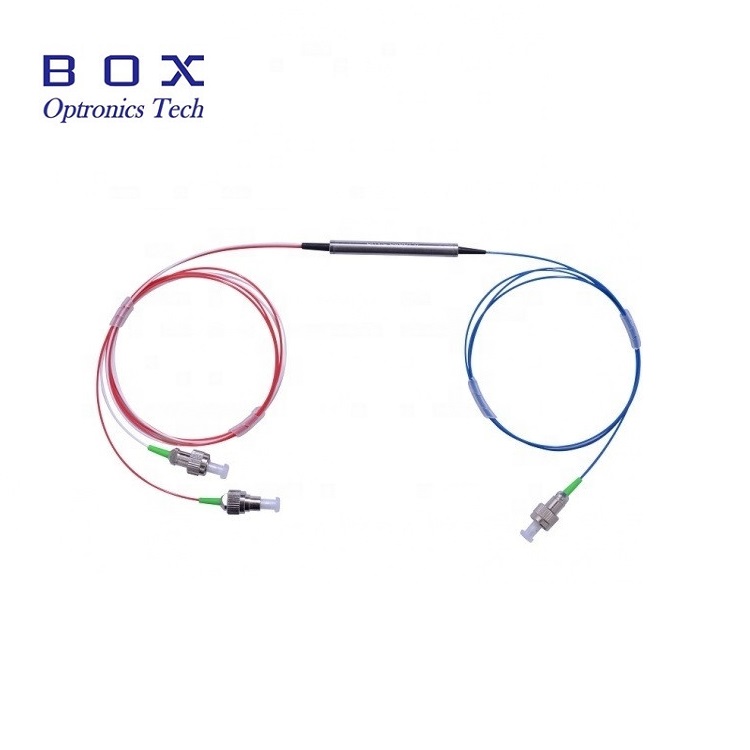

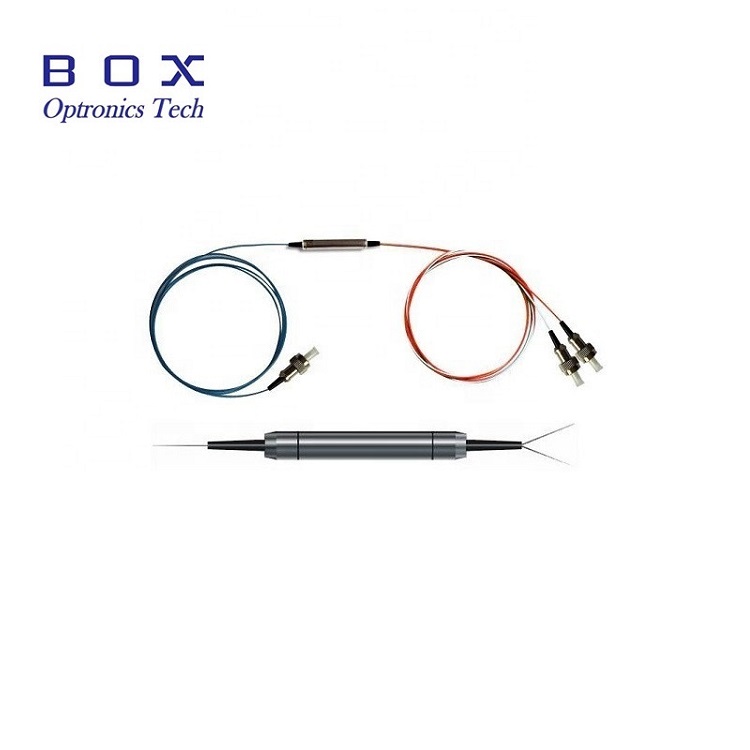

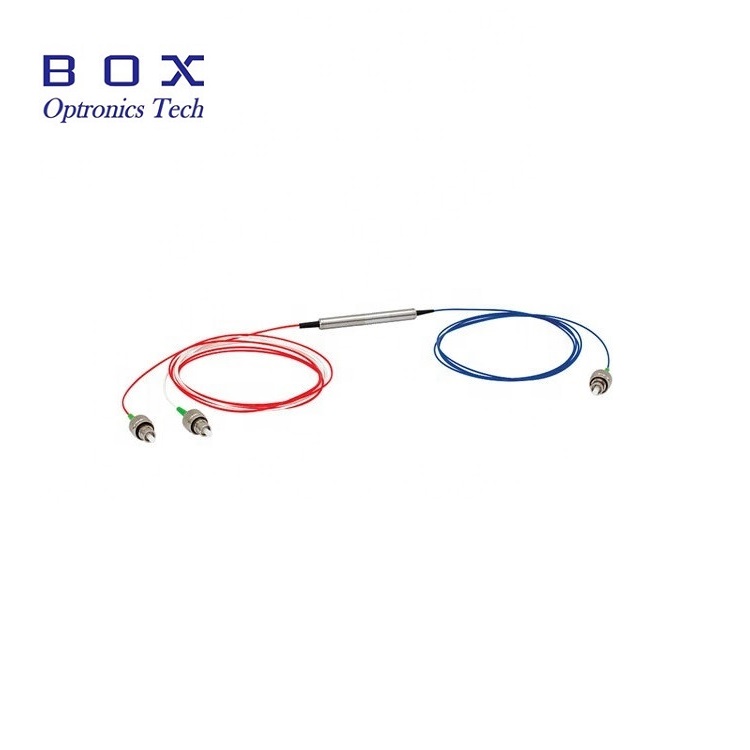

BoxOptronics' 1310 nm Single Mode SM Fiber Optic Circulators are available unterminated, with FC/PC connectors, or with FC/APC connectors. Our 1310 nm SM Fiber Optic Circulators have a maximum power handling of 500 mW (CW). The 1310 nm Single Mode SM Fiber Optic Circulators advanced micro optics design, it features low insertion loss, low polarization sensitivity, high isolation, and high stability. The excellent characteristics of this product make it an ideal choice for application in fiber amplifier systems, pump laser diodes, and optical fiber sensors.
BoxOptronics' 1310 nm Single Mode SM Fiber Optic Circulators are available unterminated, with FC/PC connectors, or with FC/APC connectors. Our 1310 nm SM Fiber Optic Circulators have a maximum power handling of 500 mW (CW).
The 1310 nm Single Mode SM Fiber Optic Circulators advanced micro optics design, it features low insertion loss, low polarization sensitivity, high isolation, and high stability. The excellent characteristics of this product make it an ideal choice for application in fiber amplifier systems, pump laser diodes, and optical fiber sensors.
Low insertion loss;
Low PDL;
High isolation;
High stability and reliability.
EDFA, DWDM and OTDR;
Bi-directional transmission system.
| Parameter | Unit | P Grade | A Grade | |
| Configuration | - | Port 1 to Port 2 to Port 3 | ||
| Operating Wavelength | nm | 1310 +/- 30 | ||
| Channel Peak Isolation | dB | >50 | ||
| Channel min Isolation | dB | >40 | ||
| Insertion Loss | Typical | dB | 0.6 | 0.8 |
| Maximum | dB | 0.8 | 1.0 | |
| Channel Crosstalk | dB | >50 | ||
| PDL | dB | <0.15 | ||
| Return Loss | dB | ≥50 | ||
| PMD | ps | ≤0.1 | ||
| Operating Temperature | ℃ | 0~+70 | ||
| Storage Temperature | ℃ | -40~+85 | ||
| Fiber Type | - | Corning SMF -28e | ||
| Fiber Length | m | 1m or Specify | ||
| Dimension | mm | Φ5.5xL50 | ||
| Power Handing | mW | 500 | ||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: Box optronics offer 1064nm 1310nm 1550nm fiber optical circulator.
Q: What is the optical connector you requirement?A: Box optronics can customize the optical connector according the requirement for free.
