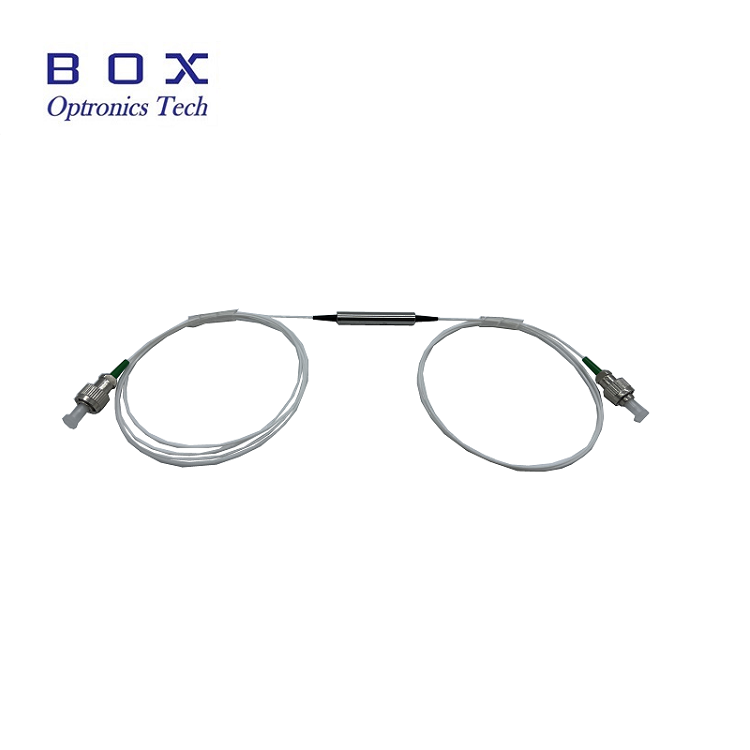

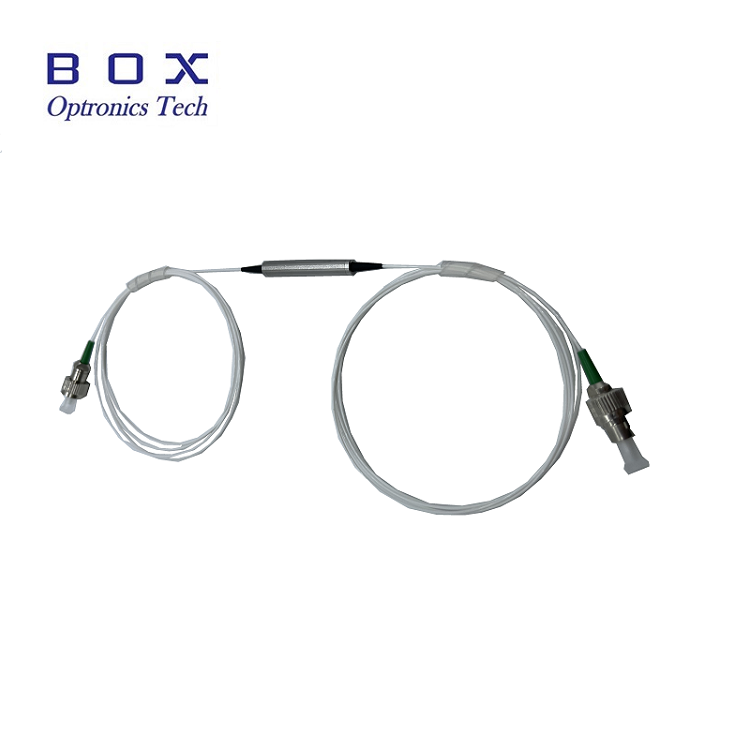

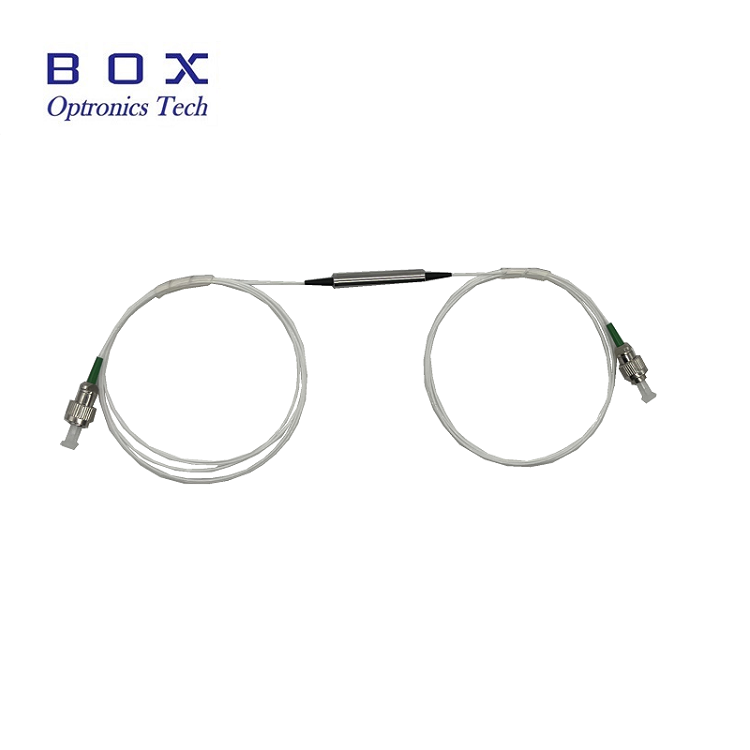

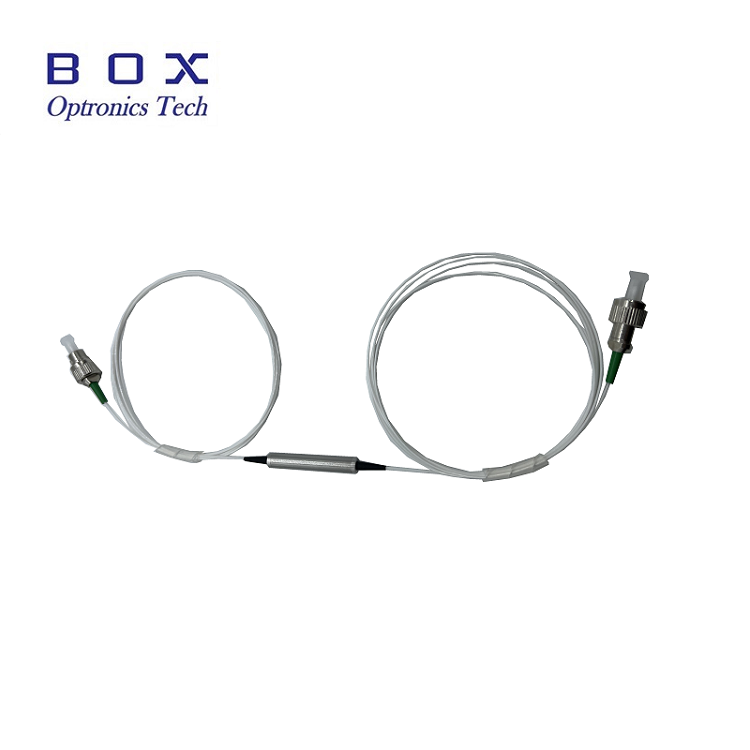

BoxOptronics 1060nm 1480nm polarization independent Optical Isolator is a fiber-coupled in-line polarization-independent isolator that transmits all polarized light (not just the light polarized in a specific direction) efficiently in one direction but block transmission in the opposite direction, It is widely use in protect against reflections, which can corrupt some measurements or damage lasers and amplifiers. This 1060nm 1480nm polarization independent Optical Isolator can be single or double/dual stage depending on the degree of required optical isolation of the propagating light.
BoxOptronics 1060nm 1480nm polarization independent Optical Isolator is a fiber-coupled in-line polarization-independent isolator that transmits all polarized light (not just the light polarized in a specific direction) efficiently in one direction but block transmission in the opposite direction, It is widely use in protect against reflections, which can corrupt some measurements or damage lasers and amplifiers. This 1060nm 1480nm polarization independent Optical Isolator can be single or double/dual stage depending on the degree of required optical isolation of the propagating light.
Low insertion loss;
High isolation;
High stability and reliability.
EDFA, DWDM and Raman amplifiers;
transmitters and other fiber optic communication equipments.
| Parameter | Unit | P Grade | |||
| Operating Wavelength | nm | 1060 | 1480 | ||
| Type | - | Single Stage | Dual Stage | Single Stage | Dual Stage |
| Typ. Isolation | dB | 40 | 55 | 41 | 55 |
| Min. Isolation | dB | 30 | 45 | 31 | 45 |
| Typ. Insertion Loss | dB | 1.5 | 2.4 | 0.4 | 0.5 |
| Max. Insertion Loss | dB | 2.0 | 3.4 | 0.6 | 0.7 |
| Return loss(In/Out) | dB | ≥50 | ≥50 | ≥65/60 | ≥65/60 |
| PDL | dB | ≤0.15 | ≤0.15 | ≤0.05 | ≤0.05 |
| PMD | ps | 0.20 | 0.05 | 0.20 | 0.05 |
| Bandwidth | nm | ±15 | ±15 | ±15 | ±30 |
| Operating Temperature | ℃ | -5~+75 | |||
| Storage Temperature | ℃ | -40~+85 | |||
| Fiber Type | - | Corning Hi1060 | Corning SMF -28e | ||
| Fiber Length | m | 1m or Specify | |||
| Dimension | mm | Φ5.5xL35 | |||
| Power Handing | mW | 300 | |||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: Box optronics offer 980nm 1060nm 1310nm 1550nm fiber optical isolators.
Q: What is the optical connector you requirement?A: Box optronics can customize the optical connector according the requirement for free.
