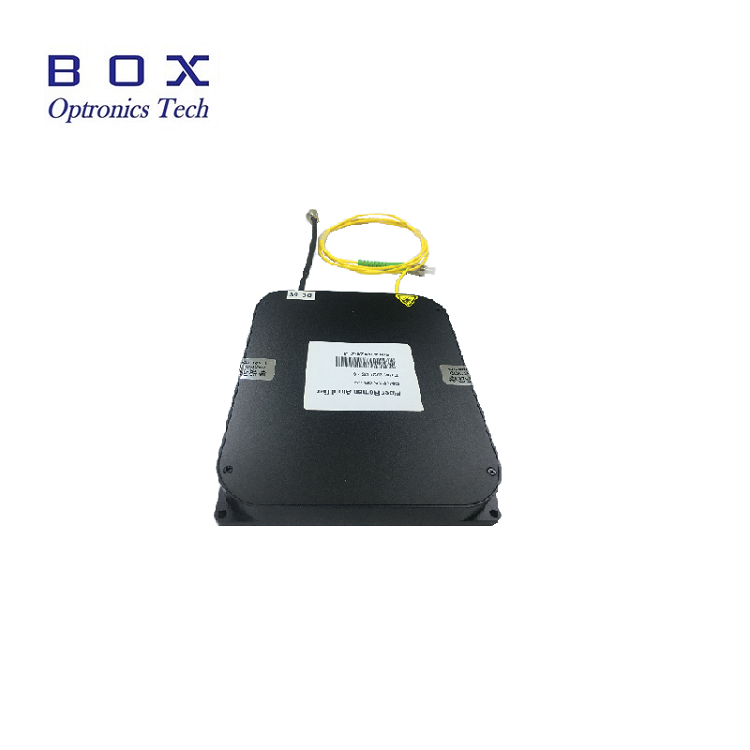

Ultra-narrow Linewidth 3khz 1550nm Fiber Laser Module
  • Ultra-narrow Linewidth 3khz 1550nm Fiber Laser ModuleUltra-narrow Linewidth 3khz 1550nm Fiber Laser Module
  • Ultra-narrow Linewidth 3khz 1550nm Fiber Laser ModuleUltra-narrow Linewidth 3khz 1550nm Fiber Laser Module
  • Ultra-narrow Linewidth 3khz 1550nm Fiber Laser ModuleUltra-narrow Linewidth 3khz 1550nm Fiber Laser Module
  • Ultra-narrow Linewidth 3khz 1550nm Fiber Laser ModuleUltra-narrow Linewidth 3khz 1550nm Fiber Laser Module

Ultra-narrow Linewidth 3khz 1550nm Fiber Laser Module

Ultra-narrow Linewidth 3khz 1550nm Fiber Laser Module

Send Inquiry

Product Description

1. Introduction of Ultra-narrow Linewidth 3khz 1550nm Fiber Laser Module

Ultra-narrow Linewidth 3khz 1550nm Fiber Laser Module

2. Product Feature of Ultra-narrow Linewidth 3khz 1550nm Fiber Laser Module

Spectral linewidth ≤ 3KHz;

DFB resonator structure;

High frequency stability, no mode hopping;

Module shockproof design.

3. Application of Ultra-narrow Linewidth 3khz 1550nm Fiber Laser Module

Laser seed source;

Acoustic sensor, hydrophone;

Optical fiber distributed sensing;

Coherent optical communication.

4. Optical-Electrical Characteristic of Ultra-narrow Linewidth 3khz 1550nm Fiber Laser Module

Parameters Unit Values Notes
Operating wavelength nm 1550±0.5 1545~1560nm Customizable
Spectral linewidth KHz <3 Customizable
Side Mode Suppression Ratio dB >50
Center frequency instability MHz <±25
Output power mW 50 Non-adjustable
Power instability (Short-term 15mins) dB ≤ ±0.02
Power instability (Long-term 8hours) dB ≤ ±0.05
Polarization state - Linear polarization
Fiber type - SMF-28e/PM1550 fiber Customizable
Pigtail Connector Type - FC/APC Customizable
Dimensions mm 260(W)×320(D)×120(H) Benchtop
72(W)×126.5(D)×25.5(H) Module
Power supply V 100~240V AC, <30W Benchtop
5V DC, <15W Module
Communication Interface - DB9 Female(RS232) -

5. Typical Characteristic Curve of Ultra-narrow Linewidth 3khz 1550nm Fiber Laser Module

Ultra-narrow Linewidth 3khz 1550nm Fiber Laser Module

Ultra-narrow Linewidth 3khz 1550nm Fiber Laser Module

6. Deliver,Shipping And Serving of Ultra-narrow Linewidth 3khz 1550nm Fiber Laser Module

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

Ultra-narrow Linewidth 3khz 1550nm Fiber Laser Module

7. FAQ

Q: What is the requirement for the output power?

A: We have 10dBm 100dBm options, we can also customize according to your requirement.

Q: About the package dimension, do you have any requirement?

A: We have the module type and benchtop for choice.
