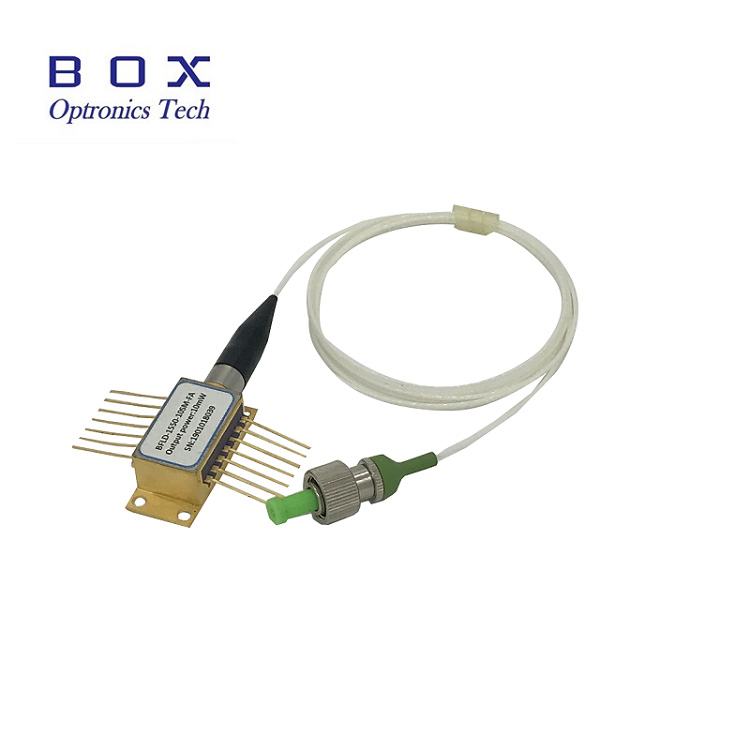

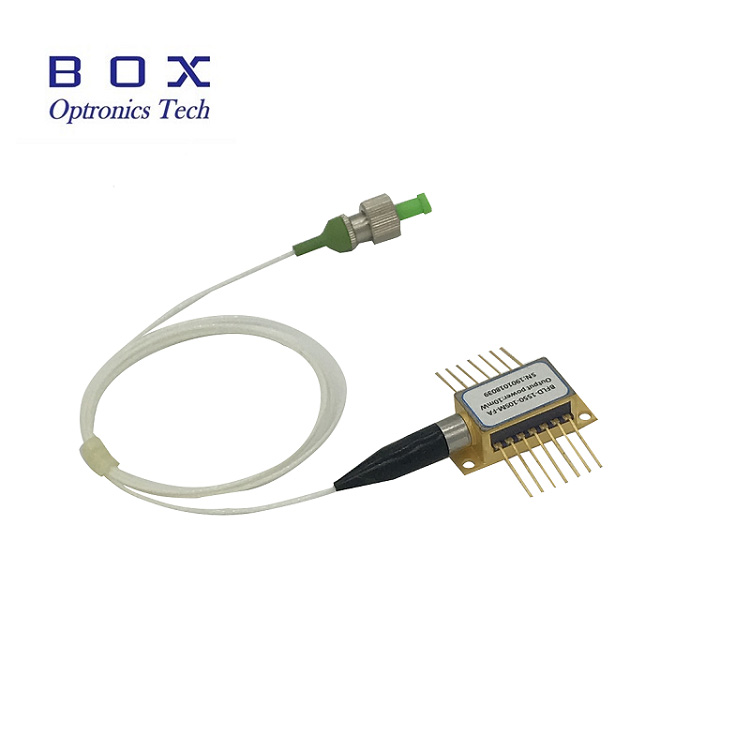

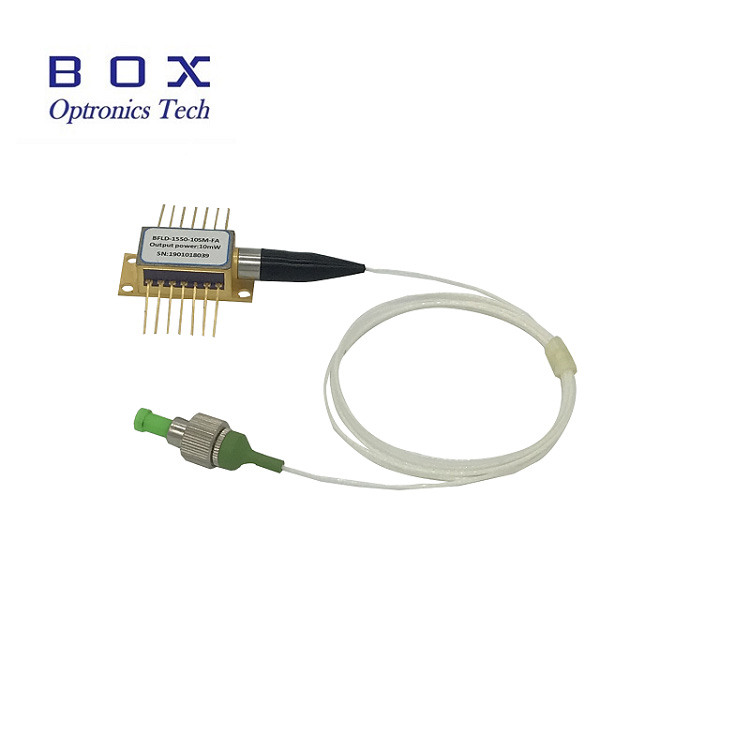

The DWDM 10mW DFB Butterfly Laser Diode is a high performance DFB laser diode. The center wavelengths are at DWDM wavelength grid (ITU grid) with 100GHz channel spacing. An InGaAs MQW (multi-quantum well) DFB (distributed feedback) laser chip is hermetically sealed inside a 14-pin butterfly package, fitted with thermistor, thermoelectric cooler (TEC), monitor photodiode and built-in optical isolator. This laser module has 2.5Gbps direct modulation bit rate. This product can be used in various OC-48 or STM-16 systems.
The DWDM 10mW DFB Butterfly Laser Diode is a high performance DFB laser diode. The center wavelengths are at DWDM wavelength grid (ITU grid) with 100GHz channel spacing. An InGaAs MQW (multi-quantum well) DFB (distributed feedback) laser chip is hermetically sealed inside a 14-pin butterfly package, fitted with thermistor, thermoelectric cooler (TEC), monitor photodiode and built-in optical isolator. This laser module has 2.5Gbps direct modulation bit rate. This product can be used in various OC-48 or STM-16 systems.
The DWDM 10mW DFB Butterfly Laser Diode is a high performance DFB laser diode. The center wavelengths are at DWDM wavelength grid (ITU grid) with 100GHz channel spacing. An InGaAs MQW (multi-quantum well) DFB (distributed feedback) laser chip is hermetically sealed inside a 14-pin butterfly package, fitted with thermistor, thermoelectric cooler (TEC), monitor photodiode and built-in optical isolator. This laser module has 2.5Gbps direct modulation bit rate. This product can be used in various OC-48 or STM-16 systems.
10mW High output power;
1528.77~1610.06nm DWDM band Center Wavelengths (100GHz spacing);
DFB wavelength stabilized single mode laser.
Built-in optical isolator, monitor photodiode, thermo-electric cooler and thermistor.
Single mode fiber pigtail or PM fiber pigtail (optional).
LAN, WAN and metro networks;
C/DWDM systems;
DWDM OC-48/STM-16 systems;
Extended reach (100km) or very long reach (170km) direct modulation links;
Metro DWDM;
RF over fiber systems;
Laser sources.
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Center Wavelength | λc | TL=15～35℃ CW | λn-0.5 | λn | λn+0.5 | nm |
| Optical Output Power | PO | - | 10 | - | - | mW |
| Threshold Current | ITH | - | - | 10 | 35 | mA |
| Slope Efficiency | ƞ | CW output power 5mW | 0.05 | 0.08 | 0.2 | mW/mA |
| Operating current | Iop | PO= 10 mW (CW) | - | 100 | 200 | mA |
| Laser Forward Voltage | VF | CW output power 10mW | - | 1.2 | 2.0 | V |
| Monitor Dark Current | ID | - | - | - | 0.1 | μA |
| Bandwidth(@-3dB) | BW | - | - | 2.5 | - | GHz |
| Side-mode Suppression Ratio | SMSR | CW | 35 | 40 | - | dB |
| Line Width (3dB full width) | LW |
Modulated at 2.5 Gbits/s at rated power |
- | 2 | - | MHz |
| Optical Isolation | - | -10 < TC < +70℃ | 30 | - | - | dB |
| Relative Intensity Noise | RIN | CW, output power 5mW | - | -145 | - | dB |
| TEC set temperature | Ts | - | 15 | - | 35 | ℃ |
| Input Impedance | ZIN | - | 22 | 25 | 28 | Ω |
| Thermistor Current | ITC | - | 10 | - | 100 | μA |
| Thermistor Resistance | RTH | TL = 25℃ | 9.5 | 10 | 10.5 | KΩ |
| TEC Current | ITEC | TL = 25℃, TC = 70℃ | - | 0.6 | 2.0 | A |
| TEC Voltage | VTEC | TL = 25℃, TC = 70℃ | - | 1.3 | 3.5 | V |
| TEC capacity | ΔT | Tc = 70℃ | - | - | 50 | ℃ |
| Thermistor temperature | - | - | - | - | 100 | ℃ |
| Wavelength Drift (EOL) | △λ |
Tested over 25-year lifetime |
- | - | ±0.1 | nm |
| Wavelength Temperature coefficient | Δλ/ΔT | TEC temperature at 15℃ to 35℃ | - | 0.09 | - | nm/℃ |
| Wavelength Current coefficient | Δλ/ΔΙ | - | - | 0.01 | - | nm/mA |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: Box optronics can provide many wavelengths corresponding to a variety of gas detection applications.
Q: What is the optical connector you requirement?A: Box optronics can customize the optical connector according the requirement for free.
