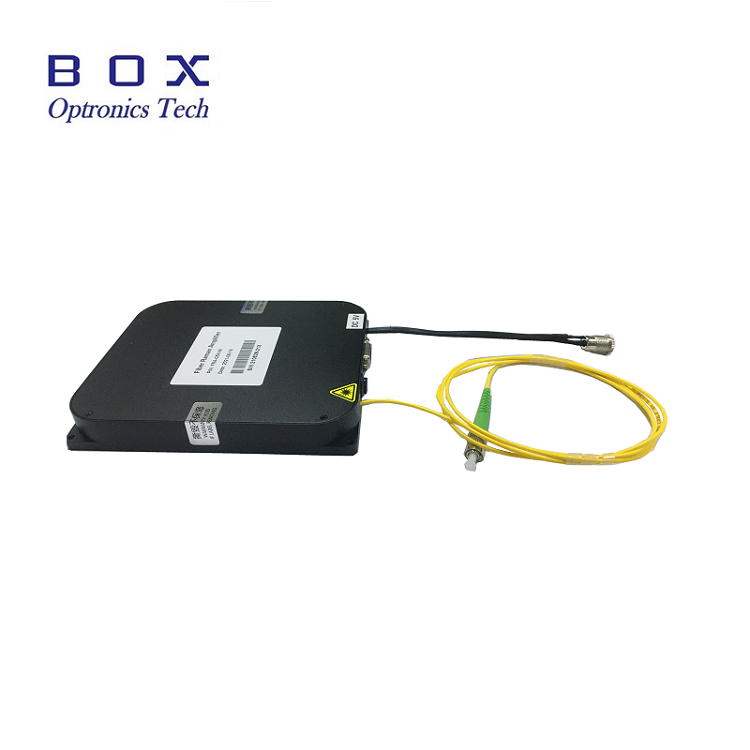

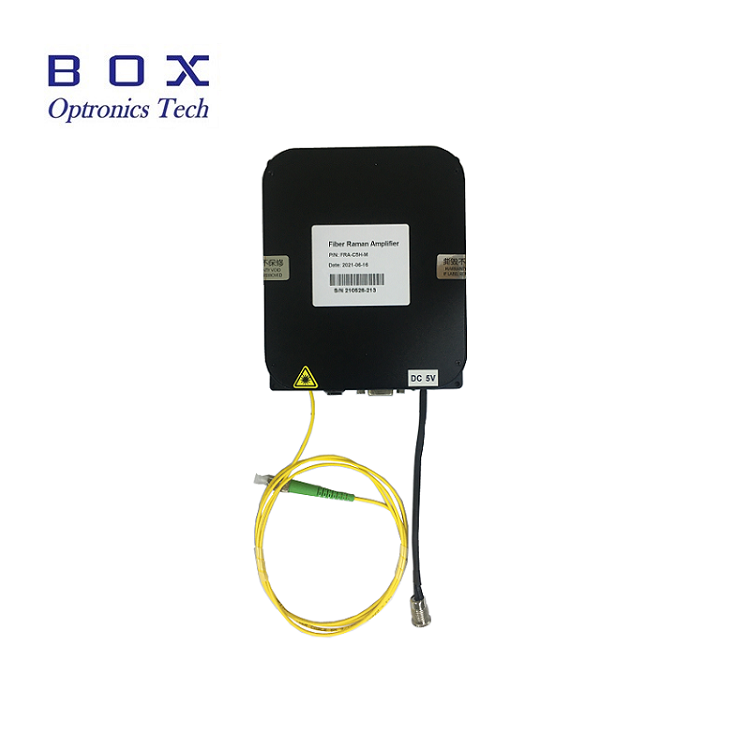

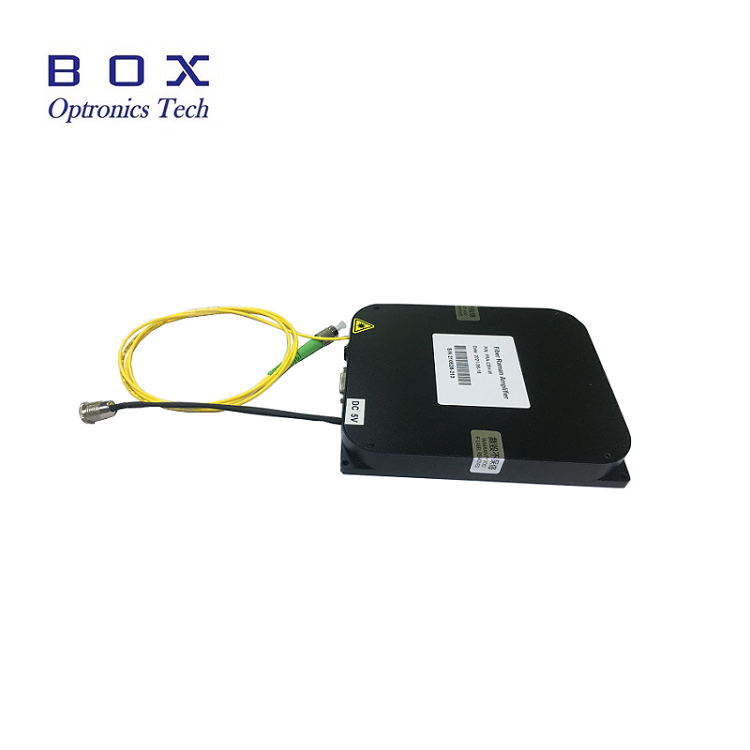

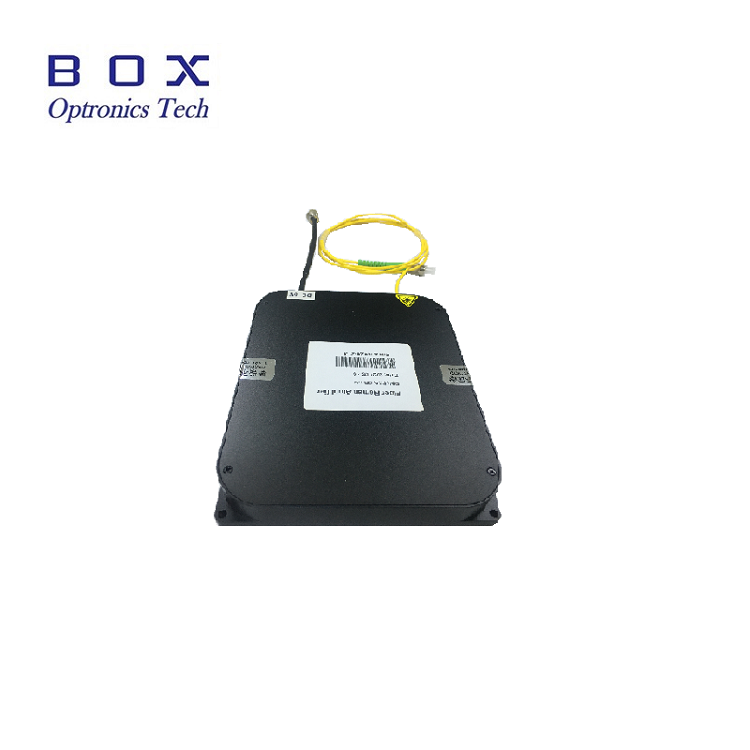

The C-Band Raman Amplifier Module is used to amplify optical signal in long distance optical transmission system and dense wavelength division multiplexing optical transmission system. It can amplify optical signal in C or L-band with high gain and low noise.
C-Band Raman Amplifier Module is used to amplify optical signal in long distance optical transmission system and dense wavelength division multiplexing optical transmission system. It can amplify optical signal in C or L-band with high gain and low noise.
Wide wavelength range;
High gain factor;
Low noise.
Long distance optical communication network;
Optical fiber sensor;
Fiber laser.
| Parameters | Unit | Values | Notes | |
| Operating wavelength | nm | 1528~1565 | 1570~1603 | Customized |
| Raman gain | dBm | -35~-25 | -45~-25 | |
| Gain flatness | dB | 3 | ||
| Pump wavelength | nm | 1425~1457 | 1470~1550 | |
| Pump power | mW | 300/500/1000/1400 | Customized | |
| Pump polarization DOP | - | 5% (Typ.), 10%(Max.) | ||
| Polarization dependent gain | dB | <0.2 | ||
| Polarization mode dispersion | ps | <0.5 | ||
| Input/Output isolation | dB | >35 | ||
| Noise figure | dB | 5.0 | ||
| Fiber type | - | SMF-28e | ||
| Connector | - | FC/APC | ||
| Operating mode | - | Automatic current control(ACC) | ||
| Dimensions | mm | 260(W)×280(D)×120(H) | Benchtop | |
| 125(W)×150(D)×20(H) | Module | |||
| Power supply | V | AC 110~240V, <30W@25℃ | Benchtop | |
| 5V DC, <15W | Module | |||
| Control mode | - | RS232 Serial communication | Module | |
| Communication Interface | - | DB25 Female | Module | |
| Operating temperature | ℃ | -5~ +55 | ||
| Operating humidity range | % | 0~70 | ||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: C-band or L band wavelength.
Q: What is the requirement for the output power?A: We have 300mW 500mW 1000mW 1400mW, we can also customize according to your requirement.
Q: About the package dimension, do you have any requirement?A: We have the module type and benchtop for choice.
