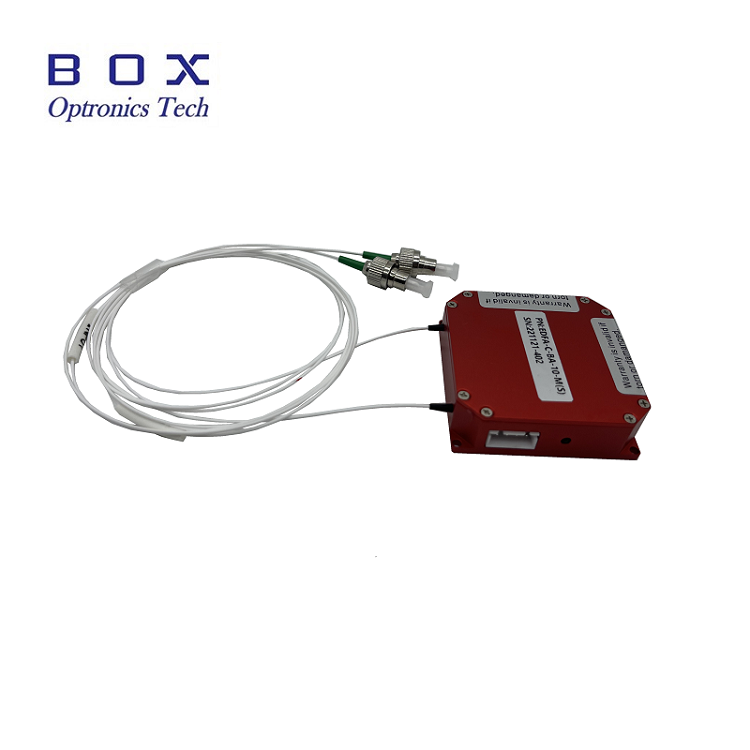

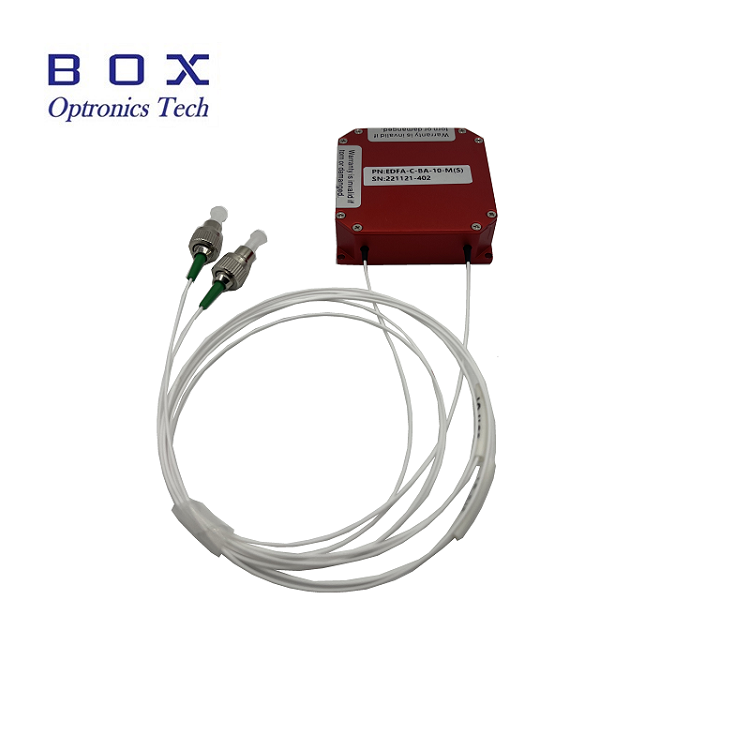

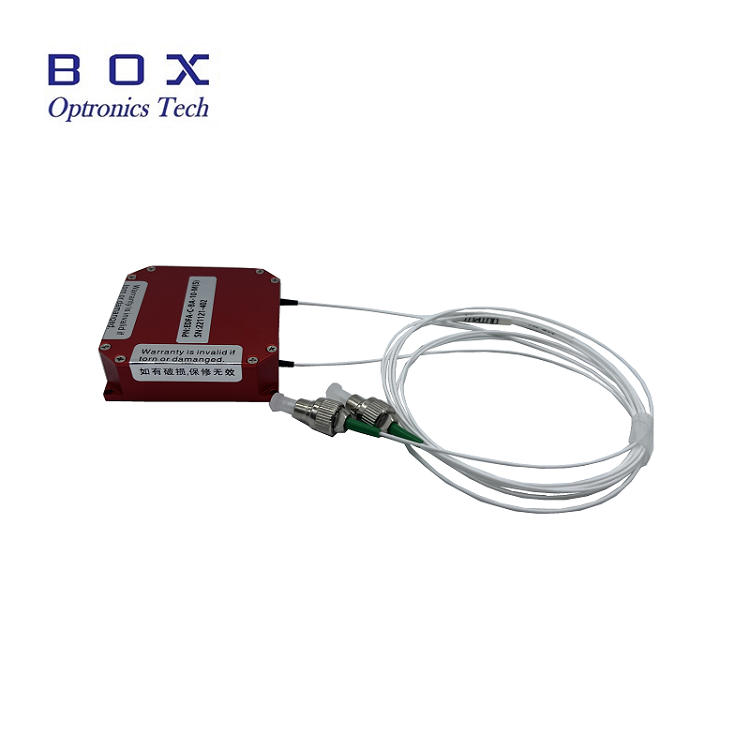

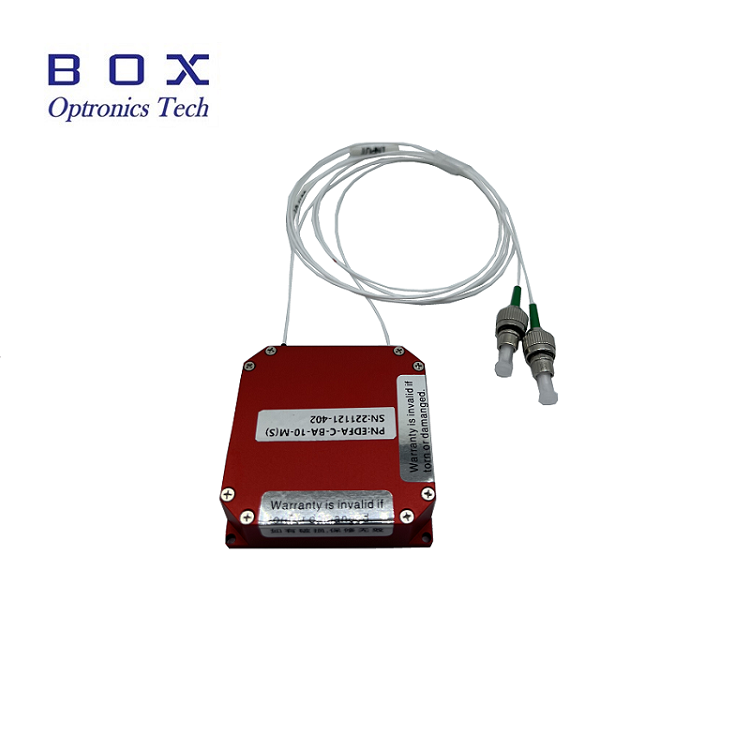

The C-band Micro Package EDFA Booster Fiber Amplifier Module provide a small size 50×50×15mm Micro Package, it can be used to improve the optical signal power in the range of - 6dbm to + 3dbm, and the saturation output power can be up to 20dbm, which can be used after the optical transmitter to improve the transmission power.
The C-band Micro Package EDFA Booster Fiber Amplifier Module provide a small size 50×50×15mm Micro Package, it can be used to improve the optical signal power in the range of - 6dbm to + 3dbm, and the saturation output power can be up to 20dbm, which can be used after the optical transmitter to improve the transmission power.
Wide wavelength range;
High output power;
Low noise.
Optical fiber communication;
Optical fiber sensor;
Fiber laser.
| Parameters | Unit | Values | Notes |
| Operating wavelength | nm | 1530~1565 | C-band |
| Input power | dBm | -6~+3 | |
| Saturated output power | dBm | 15/17/20 | @-3dBm Input |
| Noise figure | dB | 5.0 | @-3dBm Input |
| Gain flatness | dB | 3 | |
| Polarization dependent gain | dB | <0.3 | |
| Polarization mode dispersion | ps | 0.5 | |
| Input/Output isolation | dB | >35 | |
| Fiber type | - | SMF-28e | |
| Connector | - | FC/APC | |
| Operating mode | - | ACC/APC(1) | |
| Dimensions | mm | 50(W)×50(D)×15(H) | Module |
| Power supply | V | 5VDC, <10W | Module |
| Control mode | - | TTL Serial communication | Module |
| Communication Interface | - | XH2.54-4PIN | Module |
| Operating temperature | ℃ | -5~ +55 | |
| Operating humidity range | % | 0~70 |
(1) .ACC mode-automatic current control: EDFA pumping working current is set by the user and automatically locked by EDFA to achieve constant pumping current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is applicable to all EDFA models.
(2) APC mode-automatic power control: the user sets the EDFA signal light output power, PD automatically monitors and feeds back the output power, EDFA control and adaptive adjustment of the pump to stabilize the output signal. When the input optical power fluctuates, the APC mode will reduce the output power fluctuation as much as possible, which is suitable for power type and line type EDFA.
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: C-band, L band, and C+L band wavelengths.
Q: What is the requirement for the output power?A: Box optronics can customize according to your requirements.
Q: About the package dimension, do you have any requirement?A: We have two kind of options, module type and benchtop type.
