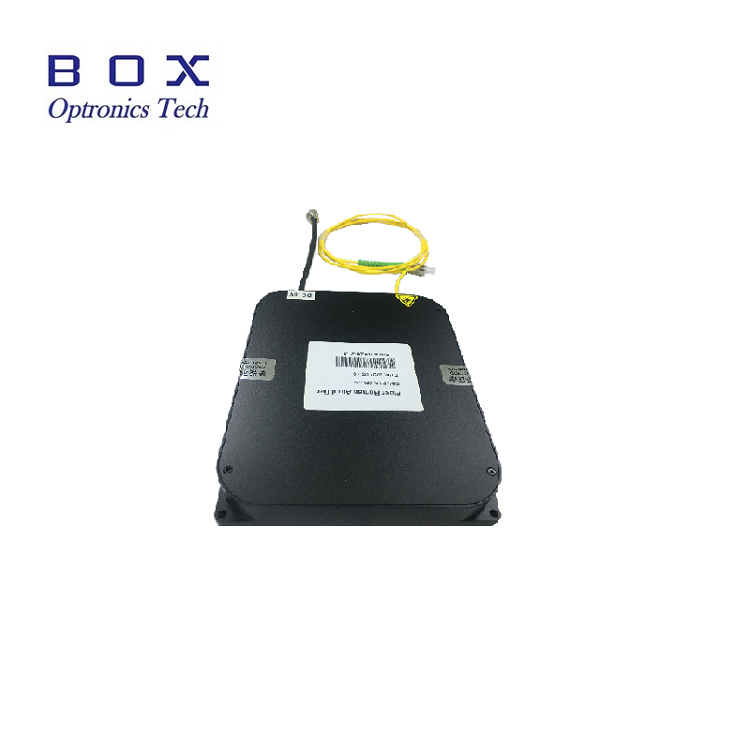

You can rest assured to buy C Band And L Band Fiber Raman Amplifier Module Benchtop Size from our factory and we will offer you the best after-sale service and timely delivery.
The Raman amplifier is used to amplify optical signal in long distance optical transmission system and dense wavelength division multiplexing optical transmission system. It can amplify optical signal in C or L-band with high gain and low noise.
Wide wavelength range;
High gain factor;
Low noise.
Long distance optical communication network;
Optical fiber sensor;
Fiber laser.
| Parameters | Unit | Values | Notes | |
| Operating wavelength | nm | 1528~1565 | 1570~1603 | Customized |
| Raman gain | dBm | -35~-25 | -45~-25 | |
| Gain flatness | dB | 3 | ||
| Pump wavelength | nm | 1425~1457 | 1470~1550 | |
| Pump power | mW | 300/500/1000/1400 | Customized | |
| Pump polarization DOP | - | 5% (Typ.), 10%(Max.) | ||
| Polarization dependent gain | dB | <0.2 | ||
| Polarization mode dispersion | ps | <0.5 | ||
| Input/Output isolation | dB | >35 | ||
| Noise figure | dB | 5.0 | ||
| Fiber type | - | SMF-28e | ||
| Connector | - | FC/APC | ||
| Operating mode | - | Automatic current control(ACC) | ||
| Dimensions | mm | 260(W)×280(D)×120(H) | Benchtop | |
| 125(W)×150(D)×20(H) | Module | |||
| Power supply | V | AC 110~240V, <30W@25℃ | Benchtop | |
| 5V DC, <15W | Module | |||
| Control mode | - | RS232 Serial communication | Module | |
| Communication Interface | - | DB25 Female | Module | |
| Operating temperature | ℃ | -5~ +55 | ||
| Operating humidity range | % | 0~70 | ||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: C-band or L band wavelength.
Q: What is the requirement for the output power?A: We have 300mW 500mW 1000mW 1400mW, we can also customize according to your requirement.
Q: About the package dimension, do you have any requirement?A: We have the module type and benchtop for choice.
