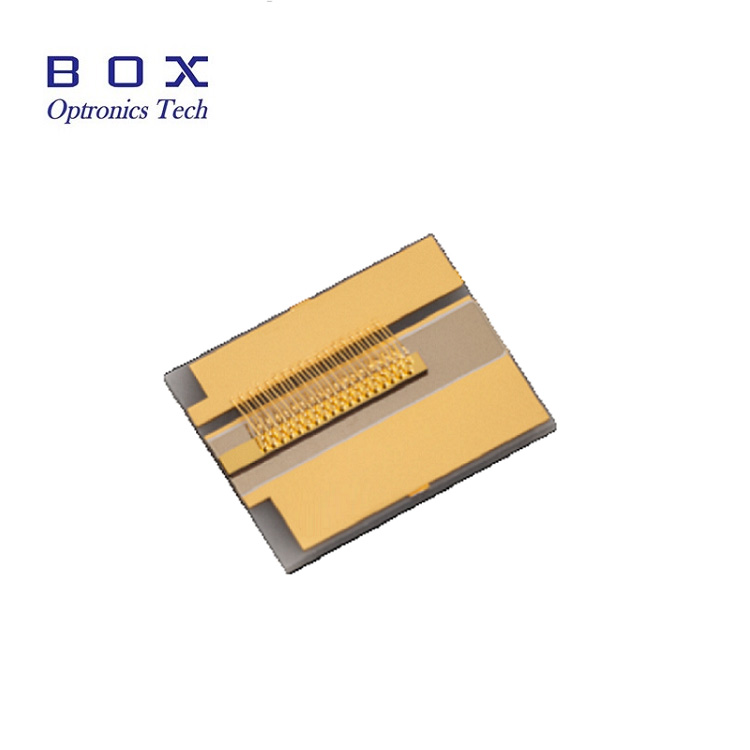

915nm 12W Chip on Submount COS Laser Diode

The 915nm 12W Chip on Submount COS Laser Diode, employing AuSn bonding and P Down package with multiple advantages of high reliability, stable output power, high power, high efficiency, long lifetime and high compatibility, and are widely applied in the market.

Send Inquiry

Product Description

1. Summary of 915nm 12W Chip on Submount COS Laser Diode

The 915nm 12W Chip on Submount COS Laser Diode, employing AuSn bonding and P Down package with multiple advantages of high reliability, stable output power, high power, high efficiency, long lifetime and high compatibility, and are widely applied in the market.

2. Introduction of 915nm 12W Chip on Submount COS Laser Diode

The 915nm 12W Chip on Submount COS Laser Diode, employing AuSn bonding and P Down package with multiple advantages of high reliability, stable output power, high power, high efficiency, long lifetime and high compatibility, and are widely applied in the market.

3. Features of 915nm 12W Chip on Submount COS Laser Diode

Other wavelengths 808nm,915nm,975nm optional;

High conversion efficiency;

Working life > 20000h;

Low dark current, Low capacitance;

High reliability, Long operation life.

4. Application of 915nm 12W Chip on Submount COS Laser Diode

Industry;

Pump source;

Illumination;

Medical treatment.

5. Electro-Optical Characteristics(T=25℃) of 915nm 12W Chip on Submount COS Laser Diode

Parameter Symbol Min. Typ. Max. Unit
Operation
Center wavelength λc 912 915 918 nm
Optical output power Po - 12 - W
Operation mode - CW -
Power modulation - - 100 - %
Electro Optical Data
Fast axis divergency (FWHM) θ⊥ - 29 - deg
Slow axis divergency (FWHM) θ‖ - 9 - deg
Spectral bandwidth (FWHM) Δλ - 4 - nm
Pulse wavelength λ 912 915 918 nm
Slope efficiency η 0.95 - - W/A
Conversion efficiency - 54 58 - %
Threshold current ITH - 0.7 1 A
Operating current IOP - 13 14.5 A
Operating voltage VOP - 1.65 1.85 V
Temperature characteristics(dλ/dT) - - 0.35 - nm/℃
Polarization - - TE - -
LD Operating temperature - - 25 -
Geometrical
Emitter width W - 95 - µm
Emitter pitch P 390 400 410 µm
Cavity length L 3990 4000 4010 µm
Thickness D 110 130 150 µm

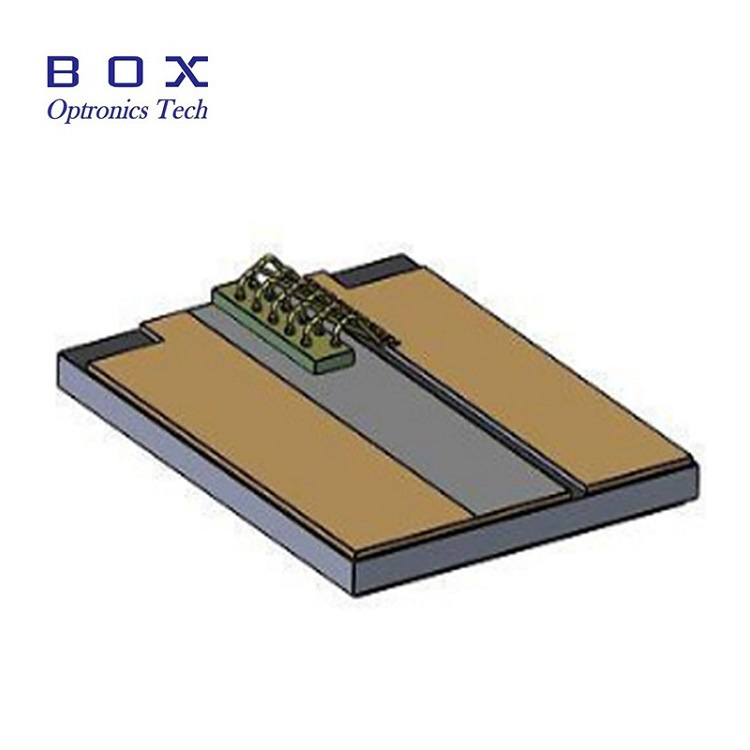

6. Package drawing&PIN-OUT Definition(Unit:mm) of 915nm 12W Chip on Submount COS Laser Diode

Note: the above figure is 4.5*4.5*0.5(mm) heat sink packaging. We can also provide 5.7*4.5*0.5(mm) heat sink packaging.

7. Deliver,Shipping And Serving of 915nm 12W Chip on Submount COS Laser Diode

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What wavelength would you like?

A: We have 808nm 830nm 880nm 915nm 975nm.

Q: What output power would you like?

A: Box Optronics can customize according to your requirements.
