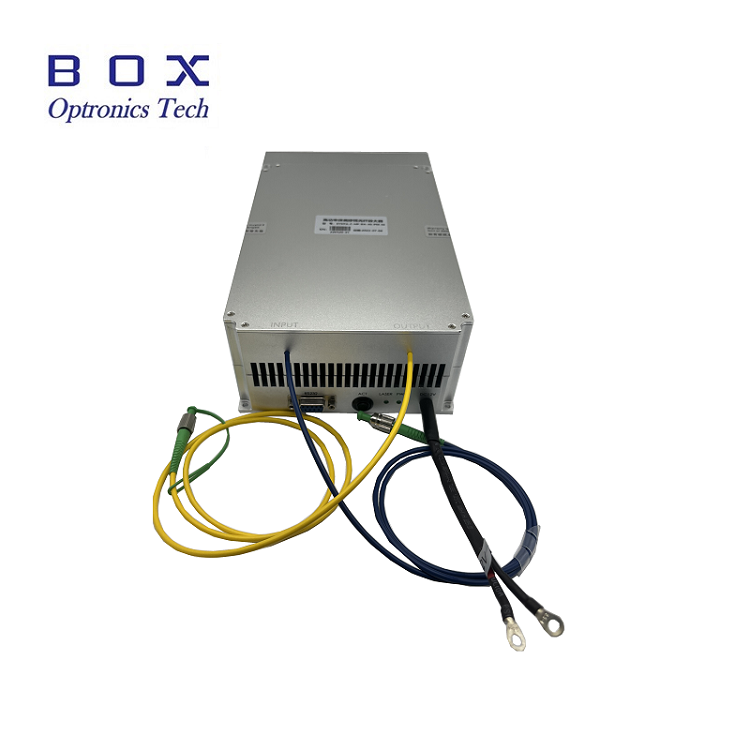

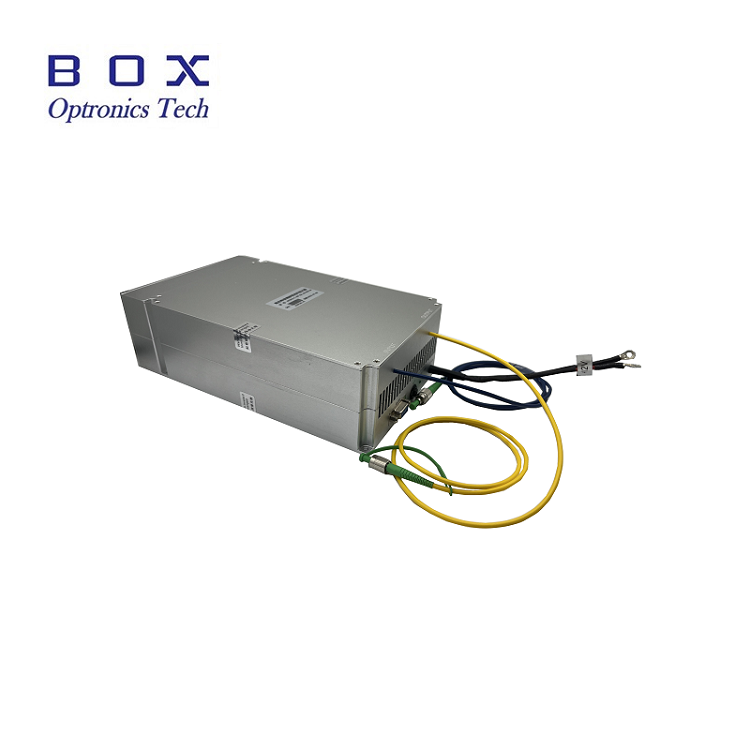

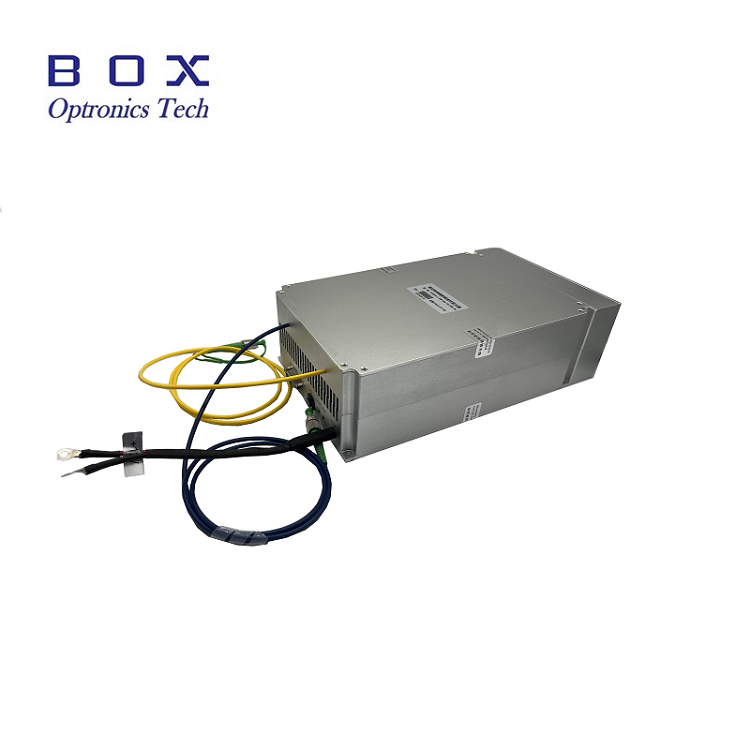

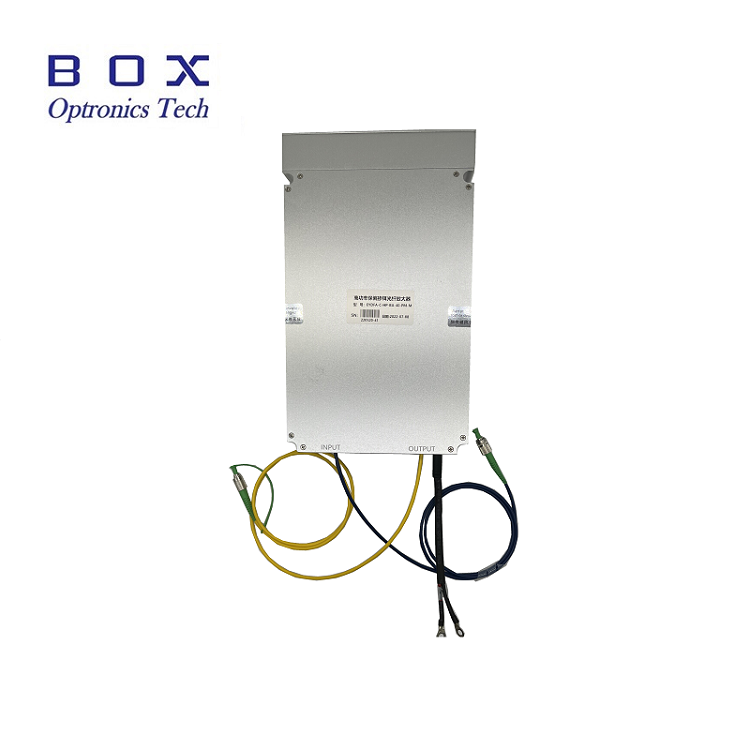

1920~2020nm TDFA Thulium doped Fiber Amplifier can be used to amplify 2um band laser signals in the power range of -10dBm~+10dBm. The saturated output power can reach up to 40dBm. It is often used to increase the transmission power of laser light sources.
1920~2020nm TDFA Thulium doped Fiber Amplifier can be used to amplify 2um band laser signals in the power range of -10dBm~+10dBm. The saturated output power can reach up to 40dBm. It is often used to increase the transmission power of laser light sources.
Wide wavelength range;
High output power;
Low noise.
Optical fiber communication;
Optical fiber sensor;
Fiber laser.
| Parameters | Unit | Values | Notes |
| Operating wavelength | nm | 1920~2020 | Customizable |
| Input power | dBm | -10~10 | |
| Saturated output power | dBm | 20/23/25/26/27/30/33/37/40 | @0dBm Input |
| Noise figure | dB | 5.0 | |
| Polarization dependent gain | dB | <0.3 | |
| Polarization extinction ratio | dB | 20 | PM980 |
| Input/Output isolation | dB | >35 | |
| Fiber type | - | SMF-1950 | |
| Connector | - | FC/APC | |
| Operating mode | - | ACC/APC(1) | |
| Dimensions | mm | 260(W)×280(D)×120(H) | Benchtop |
| 139(W)×235(D)×70(H) | Module | ||
| Power supply | V | AC 110~240V, <30W@25℃ | Benchtop |
| 12V DC, <60W | Module | ||
| Control mode | - | RS232 Serial communication | Module |
| Communication Interface | - | DB9 Female | Module |
| Operating temperature | ℃ | -5~ +55 | |
| Operating humidity range | % | 0~70 |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: 1920~2020nm, C-band, L band, and C+L band wavelengths.
Q: What is the requirement for the output power?A: Box optronics can customize according to your requirements.
Q: About the package dimension, do you have any requirement?A: We have two kind of options, module type and benchtop type.
