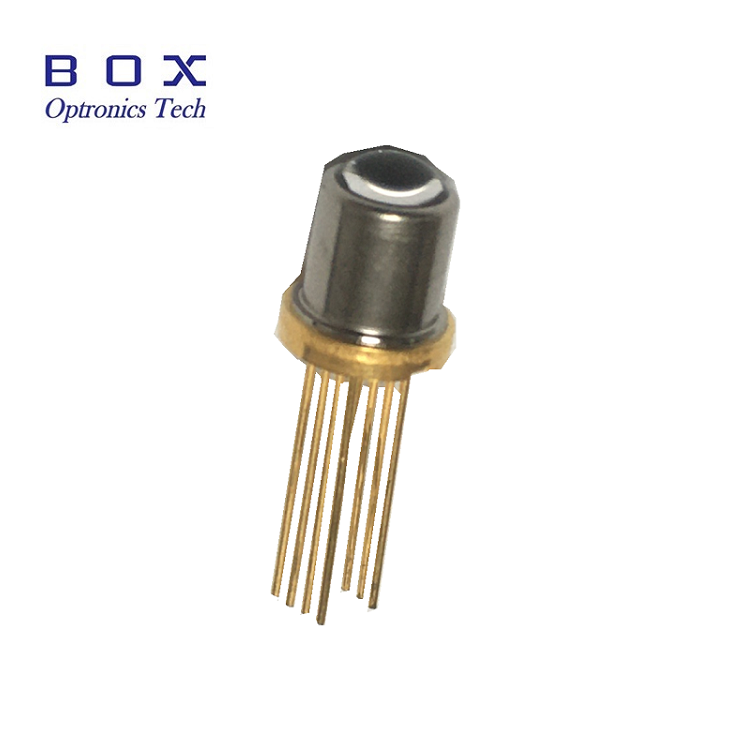

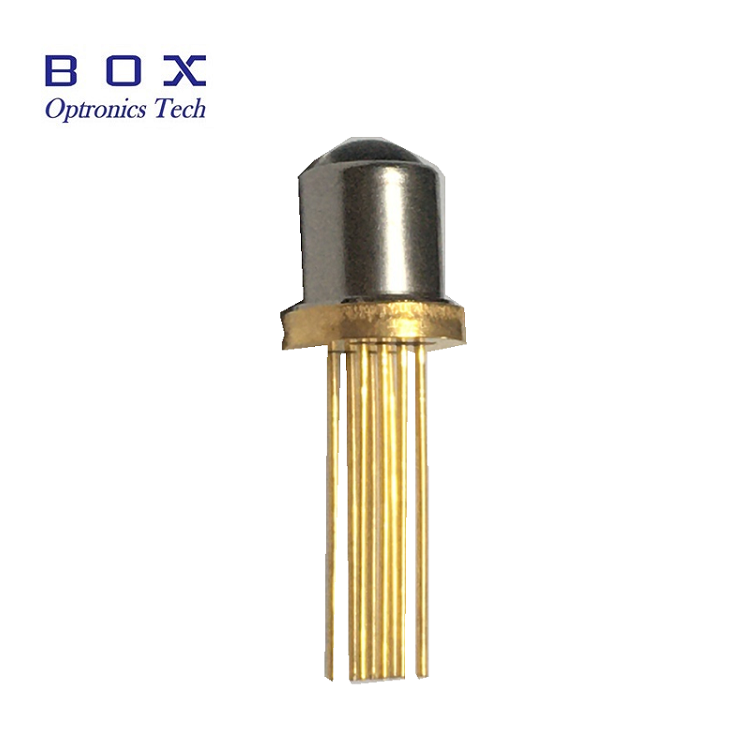

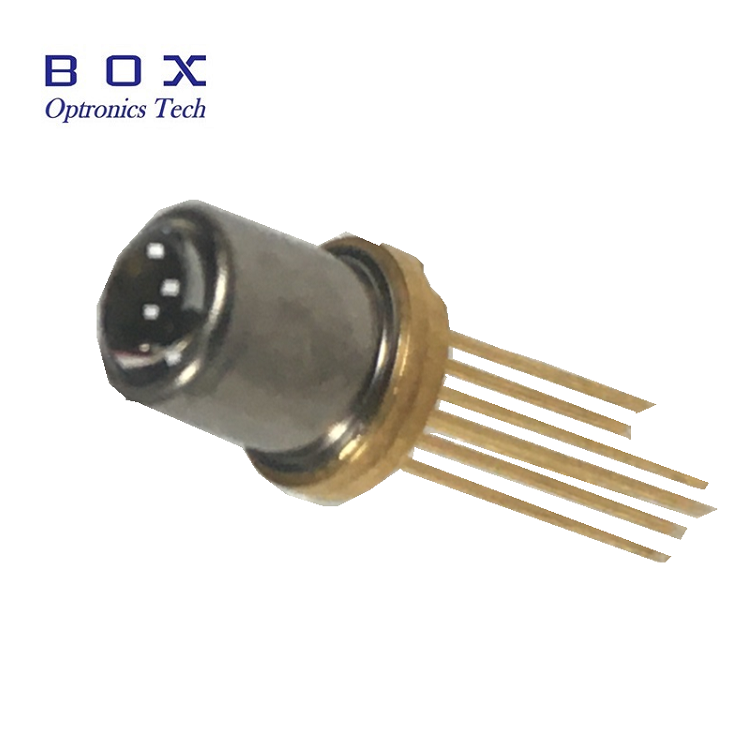

1653.7nm 18mW DFB TO-CAN Laser Diode For CH4 Sensing

The 1653.7nm 13mW DFB TO-CAN Laser Diode delivers reliable,Stable wavelength and high power output,With collimating lens. This single longitudinal mode laser is designed specifically for gas sensing applications targeting Methane(CH4). The narrow linewidth output improves application performance across a wide range of operating conditions.

The 1653.7nm 13mW DFB TO-CAN Laser Diode delivers reliable,Stable wavelength and high power output,With collimating lens. This single longitudinal mode laser is designed specifically for gas sensing applications targeting Methane(CH4). The narrow linewidth output improves application performance across a wide range of operating conditions.

Imported DFB chip, built-in TEC and NTC;

Stable wavelength and high power output;

Small package;

With collimating lens.

Laser gas analysis and detection system.

•

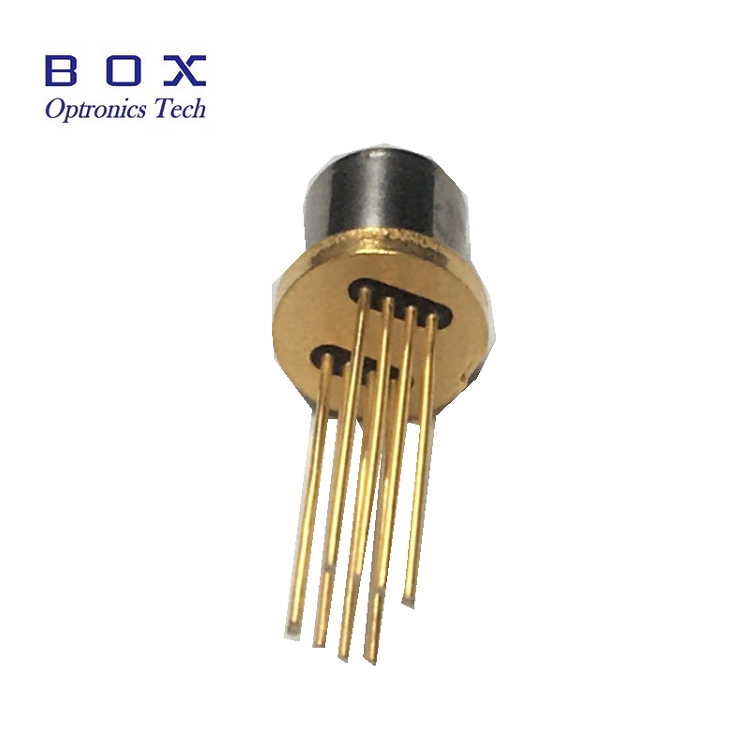

• PIN	Designations	PIN	Designations
  1	TEC(-)	8	TEC(+)
  2	Thermistor(+)	7	Thermistor(-)
  3	LD(+)	6	LD(-)
  4	PD(+)	5	PD(-)

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

A: A type, B type or other.

A: Box Optronics can customize according to your requirements.
