1560nm PM Femtosecond Pulse Fiber Laser Module has been widely used in the fields of optical frequency comb, supercontinuum spectrum, terahertz THz and so on. We can accept the customization of pulse width, power, repetition frequency and other parameters.
E-fiber series ultrafast lasers integrate the latest femtosecond laser technology, using high-performance rare earth fiber as the working medium, combining with high-precision dispersion compensation technology and active servo control system, to achieve stable output of 1.5um femtosecond pulse laser. It has been widely used in the fields of optical frequency comb, supercontinuum spectrum, terahertz THz and so on. We can accept the customization of pulse width, power, repetition frequency and other parameters.
Pulse width Min. 50fs;
Wavelength 1560nm;
Fully biased structure;
Power on self start;
Long term stable maintenance free.
Optical frequency comb;
Supercontinuum generation;
Seed laser;
Ultrafast laser phenomenon.
| Parameters | Unit | Values | Notes |
| Operating Wavelength | nm | 1560±10 | |
| Spectral width | nm | 20 | |
| Pulse width | fs | 50/100/200/500 | Customized |
| Output power | mW | 1~120 | Customized |
| Power instability | - | < 1% | |
| Repetitive frequency | MHz | 80 | Customized |
| Monopulse energy | nJ | >1 | |
| Laser polarization | - | Linear polarization | |
| Fiber type | - | Polarization maintaining fiber,FC/APC | |
|
Synchronous electrical signal interface |
- | SMA | |
| Preheating time | min | < 1 | |
| Operating temperature | ℃ | 5 ~ 45 | |

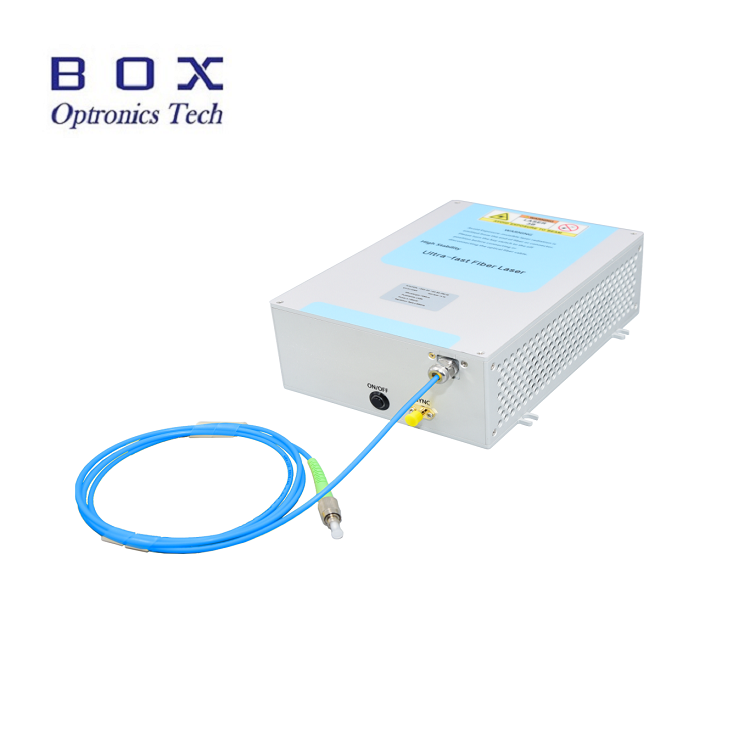

| Dimensions | mm | 260(W)×280(D)×120(H) | Benchtop |
| 200(W)×121(D)×55(H) | Module | ||
| Power supply | V | AC 110~240V | Benchtop |
| DC 5V/4A | Module |
AC curve of 50fs laser pulse (autocorrelation 76fs/Gaussian fit laser pulse width 47fs/120mW)
AC curve of 500fs laser pulse
Pulse sequence (1560nm / 75MHz / 50fs / 120mW)
Typical spectrum (1560nm / 75MHz / 50fs / 120mW)
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: we have 50fs, 100fs, 500fs options.
Q: What is the requirement for the output power?A: We have 1mW, 10mW, 50mW, 100mW, we can also our customize according to your requirement.
Q: About the package dimension, do you have any requirement?A: We have the module type and benchtop for choice.
