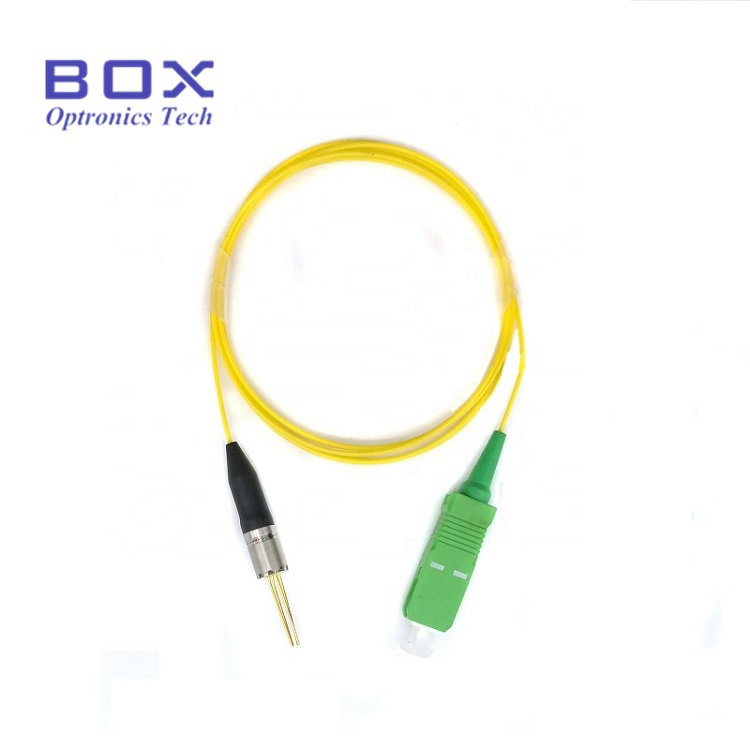

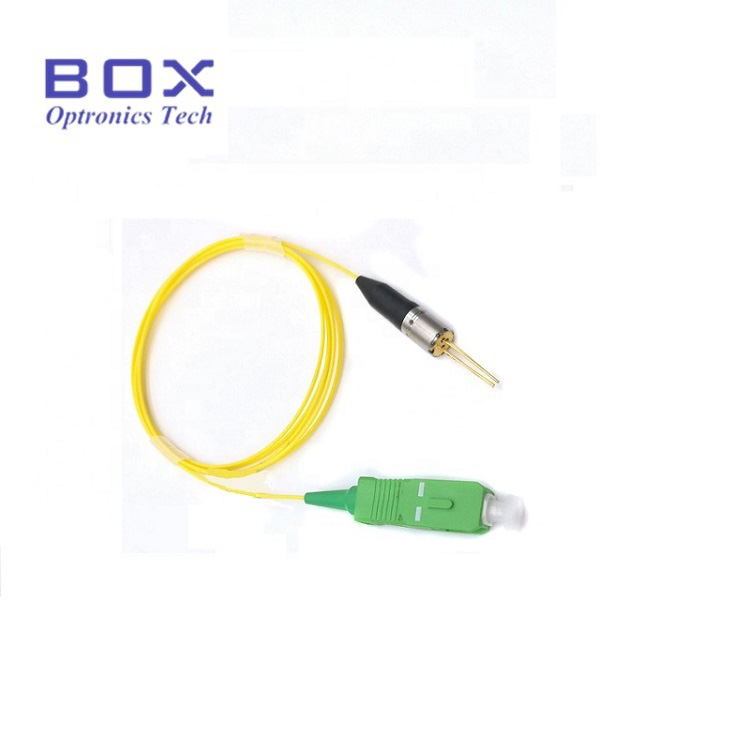

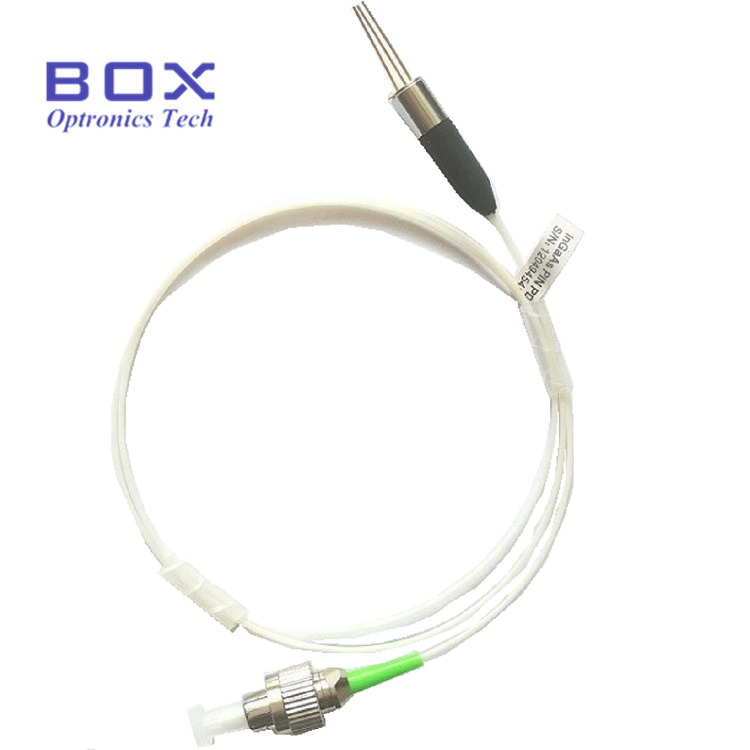

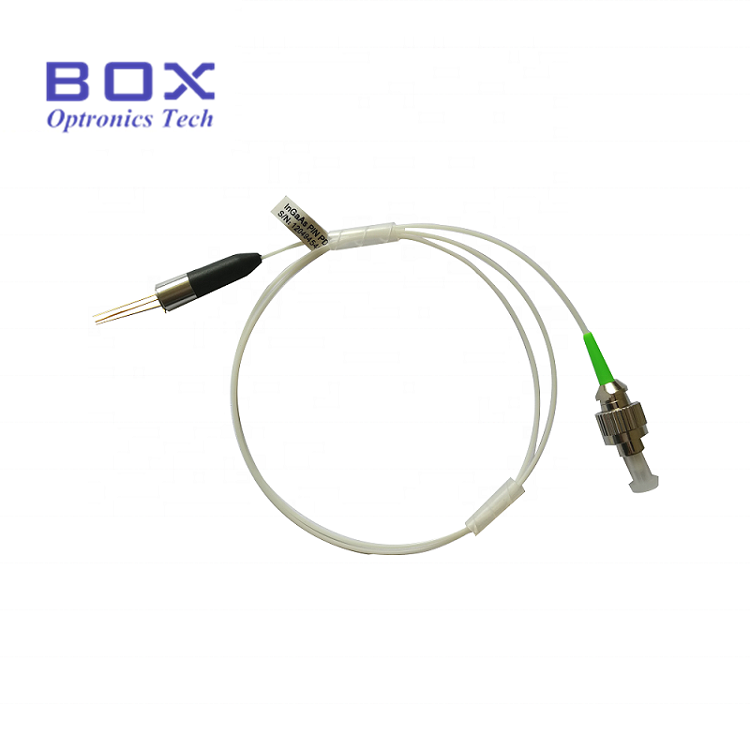

The 1550nm DFB Pigtail Laser Diode Module consists of Distributed Feedback (DFB) lasers, having a fiber pigtail precisely attached for optimum coupling efficiency. This 1550nm center wavelength version has a typical 1mW~4mW of output power and includes a back facet photodiode, and an integrated optical isolator. The 9/125 single mode fiber pigtail is terminated with an FC/APC or FC/PC style fiber optic connector. Applications include high-speed data and telecommunications systems and instrumentation, and optical instruments requiring a laser diode light source.
The 1550nm DFB Pigtail Laser Diode Module consists of Distributed Feedback (DFB) lasers, having a fiber pigtail precisely attached for optimum coupling efficiency. This 1550nm center wavelength version has a typical 1mW~4mW of output power and includes a back facet photodiode, and an integrated optical isolator. The 9/125 single mode fiber pigtail is terminated with an FC/APC or FC/PC style fiber optic connector. Applications include high-speed data and telecommunications systems and instrumentation, and optical instruments requiring a laser diode light source.
The 1550nm DFB Pigtail Laser Diode Module consists of Distributed Feedback (DFB) lasers, having a fiber pigtail precisely attached for optimum coupling efficiency. This 1550nm center wavelength version has a typical 1mW~4mW of output power and includes a back facet photodiode, and an integrated optical isolator. The 9/125 single mode fiber pigtail is terminated with an FC/APC or FC/PC style fiber optic connector. Applications include high-speed data and telecommunications systems and instrumentation, and optical instruments requiring a laser diode light source.
DFB wavelength stabilized single mode laser;
CW or pulsed operation;
Operating temperature range -20℃ to +75℃;
Wavelength/temperature coefficient 0.1nm/℃;
Built-in monitor photodiode;
Optional FC/PC or FC/APC connector.
CDMA/GSM transmission system;
WDM system;
CATV Return-path;
Other analog transmission system.
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Center wavelength | λC | PO= PF | 1540 | 1550 | 1560 | nm |
| Optical output power | PF | IF=ITH+20mA | 2 | - | - | mW |
| Threshold current | ITH | 4 | 10 | mA | ||
| Operating voltage | VF | - | - | 1.2 | 1.5 | pF |
| Rise time/Fall time | TR/TF | IF=ITH,PO=PF(20-80)% | - | - | 0.4 | ns |
| Monitor current | IM | PO= PF | 0.1 | - | 1 | mA |
| Capacitance | C | - | - | 10 | 15 | PF |
| Spectral width(-20dB) | Δλ | IF=ITH+20mA | 1.6 | 2.5 | nm | |
| Tracking error | TE | - | -1.0 | - | 1.0 | dB |
| Optical isolation | ISO | - | 30 | - | - | dB |
| 2Sec order inter-modulation distortion | IMD2 | - | - | - | -50 | dBc |
| 3rd order inter-modulation distortion | IMD3 | - | - | - | -60 | dBc |
| Relative intensity noise | RIN | - | - | - | -145 | dB/Hz |
| Side mode suppression ration | SMSR | PO = 2mW | 40 | - | - | dB |
